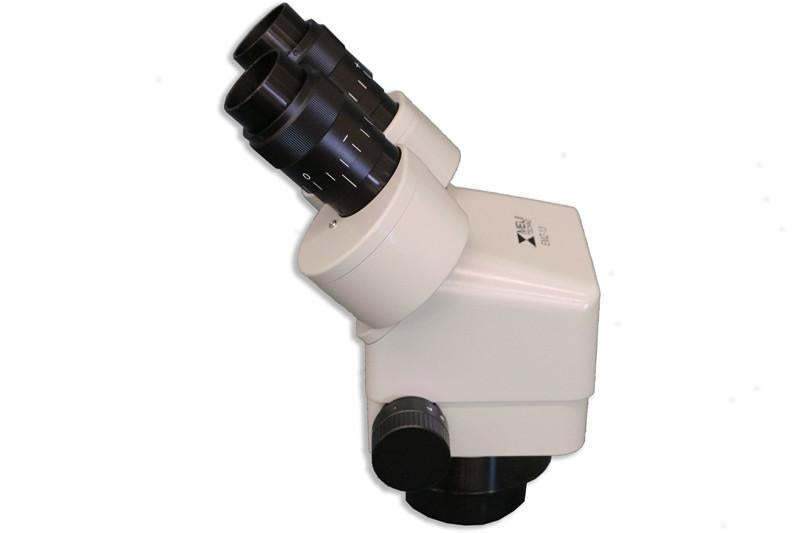

Meiji EMZ-13 Binocular Stereo Zoom Microscope Head 0.1x - 7.0x
- SKU: EMZ-13
The EMZ-13 body offers an extended zoom ratio of 7:1, the highest in it's series. Modularitiy of design enables the user to select magnification from 3x - 420x. The large zoom range means the user can expect superb optical performance and maneuverability. The paired objectives are parfocalled and parcentered that guarantees observation of exceptionally high resolution images throughout a wide magnification range. The EMZ-13 series offer working distances from 34mm - 252mm. The EMZ-13 employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. The EMZ-13 is suitable for precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any work/lab application.
Specifications: | |
---|---|
Body: |

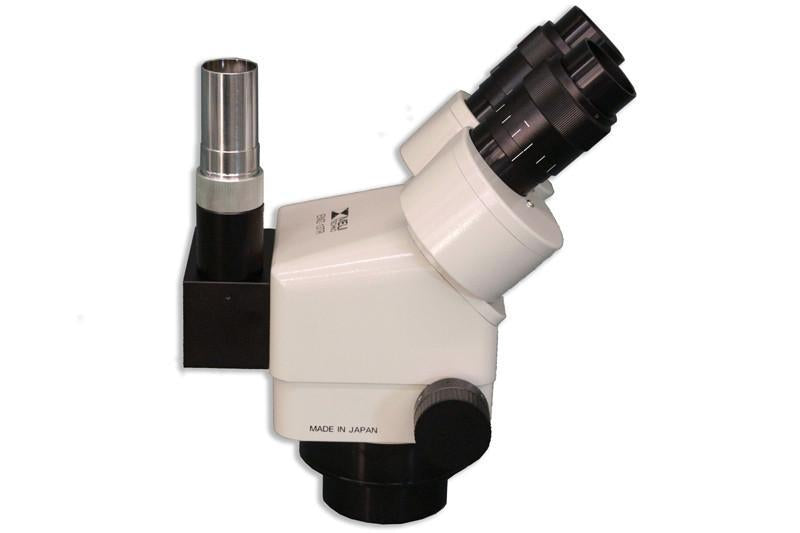

EMZ-13 - Binocular, Rotatable 360° EMZ-13TR - Trinocular, Rotatable 360° |
Zoom Ratio: |
7:1 |
Zoom Range: |
1x - 7x |
Magnification: | 10x - 70x (10x eyepieces not included) |
Field of View: | 23mm - 3.2mm |
Working distance: | 90mm |
Eyetube Inclination: | 45° |
Interpupillary Distance: | 54mm - 75mm |
Dioptric Adj: | Left tube (+/- 5 diopters) |
Misc: | Dust cover, rubber eyeguards, instruction manual |
Warranty: | Limited lifetime warranty |
