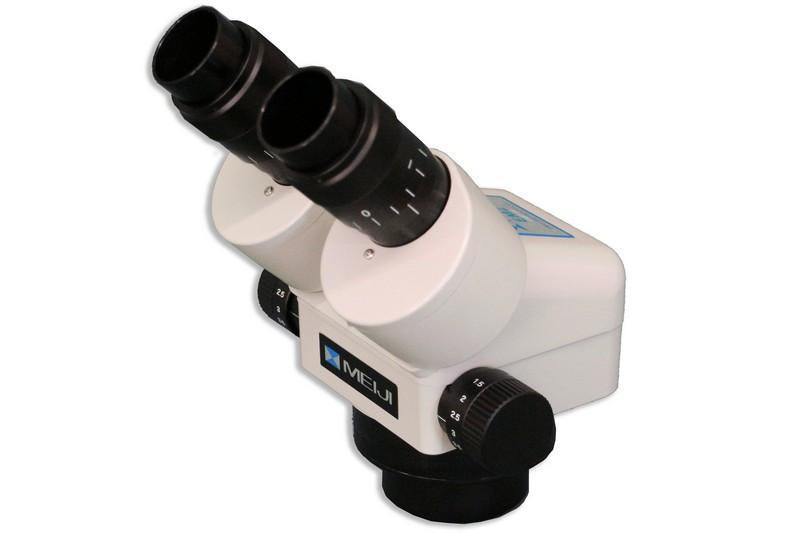

Meiji EMZ-10 Zoom Stereo Microscope Head 0.7x - 4.5x
- SKU: EMZ-10
$1,173.00
$1,380.00
The Meiji EMZ-10 body has a long 110mm working length, increase focal depth and a wide field number combine to make the EMZ-10 perfect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The Meiji EMZ-10 stereo microscope head offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.
| Meiji EMZ 10 Specifications: | |
|---|---|
| Body: | Binocular, Rotatable 360° |
| Zoom Ratio: |
6.5:1 |
| Zoom Range: |
0.7x - 4.5x |
| Magnification: | 7x - 45x (10x eyepieces) |
| Field of View: | 32mm - 5.1mm |
| Working distance: | 110mm |
| Eyetube Inclination: | 45° |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adj: | Left tube (+/- 5 diopters) |
| Misc: | Dust cover, rubber eyeguards, instruction manual |
| Warranty: | Limited lifetime warranty |
The Meiji EMZ-10 body has a long 110mm working length, increase focal depth and a wide field number combine to make the EMZ-10 perfect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The Meiji EMZ-10 stereo microscope head offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.
| Meiji EMZ 10 Specifications: | |
|---|---|
| Body: | Binocular, Rotatable 360° |
| Zoom Ratio: |
6.5:1 |
| Zoom Range: |
0.7x - 4.5x |
| Magnification: | 7x - 45x (10x eyepieces) |
| Field of View: | 32mm - 5.1mm |
| Working distance: | 110mm |
| Eyetube Inclination: | 45° |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adj: | Left tube (+/- 5 diopters) |
| Misc: | Dust cover, rubber eyeguards, instruction manual |
| Warranty: | Limited lifetime warranty |
