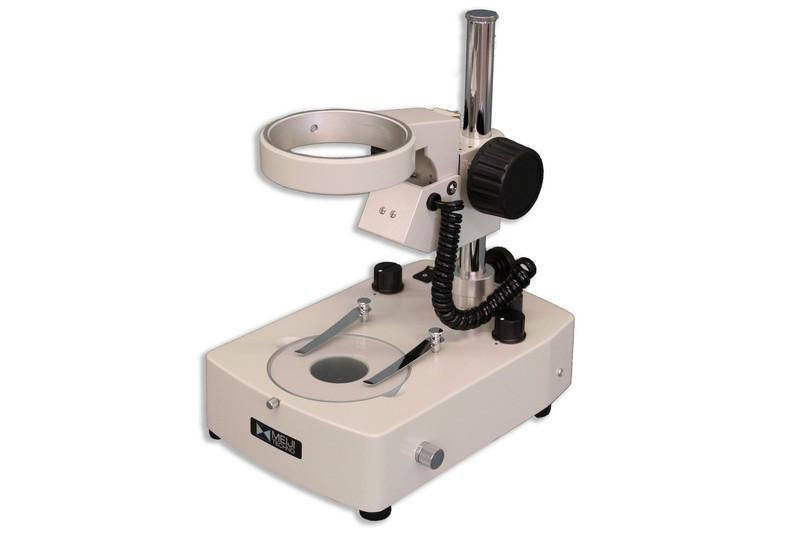

Meiji BD-LED Pole Microscope Stand - Darkfield
The BD-LED stand is a Pole type stand with an F focusing holder and a dual-reflection rotatable lens/mirror system which provides both incident and transmitted...
The BD-LED stand is a Pole type stand with an F focusing holder and a dual-reflection rotatable lens/mirror system which provides both incident and transmitted variable intensity LED illumination, independently or simultaneously. Fully rotatable mirror in base provides transmitted brightfield or pseudo-darkfield illumination. The BD-LED stand is still an excellent stand both biological and medical investigations. It can be an effective tool used at high magnifications to view living bacteria, or at low magnifications to view tissues, cells or embryo transfer. Marine biologists continue to use darkfield transmitted illumination at low powers to observe and record data about fresh and salt water organisms such as algea as well as striae in transparent material and plankton in aqueous solution. Equipped with two stage clips, 94.5 mm glass stage plate and is equipped with an automatic voltage (100v to 240v) sensing power supply.
Dimensions: 160mm (6") wide by 240mm (9") length by 280mm (11") high
Pillar Height: 5.7” height -20mm pillar
Glass Stage Plate: 94.5mm Round (MA569)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Block with 84.2 diameter opening accepts 84mm stereo body. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment
Illumination Port: Built in incident and transmitted variable intensity LED illumination
Rotatable Mirror: Dual-reflection lens/mirror system provides transmitted brightfield/ pseudo-darkfield illumination
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
• 10 lbs
• 17 x 14 x 9 inches
