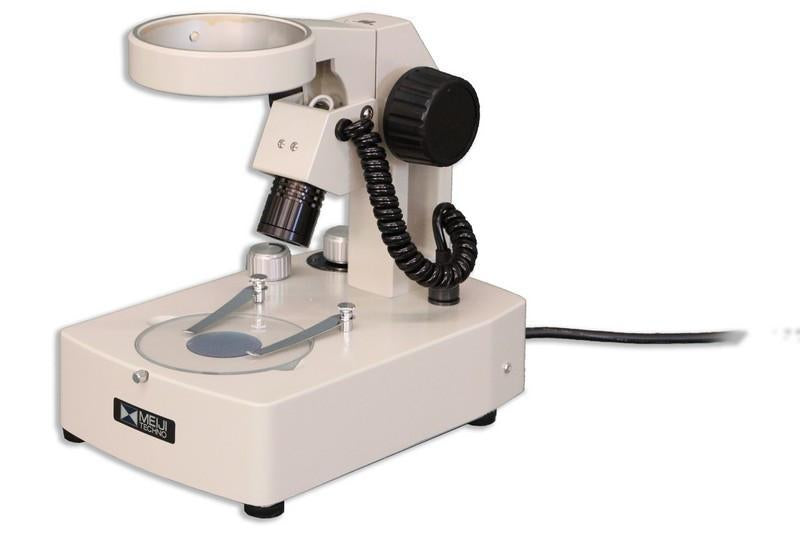

Meiji ABZH Rigid Arm Microscope Stand

The ABZ Stand is a Rigid-arm stand with built in transmitted and incident tungsten illumination which may be operated independently or simultaneously. Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568), 94.5mm diameter clear glass stage plate and two stainless steel stage clips (MA593). The ABZ Stand is designed for use with zoom (EMZ Series) stereo bodies. The ABZ stand is a great complement with the EMZ microscopes when a short (34-97mm) fixed working distance is needed with a bright Tungsten illumination.

Included:
   • ABZ Stand is a Rigid-arm stand with built in transmitted and incident tungsten illumination which may be operated independently or simultaneously
   • Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • ABZ stand is a great complement with the EMZ microscopes when a short (34-97mm) fixed working distance is needed supplied with a bright Tungsten illumination
   • Rigid arm stand can accommodate a extendable working distance since the focus block height can be adjusted from 240mm-300mm.
   • Wattage 6V, 10 Watt Halogen
   • MA569: 94.5mm diameter clear glass stage plate
   • MA568: 94.5mm diameter reversible black and white stage plate
   • MA593: Two stainless steel stage clips
   • Incident Bulb: MA570 (Factory Installed)
   • Transmitted Bulb: MA570 (Factory Installed)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions: 240mm (9") length by 160mm (6") wide by 233mm (9") high
   • Weight: 10lbs
   • Box Size: 17 x 14 x 9
