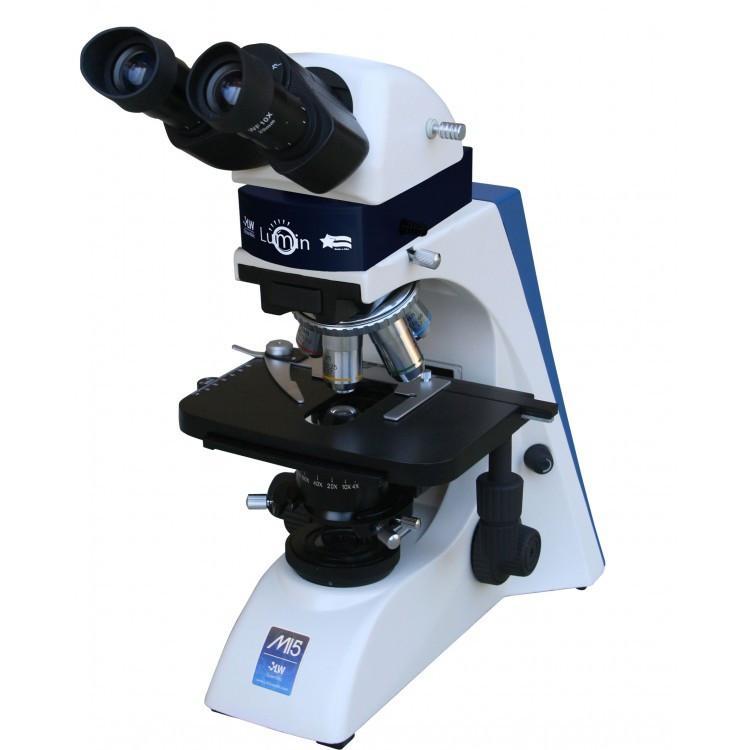

LW Scientific Mi5 Epi Fluorescence LED Microscope
- Order within
The Mi5 modular microscope was developed for use in a broad range of applications and has a great new optical enhancement. The new Mi5 Epi Lumin™ module allows for FITC Epi Fluorescence at a very affordable price. For users looking to rid their facilities of harmful Mercury HBO bulbs that emit UV light and upgrade from their antiquated Epi Fluorescence (EF) systems, the Mi5 Epi Lumin™ is the perfect solution.
With integrated LED technology for both bright field and Epi-Fluorescence microscopy, the Mi5 Epi Lumin™ offers superior clarity and crisp imaging—all at a price that allows even labs on a limited budget to benefit from the latest technological advances.
Specifications | |
---|---|
Head: | Binocular OR Trinocular (Seidentopf), Inclined 30°, Diopter adjustment +/-5 |
Eyepieces: | 10X/20X Super WF HP |
Nosepiece: | Reverse quintuple nosepiece, Multiple ball bearing mounted |
Objectives: | Infinity Plan objectives 4X, 10X, 20X, 40XR, 100x Oil - Please Contact Us for 50x Oil or 60x Dry objectives |
Fluorescence: | LED long-life light source Excitation spectrum: FITC standard, Other filter cubes available upon request |
Focus: | Coarse adjustment: range of 22mm, Fine adjustment: graduation of 2μm, Tension control knob |
Condenser: | Moveable Abbe condenser, NA 1.25 Iris Diaphragm |
Illumination: |
LED Brightfield Input: 12V 1A (use only supplied power adapter) |
Stage: | Mechanical stage (135mm X 184mm), Coaxial drive controls, metal rack & pinion, Range of traverse: 73mm x 43mm, Stage locking lever, Slow-close hydraulic slide finger |
