LW Scientific i4 Semen Analysis Microscope

LW Scientific


Request Quote

Perfect for veterinarians or fertility clinics, the new i4 Semen Evaluation LabScope is the complete package for live specimen microscopy including semen analysis and culture. Motility analysis should be performed at 98.6 degrees Fahrenheit to keep sperm active, and the heated stage of this semen microscope has a built-in digital temperature control unit which can be set for any temperature up to 110 degrees Fahrenheit. The heated stage will maintain accurate and stable temperatures within +/- 0.3 degrees during observation, semen analysis and culture. This semen microscope looks and functions like a standard laboratory-grade microscope when in brightfield configuration. The Plan phase objectives and turret condenser allow flat-field, high-contrast viewing of live, unstained specimens, and easy magnification changes with the flip of the thumb.

Head: Binocular OR Trinocular (Seidentopf), Inclined 30°, rotates 360°
Eyepieces: 10X/20mm WF Eyepieces with eye guards
Nosepiece: Reverse quadruple nosepiece, Multiple ball bearing mounted
Objectives: Infinity Plan Phase 10x, 20x, 40x, 100x Oil
Condenser: Phase turret condenser with phase and brightfield

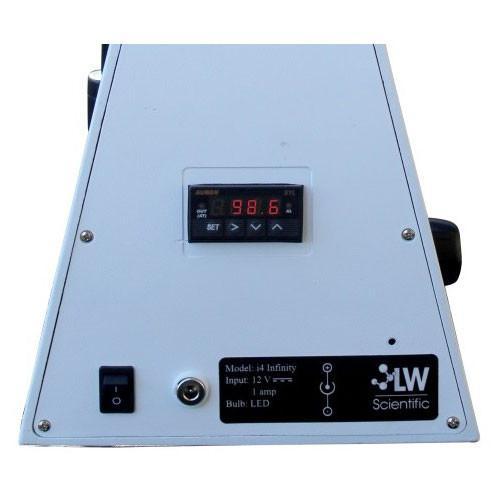

Built in digital temperature Heated XY mechanical stage

Variable digital temp. control up to 110º F, Set temperature in 0.1 degree increments


Variable LED illumination

110-220 Volt auto-switching

Accessories: Blue, green, and yellow filters, dust cover, manual, warranty card

i4 Semen Analysis Brochure
