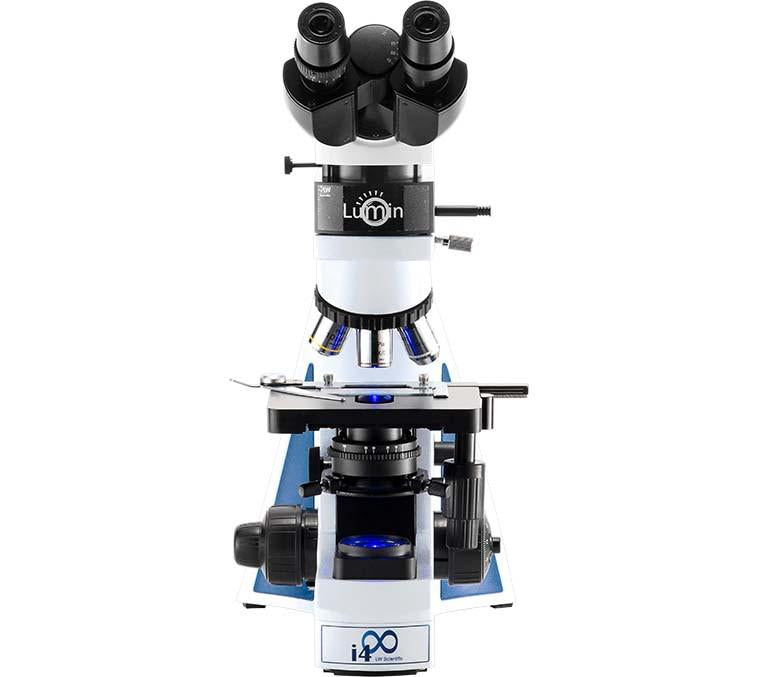

LW Scientifi i4 Epi Fluorescence LED Microscope

LW Scientific

$3,179.00  $3,740.00

Request Quote

For users requiring a multi-purpose microscope for expanding health services, LW Scientific introduces the new i4 Epi Lumin™ Fluorescence microscope. With integrated LED technology for both bright field and epifluorescence microscopy, the i4 Epi Lumin™ offers superior clarity and crisp imaging—all at a price that allows even labs on a limited budget to benefit from the latest technological advances. The Lumin™ epifluorescence module converts our standard i4 microscope to a fully functional epifluorescence microscope. The resulting images rival those obtained from traditional, expensive epifluorescence systems. Trinocular version also available.

Specifications
Head: Binocular OR Trinocular (Seidentopf), Inclined 30°, rotates 360°
Eyepieces: 10X/18 WF Eyepieces
Nosepiece: Reverse quadruple nosepiece, Multiple ball bearing mounted
Objectives:

Infinity Semi-Plan 4X, 10X, 40XR, 100X Oil

OR

Plan Achromat objectives 4X, 10X, 40XR, 100X Oil

Fluorescence: LED long-life light source, Excitation spectrum: FITC standard (485/510), Other filter cubes available upon request
Focus: Coarse adjustment: range of 30mm, Fine adjustment: graduation of 2μm, Tension control knob
Condenser: Moveable Abbe condenser, NA 1.25 Iris Diaphragm
Illumination:

Transmitted LED long-life light source

90-240V / 50-60Hz automatic switching.

Stage: Mechanical stage (140mm X 140mm), Coaxial drive controls, metal rack & pinion, Range of traverse: 73mm x 43mm, Stage locking lever, Slow-close hydraulic slide finger

LW Scientifi i4 Epi Fluorescence Brochure
