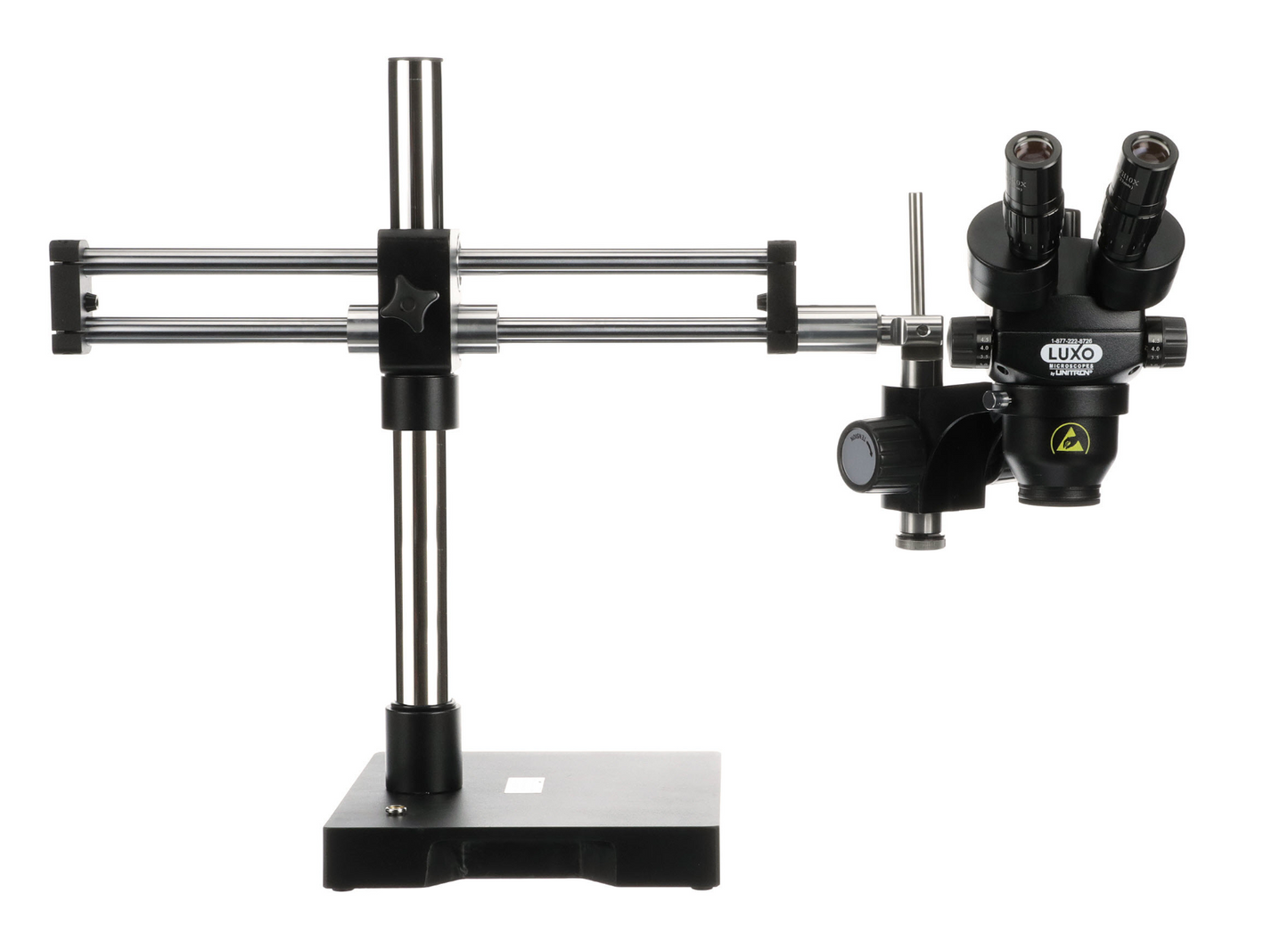

LX 373RB-TRT-ESD Trinocular Stereo Microscope

Recently viewed

LX 373RB-TRT-ESD Trinocular Stereo Microscope

LX 373RB-TRT-ESD Trinocular Stereo Microscope

  • SKU: 23720RB-TRT-ESD
$2,228.70 $2,346.00
Request Quote
  • ESD-safe. Body and stand feature baked-on powder-coated with a metal-laced paint that measures 105 Ω/sq. (static dissipative)
  • TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
  • Super widefield 10x/23mm eyepieces with eyeshields
  • High-quality achromat lenses with anti-reflective coatings
  • 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
  • Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
  • Magnification range 7x-45x (with 10x eyepieces)
  • 8″ working distance (when used with optional 0.5x reducing lens)
  • Heavy duty cast aluminum housing
  • Dual boom roller-bearing stand with 17.5″ vertical and 24″ horizontal reach. Horizontal boom measures 22" with 14" of travel between stops. (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
  • ESD-safe. Body and stand feature baked-on powder-coated with a metal-laced paint that measures 105 Ω/sq. (static dissipative)
  • TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
  • Super widefield 10x/23mm eyepieces with eyeshields
  • High-quality achromat lenses with anti-reflective coatings
  • 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
  • Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
  • Magnification range 7x-45x (with 10x eyepieces)
  • 8″ working distance (when used with optional 0.5x reducing lens)
  • Heavy duty cast aluminum housing
  • Dual boom roller-bearing stand with 17.5″ vertical and 24″ horizontal reach. Horizontal boom measures 22" with 14" of travel between stops. (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
