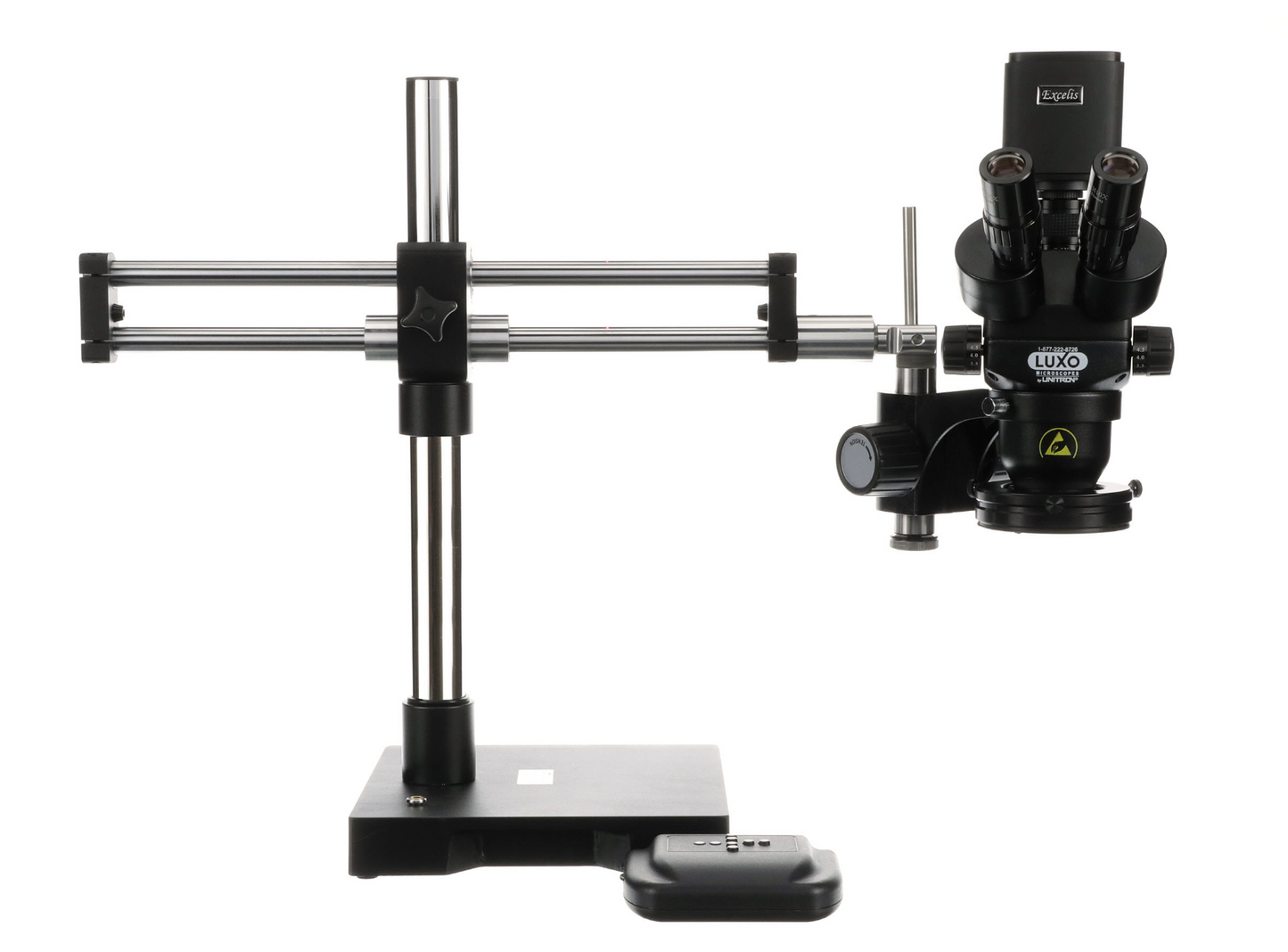

LX 373RB-DMLED-HOHDTR-ESD Trinocular Stereo Microscope

SKU: 23725RB-HDTRTHOL-ESD

$4,060.30 ~~$4,274.00~~

Quote Request

Description
Reviews

ESD-safe. Body and stand feature baked-on powder-coat with a metal-laced paint that measures 105 Ω/sq. (static dissapative).
TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
Super widefield 10x/23mm eyepieces with eyeshields
High-quality achromat lenses with anti-reflective coatings
0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
Magnification range 7x-45x (with 10x eyepieces)
8″ working distance (when used with optional 0.5x reducing lens)
Heavy duty cast aluminum housing
Dual boom roller-bearing stand with 17.5″ vertical and 24″ horizontal reach. Horizontal boom measures 22" with 14" of travel between stops. (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
Dimmable LED High Output Ring Light (CAT# 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance.
Excelis HD 1080p color digital camera and camera adapter. The Excelis HD offers simultaneous live image output via HDMI to an HD monitor and to a computer via USB 2.0. Images can be saved directly to a PC or Mac or onto the included 8GB SD card. The Excelis HD camera can be fully controlled without a computer. The free software allows for measurements, annotations, extended depth of focus, image stitching, and fluorescence.
