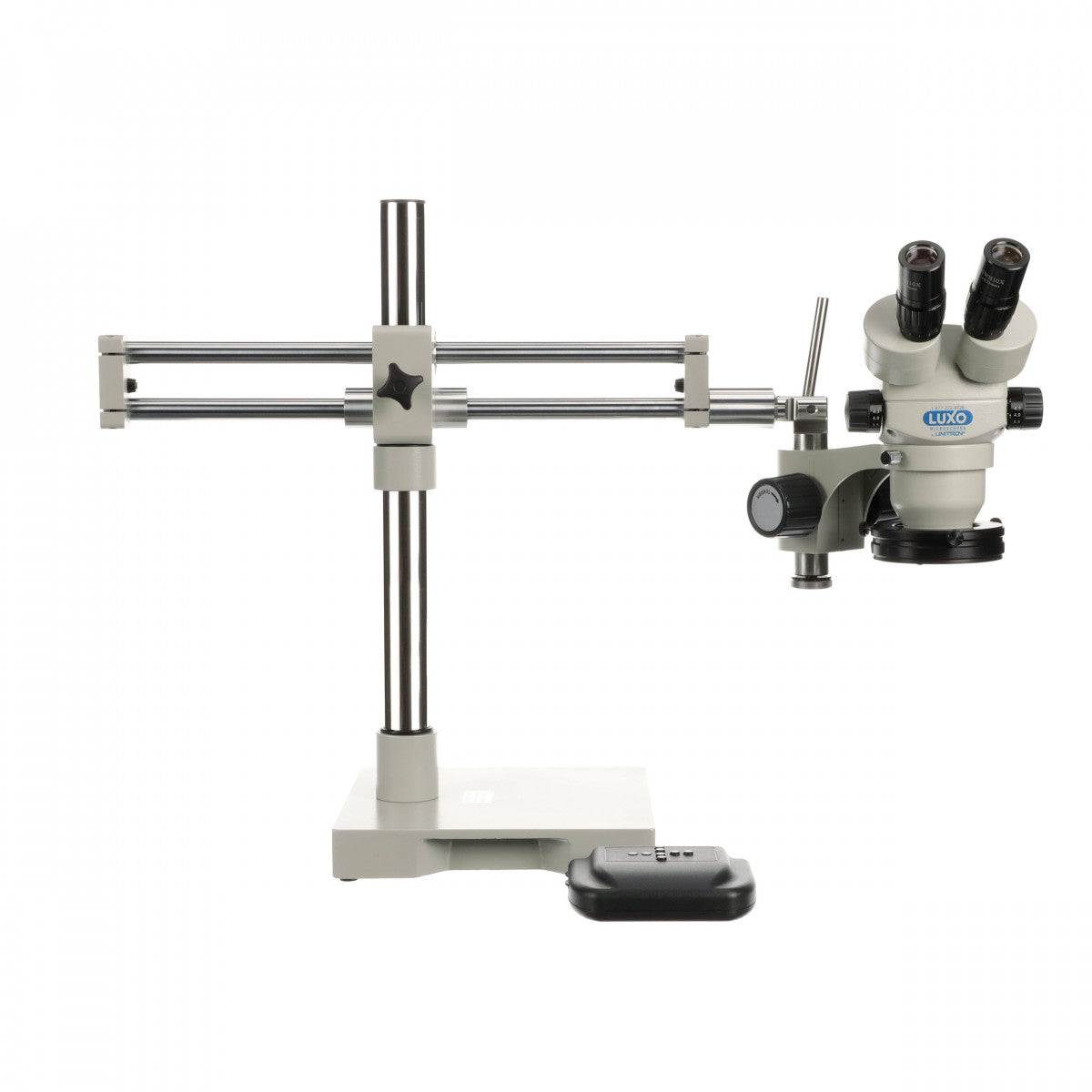

LX 273RB-DMLED Stereo Microscope

Recently viewed

LX 273RB-DMLED Stereo Microscope

LX 273RB-DMLED Stereo Microscope

  • SKU: 23727RB
$2,180.25 $2,295.00
Quote Request
  • Binocular viewing head
  • Baked-on powder coat for superb durability
  • Super widefield 10x/23mm eyepieces with eyeshields
  • High-quality achromat lenses with anti-reflective coatings
  • 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
  • Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
  • Magnification range 7x-45x (with 10x eyepieces)
  • 8″ working distance (when used with optional 0.5x reducing lens); Standard working distance with 1.0x lens shield is 118mm
  • Heavy duty cast aluminum housing
  • Dual boom roller-bearing stand with 17.5″ vertical and 24″ horizontal reach. Horizontal boom measures 22" with 14" of travel between stops. (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
  • Dimmable LED Ring Light with quadrant control (CAT# 18746), 6000K color temperature, 50,000 hour rated lamp life and produces 3600 foot-candles at a 4.5" working distance.
