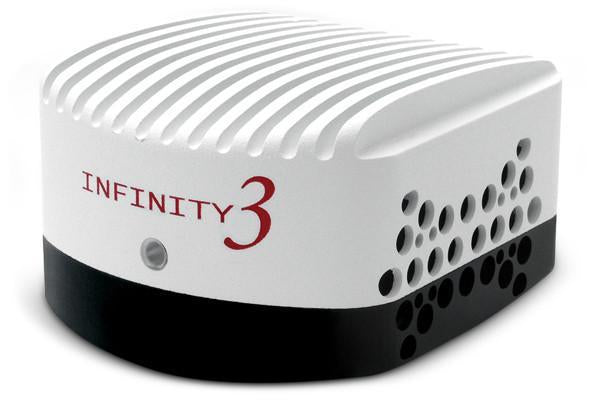

Lumenera 3-1 1.4 Megapixel CCD Cooled Digital Camera Series

Lumenera Cameras

$6,500.00

Request Quote
INFINITY 3-1C — 1.4 Megapixel Color CCD Camera OR INFINITY 3-1M — 1.4 Megapixel Monochrome CCD Camera

Lumenera’s INFINITY3-1 cooled camera is designed for use in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required.

With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications. Uncompressed images in live streaming video and still-image capture are provided across a USB 2.0 digital interface.

The INFINITY3-1 includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images. Both color and monochrome product models are available.

Product Highlights:

  • High-speed USB 2.0 (480Mbits/sec) interface for ease of installation with any computer
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise progressive scan 1.4 megapixel CCD image sensor
  • Crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • 15 fps at full 1392x1040 resolution

    Technical Specs:

    Camera Sensor
    Image Sensor: Sony ICX285 2/3” format, 1.4 megapixel color or monochrome progressive scan CCD sensor
    Effective Pixels: 1392 X 1040, 1.4 million pixels
    Frame Rate: 15 fps at 1392x1040, increased through binning and ROI
    Digital Output: 8 and 12-bit
    Dark Current (e-/s): 0.15 electrons / pixel / s when cooled
    Pixel Size: 6.45 X 6.45 µm
    Full well capacity: >18,000 electrons
    Readout Noise: 8 e- rms
    Cooling type: Hermetically sealed and dry gas filled thermoelectric cooling to 25 degrees Celsius below ambient
    Readout Frequency: 28.6 MHZ
    Camera Controls
    Power Requirement: External 5 V DC - 3 amp
    Power Consumption: ~2.5 W uncooled / ~8.5 W cooled
    Operating Temperature: 0 to +50° C
    Operating Humidity: 5 to 95%, Non-condensing
    Integration Time: 3.5μs to 20 minutes
    Auto Exposure: Automatic / Manual
    White Balance: Automatic / Manual
    Gain: 1 to 10X programmable
    Interface: USB 2.0 high-speed interface
    Dimensions (L x W x H): 3.85 x 3.5 x 2.446 inch
    Lens Mount: C-Mount lens adapter
    Binning Options: 2x2, 3x3, 4x4

    Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
