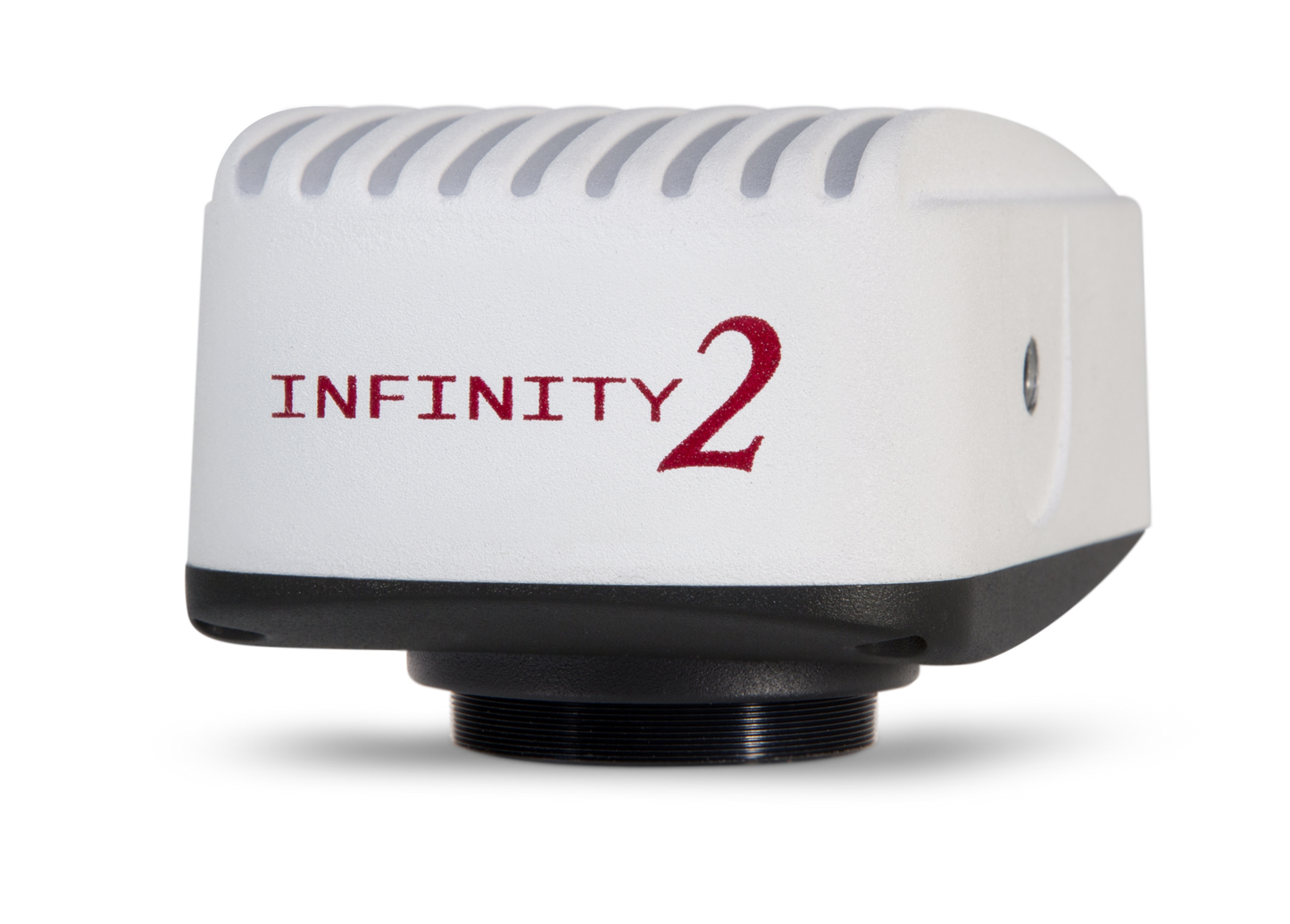

INFINITY2-5C — 5.0 Megapixel CCD Color Camera OR INFINITY2-5M — 5.0 Megapixel CCD Monochrome Camera

    Lumenera’s INFINITY2-5 digital CCD camera offers excellent sensitivity, high resolution and a wide dynamic range for brightfield, darkfield, and DIC imaging applications.

    With 2448 X 2048 resolution and on-board processing, the INFINITY2-5 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers.

    Years of experience in the microscopy market have allowed Lumenera to develop specialized color algorithms ensuring excellent color reproduction in samples ranging from stained cells to wafer inspection.

    Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.

    Product Highlights:

    • Progressive scan 2/3" Sony Super HAD ICX655 5.0 megapixel CCD sensor
    • High-speed USB 2.0 interface for ease of installation on any computer
    • Full color sub-windowing allows for rapid focus and scanning of samples
    • Crisp color quality for the most demanding brightfield and darkfield microscopy applications
    • 9 fps at full 2448 x 2048 resolution, 23 fps at 640 x 480 (with ROI)
    • Select 8 & 14-bit pixel data modes

    Technical Specifications:

    Camera Sensor
    Image Sensor: Sony Super HAD ICX655, CCD, color or mono, progressive scan
    Effective Pixels: 2448 x 2048, 3.45 µm square pixels
    Frame Rate: 9 fps at 2448 x 2048
    Dynamic Range: 58 dB
    Bit Depth: 8 or 14-bit
    Read Noise: 10 e-
    Camera Controls
    Mass: 330 g
    Power Requirement: USB bus power (or external 5 V DC, 500 mA)
    Power Consumption: ~2.5 W
    Operating Temperature: 0 to 50 ° C
    Operating Humidity: 5 - 95 %, Non-condensing
    Exposure Range: 161 μs to 500 ms (video) 161 μs to 71 min (snapshot)
    Shutter: Global
    Exposure Control: Manual and automatic control
    White Balance: Manual and automatic control
    Gain Range: 1 to 25.6 x
    Interface Connector: USB 2.0 high-speed interface
    Dimensions (L x W x H): 3.85 x 2 x 2.75 inches
    Lens Mount: Adjustable C-Mount standard

    Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
