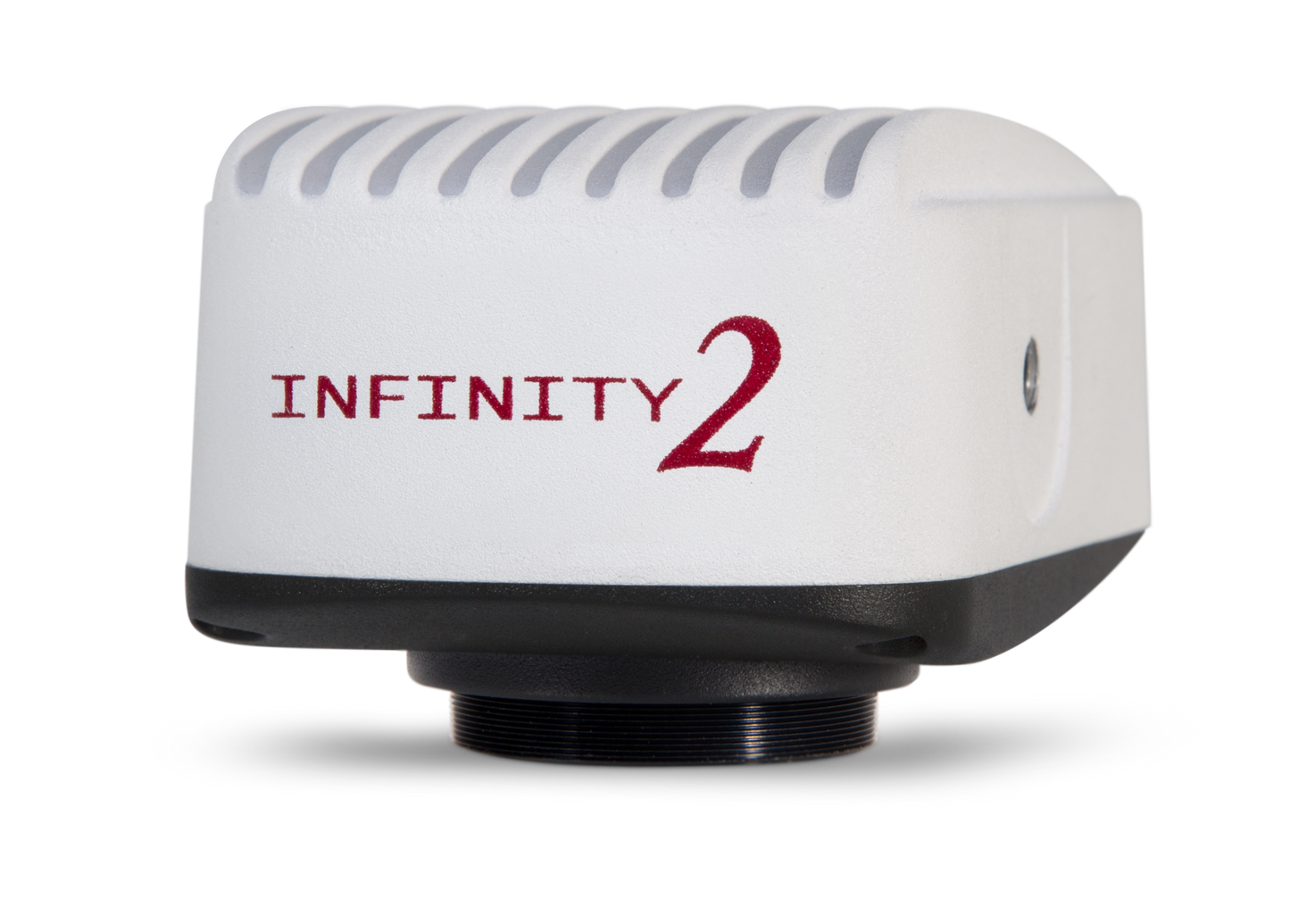

Lumenera 2-2 2 Megapixel CCD Digital Camera Series

Lumenera 2-2 2 Megapixel CCD Digital Camera Series

  • SKU: 2-2C
$3,625.00
Title
Quote Request
INFINITY2-2C — 2.0 Megapixel Color CCD Camera OR INFINITY2-2M — 2.0 Megapixel Monochrome CCD Camera

Lumenera’s INFINITY2-2 digital CCD camera offers excellent sensitivity, high resolution and a wide dynamic range for brightfield, darkfield, and DIC imaging applications.

With 1616X1216 resolution and on-board processing, the INFINITY2-2 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers.

The USB 2.0 digital interface ensures a simple plug and play installation – and one standard cable minimizes camera clutter.

Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.

The INFINITY2-2 is available in color or monochrome.

Product Highlights:

  • High-speed USB 2.0 interface for ease of installation on any computer
  • Crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, histology, life science and geology
  • 12 fps at full 1616 X 1216 resolution, 30 fps at smaller regions of interest
  • The excellent sensitivity and low noise 2.0 megapixel CCD image sensor
  • High quality images over a wide range of lighting conditions
  • Select 8 & 12-bit pixel data modes

    Technical Specifications:

    Camera Sensor
    Image Sensor: 1/1.8” Interline Sony ICX274 2.0 megapixel, color or monochrome, progressive scan CCD sensor
    Effective Pixels: 1616 x1216, 4.4 µm square pixels
    Frame Rate: 12 fps at full resolution, higher fps with binning and ROI
    Digital Output: >66 dB
    Read Noise: 8 and 12-bit
    Readout Frequency: 12 e- rms
    Dimensions (W x H x D): 2.00 x 2.50 x 1.63 inches (board level)
    2.25 x 3.85 x 1.56 inches (enclosed)
    Camera Controls
    Mass: 300g
    Power Requirement: USB bus power, or external 5VDC - 500mA
    Power Consumption: ~2.5 W
    Operating Temperature: 0 to +50 °C
    Operating Humidity: 5 to 95 %, Non-condensing
    Integration Time: 1/1000 to 16 sec
    Shutter: Global Shutter
    ROI: User Selectable
    Auto Exposure: Automatic / Manual
    White Balance: Automatic / Manual
    Gain: Programmable / 1 to 10x
    Interface Connector: Standard USB 2.0 high-speed interface
    Dimensions (L x W x H): 3.85 x 2.00 x 2.75 inches
    Lens Mount: C-Mount lens adapter
    Binning Options: 2x2, 4x4

    Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
