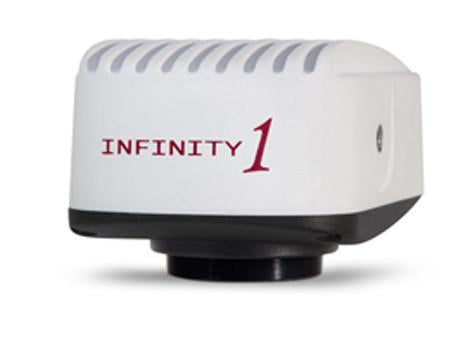

INFINITY1-3C — 3.1 Megapixel CMOS Color USB 2.0 Camera
Lumenera’s INFINITY1-3 digital camera is designed to be a cost-effective, versatile solution for documentation life science, clinial and material science applications.
The INFINITY1-3 scientific CMOS camera provides extremely fine detail that was previously invisible to lower megapixel imaging systems with 2048x1536 resolution. Benefit from fast, smooth previews during sample manipulation with high frame rates of up to 80 frames per second.
Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.
|
Product Highlights:
- Low noise, progressive scan 1/2" 3.1 megapixel image sensor
- High-speed USB 2.0 for ease of installation on any computers
- Full color sub-windowing allows for rapid focus and scanning of samples: up to 80fps at 640x480
- Crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life science and geology
- Select 8 & 10-bit pixel data modes
|
Technical Specifications:
Camera Sensor |
Image Sensor: |
1/2” format, Micron MT9T001, CMOS, color, progressive scan, 6.5mm x 4.9mm array |
Effective Pixels: |
2048 x 1536, 3.2µm square pixels |
Frame Rate: |
12 fps at 2048 x 1536, 80 fps at 640 x 480 |
Dynamic Range: |
63 dB |
Digital Output: |
8 and 10-bit uncompressed |
Read Noise: |
18 e- |
Camera Controls |
Mass: |
300 g |
Power Requirement: |
USB bus power (optional 6VDC - 500mA) |
Power Consumption: |
~2.5 W |
Operating Temperature: |
0 to +50 °C |
Operating Humidity: |
5 to 95 %, Non-condensing |
Integration Time: |
128µs - 500ms (video) 128µs - 4s (snapshot) |
Shutter: |
Rolling shutter with single frame capture |
ROI: |
User Selectable |
Auto Exposure: |
Automatic and Manual |
White Balance: |
Automatic and Manual |
Gain: |
1 to 3.88x |
Interface Connector: |
USB 2.0 high-speed interface |
Dimensions (L x W x H): |
3.85 x 2.25 x 2.75 inches |
Lens Mount: |
C-Mount lens adapter |
|
Software compatible with Windows 8, 7, 10, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
