Leitz SM-LUX-POL Polarizing Microscope Refurbished

Recently viewed

Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished
Leitz SM-LUX-POL Polarizing Microscope Refurbished

Leitz SM-LUX-POL Polarizing Microscope Refurbished

$1,800.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote
  • Order within

Leitz SM-LUX-POL Polarizing Microscope Refurbished

Specifications
Head: Monocular
Eyepiece: Periplan GF 10x eyepiece, focusing with reticule and pinhole stop
Polarization: Bertrand Lens, 1/4 wave plate, analyzer
Nosepiece Quintuple, centerable
Focusing: Coaxial Coarse & fine focus
Stage: Graduated 360 degree Rotatable stage, 2 Stage Clips
Objectives: 4x/0.12 NA, 10x/0.25 NA, 63x/0.85 NA
Substage:

Height adjustable Flip top condenser with iris and swing out rotatable polarizer

Field Diaphragm

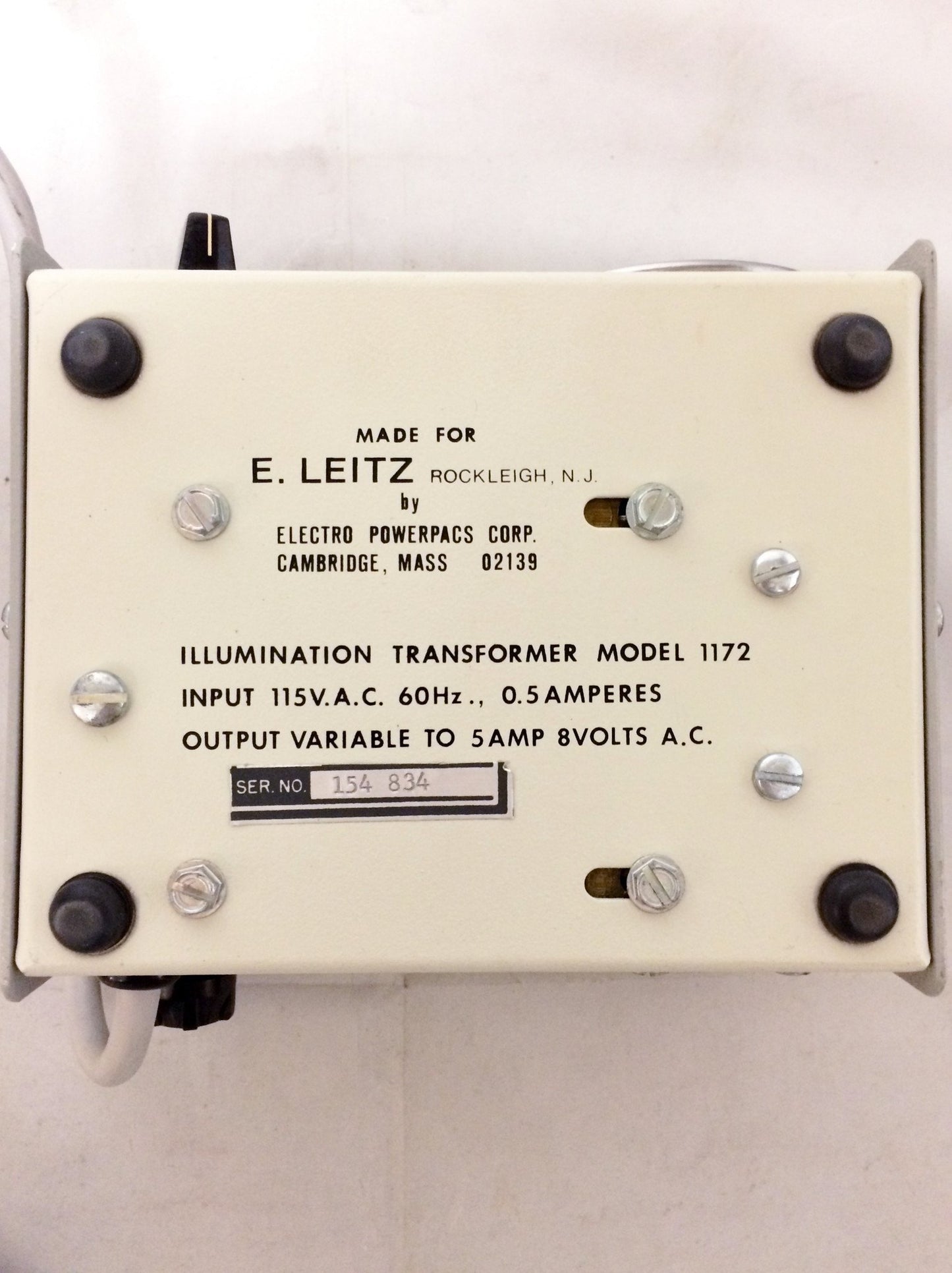

Light Source: External transformer power supply, variable
Warranty: One Year

Leitz SM-LUX-POL Polarizing Microscope Refurbished

Specifications
Head: Monocular
Eyepiece: Periplan GF 10x eyepiece, focusing with reticule and pinhole stop
Polarization: Bertrand Lens, 1/4 wave plate, analyzer
Nosepiece Quintuple, centerable
Focusing: Coaxial Coarse & fine focus
Stage: Graduated 360 degree Rotatable stage, 2 Stage Clips
Objectives: 4x/0.12 NA, 10x/0.25 NA, 63x/0.85 NA
Substage:

Height adjustable Flip top condenser with iris and swing out rotatable polarizer

Field Diaphragm

Light Source: External transformer power supply, variable
Warranty: One Year
