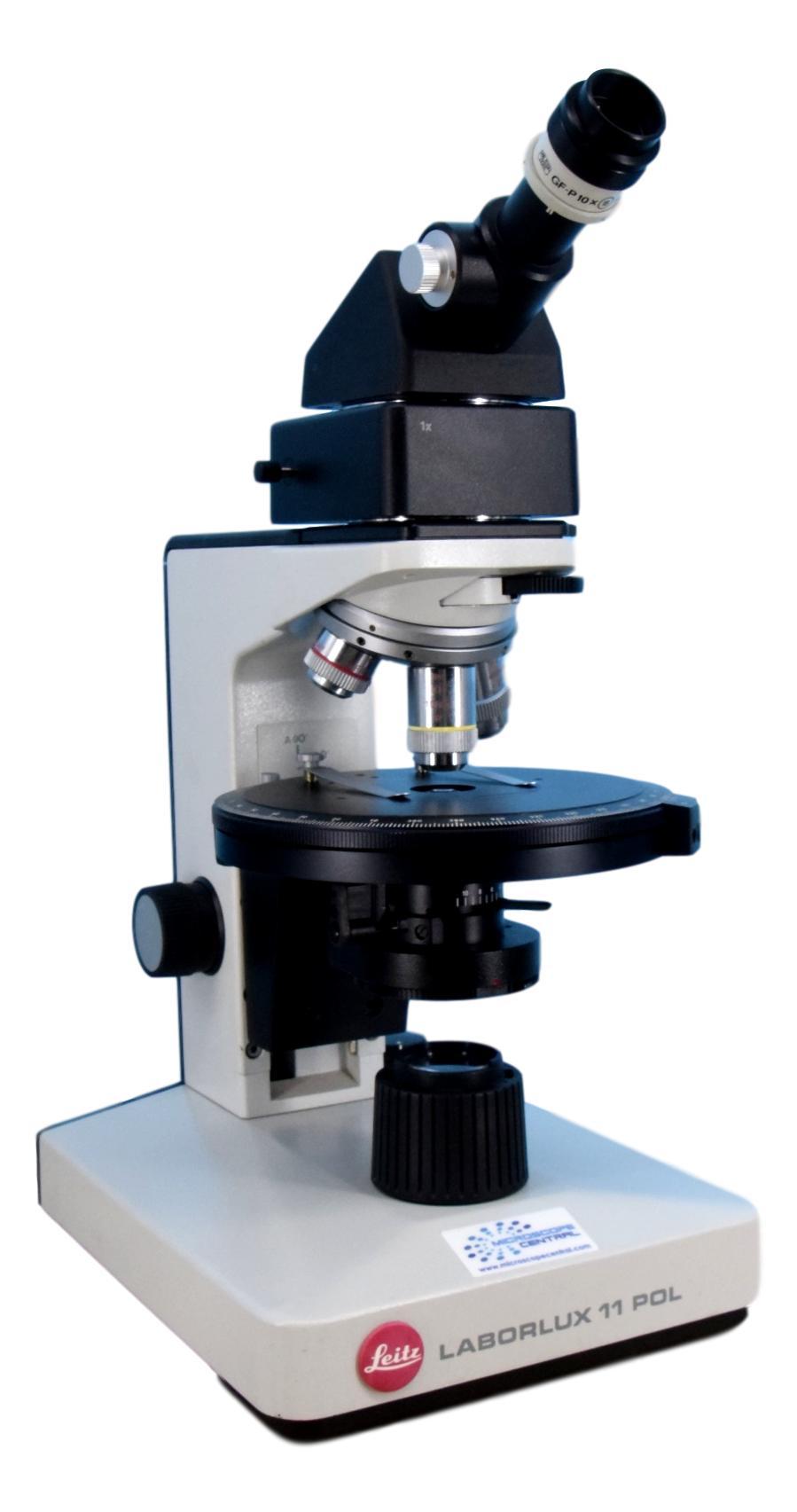

Leitz LaborLux 11 POL Polarizing Light Microscope

Recently viewed

Leitz LaborLux 11 POL Polarizing Light Microscope
Leitz LaborLux 11 POL Polarizing Light Microscope
Leitz LaborLux 11 POL Polarizing Light Microscope

Leitz LaborLux 11 POL Polarizing Light Microscope

  • SKU: L11-POL-M
$1,950.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Head
Quote Request

This Leitz Laborlux 11 POL microscope is a polarized light microscope. We offer this with a monocular or binocular viewing head. It comes with a 360 degree rotating stage with 4x, 10x, and 40x objectives.



Specifications
Head: Monocular or Binocular Pol-tube S
Eyepiece:

Periplan 10x/18 Eyepieces, both focusing - single eyepice for monocular

One cross-hair scale reticle

Polarization:

Intermediate tube contains:

Wave plate, analyzer

Nosepiece Quadruple, centerable with centering screws
Focusing: Coaxial Coarse & fine focus
Stage: Graduated 360 degree Rotatable stage, 2 Stage Clips
Objectives: EF 4x/0.12NA, EF 10x/0.25NA, EF 40x/0.65NA
Substage: Polarizing condenser with built-in iris diaphragm and flip out top lens
Light Source: 6V 10W tungsten halogen lamp, variable
Warranty: One Year
