Description

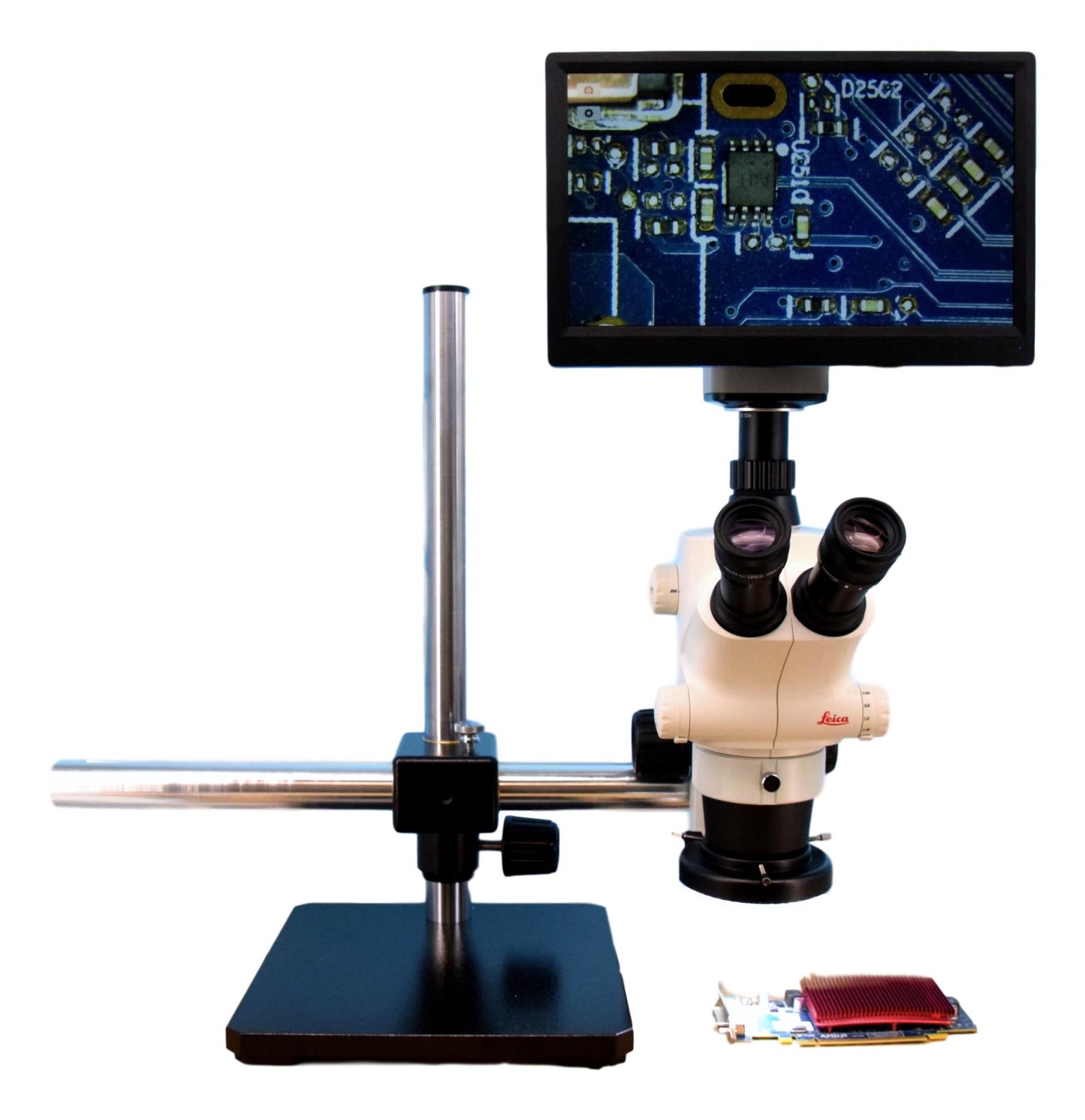

The Leica S6 D digital stereo microscope comes complete with an HDMI / USB output high definition camera. You can choose to purchase this with or without the 11.6" retina display screen as pictured. Either way this camera can output USB to a computer or HDMI to any monitor. The screen attached provides and all in one streamlined design. When using the camera with HDMI output on board software pops up and is controlled by the included mouse. You can adjust the camera settings and capture images / videos and choose to play them back. For more features via HDMI output click on the Demo Video tab. If you output USB to a computer you can take advantage of the free software which has measurement, annotation, focus stacking, and more!
The microscope itself provides high resolution images with its world-renowned Leica optics. With the included 10x/23mm eyepieces this system has a 6.3x - 4x zoom range and 110mm working distance. We offer this on different style stands, not all of the stands are pictured with the microscope in it, but you will get the complete system. Ring light not included.
| Leica S6 D Microscope Specifications: | |
|---|---|
| Head: | Trinocular 38 degree 0/100 or 100/0 w/ C-Mount |
| Zoom Range: | 0.63x - 4x |
| Eyepieces: | 10x/23mm FOV |
| Overall Mag: | 6.3x - 40x |
| Working Distance: | 110mm |
| Warranty: | 5 Year Mechanical |
| Camera Specifications | |
|---|---|
| Screen | Mountable 11.6" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
Stand Options:
| Plain Stand | |
|---|---|
 |
| LED Stand - Reflected & Transmitted |
|
| Post Stand |
 |
| Track Stand |
 |
| Single Boom |
 |
| Ball Bearing Boom |
 |
