Leica M165 C High Performance Stereo Microscope 7.3x - 120x

Recently viewed

Leica M165 C High Performance Stereo Microscope 7.3x - 120x
Leica M165 C High Performance Stereo Microscope 7.3x - 120x
Leica M165 C High Performance Stereo Microscope 7.3x - 120x

Leica M165 C High Performance Stereo Microscope 7.3x - 120x

  • SKU: L-M165C
$14,500.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote

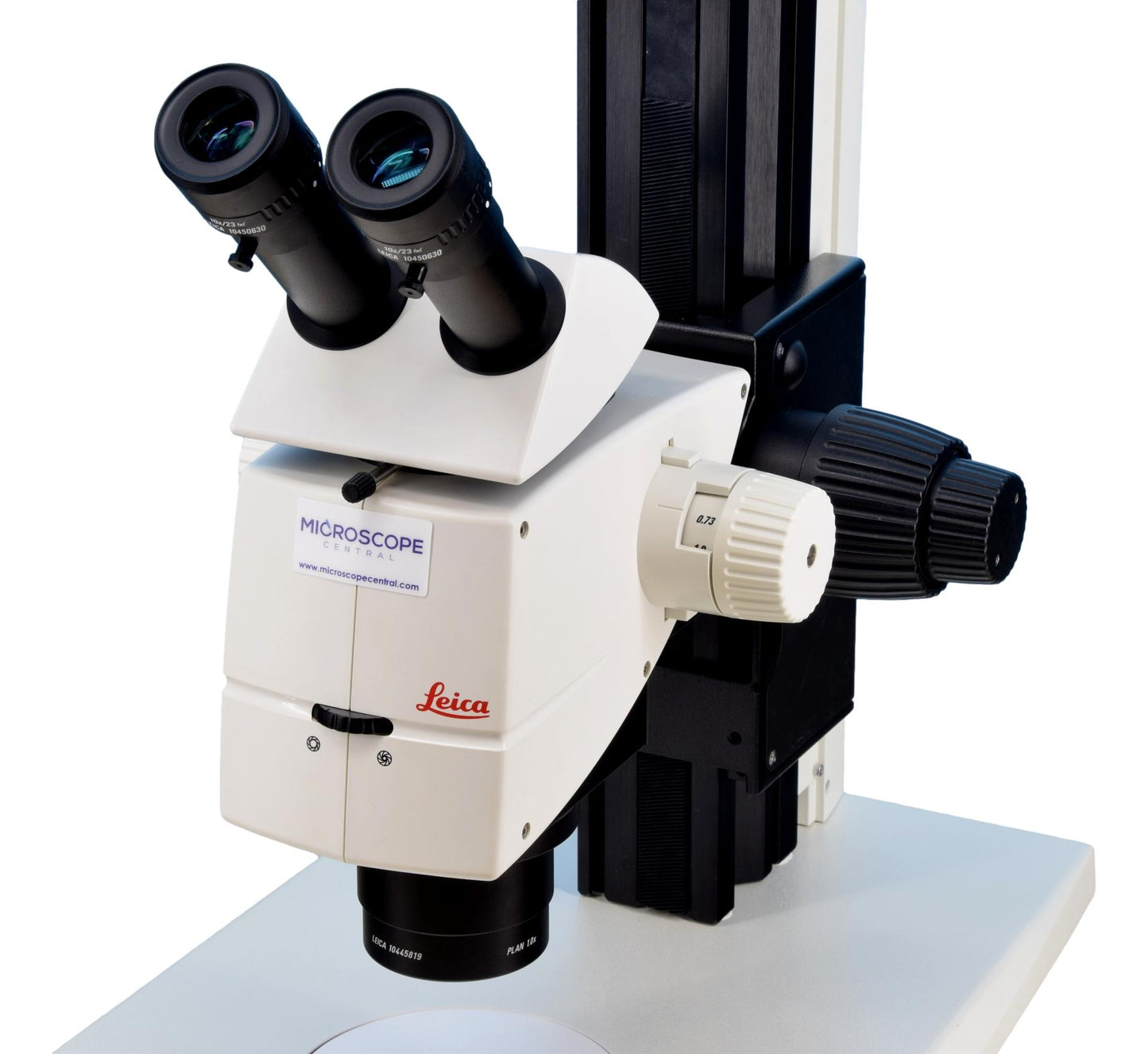

The Leica M165 C is a high performance encoded stereo microscope with a zoom range of 7.3x - 120x with remarkable resolution. This high end microscope can be configured to meet your specific needs. As is we offer this microscope with a trinocular ergo tube with a pair of 10x/23mm eyepieces. The 1x Plan objective provides 60mm of working distance. The microscope has a 420mm coarse and fine focus column and is on the Leica TL4000 RC transmitted light base. This base incorporates rottermann contrast, brightfield, and darkfield illumination techniques:

  • Rottermann Contrast TM shows changes in the refractive index within a sample as differences in brightness, almost transparent specimens can be viewed as spatial, relief-like images, the Rottermann Contrast TM technique is based on partial illumination, created by two variable diaphragms located in the beam path
  •  Illuminated object field diameter 35 mm
  • Free adjustable two sided mirror for vertical and oblique illumination mirror, planar mirror surface for a homogenous illuminated field of view at low magnification, concave mirror surface for increased illumination at high magnification,
  • Slide-On TM design enables the standard stage to be replaced with the IsoPro series cross- stage and vice versa,
  • 3 slots for filters
  •  AntiShock feet

Two dual goosenecks provide reflected light illumination. This used microscope comes fully serviced with a warranty.



Specifications
Head: Ergo Trinocular 100/0
Eyepieces: 10x / 23 mm
Zoom: 0.73x - 12.0x (7.3x - 120x Total Mag)
Objective: 1x Plan
Stand: 420mm Coarse & Fine Focus Stand w/ TL4000 Base, 2 Dual Goosenecks
Warranty: 1 Year
