Leica ICC50 HD Microscope Camera

Recently viewed

Leica ICC50 HD Microscope Camera
Leica ICC50 HD Microscope Camera
Leica ICC50 HD Microscope Camera
Leica ICC50 HD Microscope Camera

Leica ICC50 HD Microscope Camera

  • SKU: 13613725
$1,000.00 $1,763.00
Request Quote

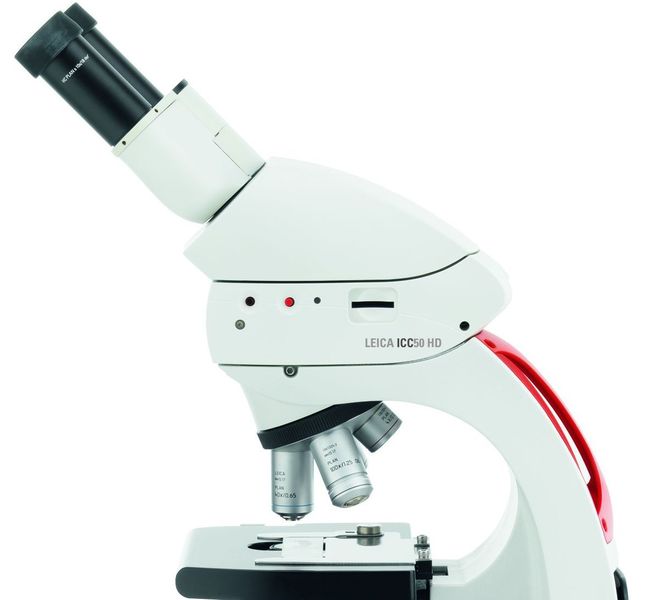

The Leica ICC50 HD microscope camera can turn any Leica DM series microscope into a digital microscope. It gets mounted between the head and body of the microscope so it does not require a trinocular head or c-mount adapter. This camera is also compatible with several Olympus models, such as the BX series microscopes. Due to its mounting position the camera produces higher quality images with a faster frame rate than traditional c-mount cameras since the image is closer to the camera sensor. This camera is a 3.0 M.P. camera, which is ideal for microscopy. It can output via HDMI cable to a monitor / projector and you can capture images / videos to a removable SD card. It can also output USB to a computer to use with the free Leica LAS EZ software which allows for image capture, video capture, annotations, measurements, etc.

This camera has been replaced with the Leica ICC50 W which has WiFi output features added. We have a limited number of demo cameras left in stock that are fully functional with a 1 year warranty.



Specifications:
Exposure time: 2 msec – 2 sec
Live image: 45 fps (1280 × 720 Px) – 20 fps (1920 × 1080 Px), depending on brightness level
Full frame image acquisition: 2048 × 1536 pixels, 3.1 megapixels
Movie clip: 720 × 480 pixels (MP4)
Color depth: 24-bit
Data format: JPEG / TIFF / BMP / MP4
Operating systems: Windows XP, Windows Vista, Windows 7, 8, 10 Macintosh OS X
Software: Leica LAS EZ software (PC), optional Leica LAS modules, Leica Acquire (Macintosh)
Minimum Computer Configuration: Intel Pentium 4 or DuoCore, 2GHz, 2 GB RAM, 24-bit graphics, 1248 × 1024, DVD drive
Minimum Display Specification: 1920 × 1080 resolution, HDMI connection, DVI connection possible with HDMI/DVI adapter cable (not provided) Note that some displays require that you switch the camera live HD resolution to 1280 × 720 Px.
Mics. Includes HDMI cable & Power Cable



The Leica ICC50 HD microscope camera can turn any Leica DM series microscope into a digital microscope. It gets mounted between the head and body of the microscope so it does not require a trinocular head or c-mount adapter. This camera is also compatible with several Olympus models, such as the BX series microscopes. Due to its mounting position the camera produces higher quality images with a faster frame rate than traditional c-mount cameras since the image is closer to the camera sensor. This camera is a 3.0 M.P. camera, which is ideal for microscopy. It can output via HDMI cable to a monitor / projector and you can capture images / videos to a removable SD card. It can also output USB to a computer to use with the free Leica LAS EZ software which allows for image capture, video capture, annotations, measurements, etc.

This camera has been replaced with the Leica ICC50 W which has WiFi output features added. We have a limited number of demo cameras left in stock that are fully functional with a 1 year warranty.



Specifications:
Exposure time: 2 msec – 2 sec
Live image: 45 fps (1280 × 720 Px) – 20 fps (1920 × 1080 Px), depending on brightness level
Full frame image acquisition: 2048 × 1536 pixels, 3.1 megapixels
Movie clip: 720 × 480 pixels (MP4)
Color depth: 24-bit
Data format: JPEG / TIFF / BMP / MP4
Operating systems: Windows XP, Windows Vista, Windows 7, 8, 10 Macintosh OS X
Software: Leica LAS EZ software (PC), optional Leica LAS modules, Leica Acquire (Macintosh)
Minimum Computer Configuration: Intel Pentium 4 or DuoCore, 2GHz, 2 GB RAM, 24-bit graphics, 1248 × 1024, DVD drive
Minimum Display Specification: 1920 × 1080 resolution, HDMI connection, DVI connection possible with HDMI/DVI adapter cable (not provided) Note that some displays require that you switch the camera live HD resolution to 1280 × 720 Px.
Mics. Includes HDMI cable & Power Cable
