Leica DMS300 Digital Measuring Microscope With Märzhäuser Stage
Leica DMS300 Digital Measuring Microscope With Märzhäuser Stage
Leica DMS300 Digital Measuring Microscope With Märzhäuser Stage

Leica DMS300 Digital Measuring Microscope With Märzhäuser Stage

  • SKU: DMS300-MEA
$10,500.00
Quote Request

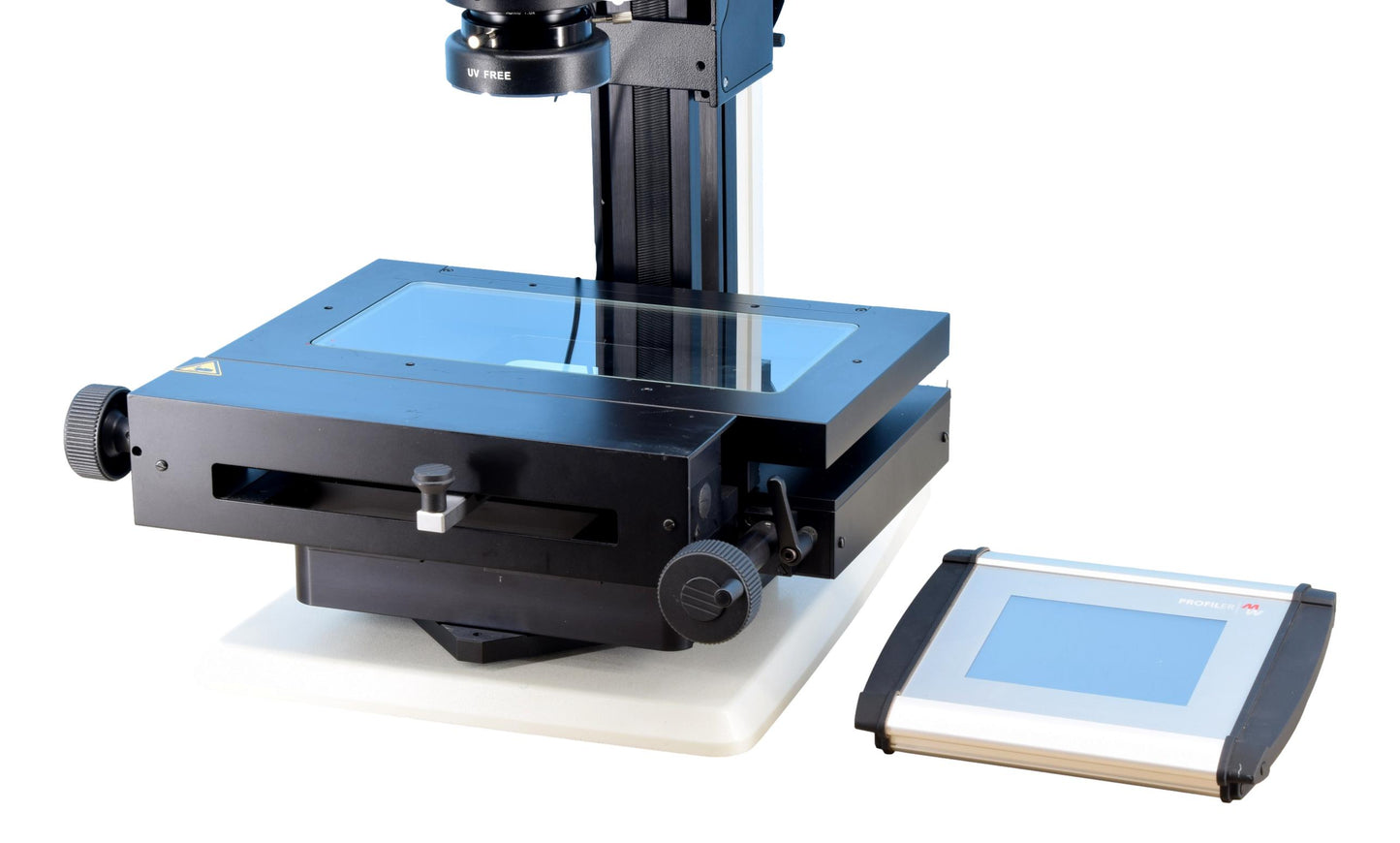

This Leica DMS300 is configured to perform as a digital measuring microscope with Märzhäuser manual measuring stage with digital read-out. The Leica DMS300 can output USB to a computer, or HDMI to a monitor.  With the included 1.0x lens, and output to a 10" monitor this system provides a zoom range of 8.5x - 61.8x. This system can also be used as a basic imaging system as the Leica DMS300 can capture images / videos to an SD card while used in HDMI mode, or capture to your PC when in USB mode. To use this system as a measuring you would output the Leica DMS300 via HDMI cable to a monitor and display the cross-hair overlay. Then you line up the starting point with the corss-hair and move the stage in the X or Y axis. As you move the stage the digital readout screen will display the distance the stage has traveled which translates to the measurement.

An HDMI monitor is not include however for an additional cost we can supply a monitor as well as mounting brackets that allow the monitor to attach to the back of the stand creating an all-in-one solution.

This is a used system, all parts have been tested and are working like new. The firmware on the DMS300 has been updated to the most recent firmware and this system comes with a warranty. A custom assembly video will be provided to help you get this system up and running.



Specifications
Total Magnification: 8.5x - 61.8x (Viewed on 10" Screen)
Camera: Built-In 2.5 M.P. Camera outputs HDMI or USB
Objective: 1.0x Achromatic
Stand: Coarse / Fine Focus Stand w/ 620mm Column
Illumination: LED Ring Light
Stage: Marzhauser Manual Measuring Stage MT200 x 100 MR with Digital Read-out for X / Y Axis
Accessories: HDMI Cable, Remote Control, SD Card
Warranty: 6 Month
