Leica DMLS Phase Contrast & Darkfield Microscope

Recently viewed

Leica DMLS Phase Contrast & Darkfield Microscope
Leica DMLS Phase Contrast & Darkfield Microscope

Leica DMLS Phase Contrast & Darkfield Microscope

  • SKU: DMLS-PH-S-B
$2,850.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Head
Phase
Request Quote

The Leica DMLS phase contrast darkfield microscope comes with your choice of binocular or trinocular viewing heads. You can choose between a phase slider which will provide phase contrast and brightfield, or a phase turret condenser which has phase, darkfield, and brightfield. The microscope comes with a pair of 10x/22mm FOV eyepieces. It has four objectives, Hi Plan 4x, and Hi Plan Phase 10x, 40x, and 100x Oil objectives. We can supply other objectives if needed. This used microscope comes fully serviced with a warranty.



Specifications
Head: Binocular or Trinocular Head
Eyepieces: 10x/22mm Focusable Widefield Eyepieces
Nosepiece: 5 Place Nosepiece
Objectives: Hi Plan 4x, Hi Plan Phase 10x, 40x, 100x Oil Objectives
Condenser:

Slider - 1.25 N.A. Condenser with Phase & Brightfield Settings - or-

Turret - Phase Turret Condenser - Phase, Darkfield, and Brightfield settings

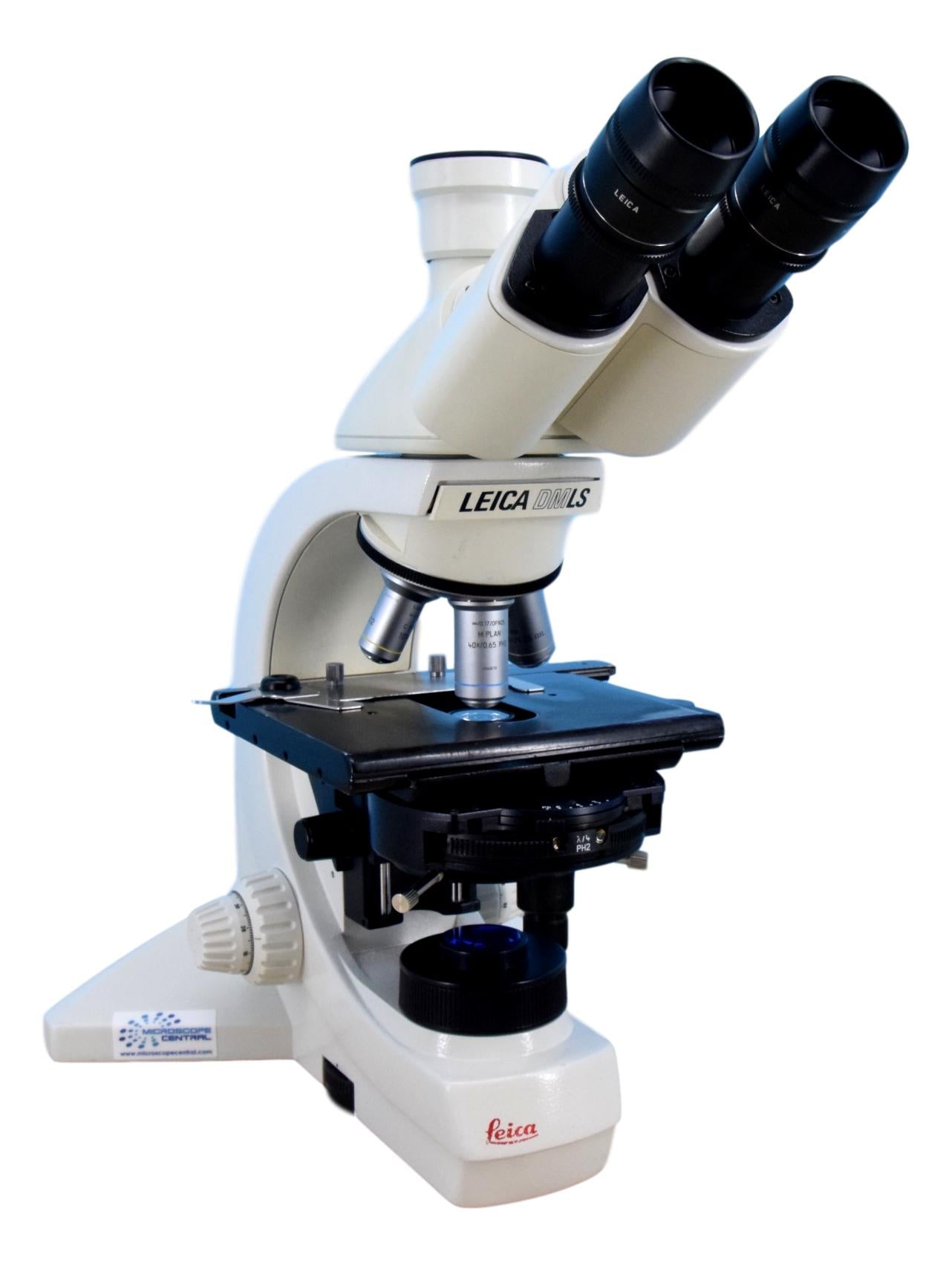

*Photos show turret option*

Stage: Right Hand Mechanical X/Y Stage
Illumination: 12V 30 watt Transmitted Light Base
Focusing: Coaxial focusing system
Warranty: 1 Year

The Leica DMLS phase contrast darkfield microscope comes with your choice of binocular or trinocular viewing heads. You can choose between a phase slider which will provide phase contrast and brightfield, or a phase turret condenser which has phase, darkfield, and brightfield. The microscope comes with a pair of 10x/22mm FOV eyepieces. It has four objectives, Hi Plan 4x, and Hi Plan Phase 10x, 40x, and 100x Oil objectives. We can supply other objectives if needed. This used microscope comes fully serviced with a warranty.



Specifications
Head: Binocular or Trinocular Head
Eyepieces: 10x/22mm Focusable Widefield Eyepieces
Nosepiece: 5 Place Nosepiece
Objectives: Hi Plan 4x, Hi Plan Phase 10x, 40x, 100x Oil Objectives
Condenser:

Slider - 1.25 N.A. Condenser with Phase & Brightfield Settings - or-

Turret - Phase Turret Condenser - Phase, Darkfield, and Brightfield settings

*Photos show turret option*

Stage: Right Hand Mechanical X/Y Stage
Illumination: 12V 30 watt Transmitted Light Base
Focusing: Coaxial focusing system
Warranty: 1 Year
