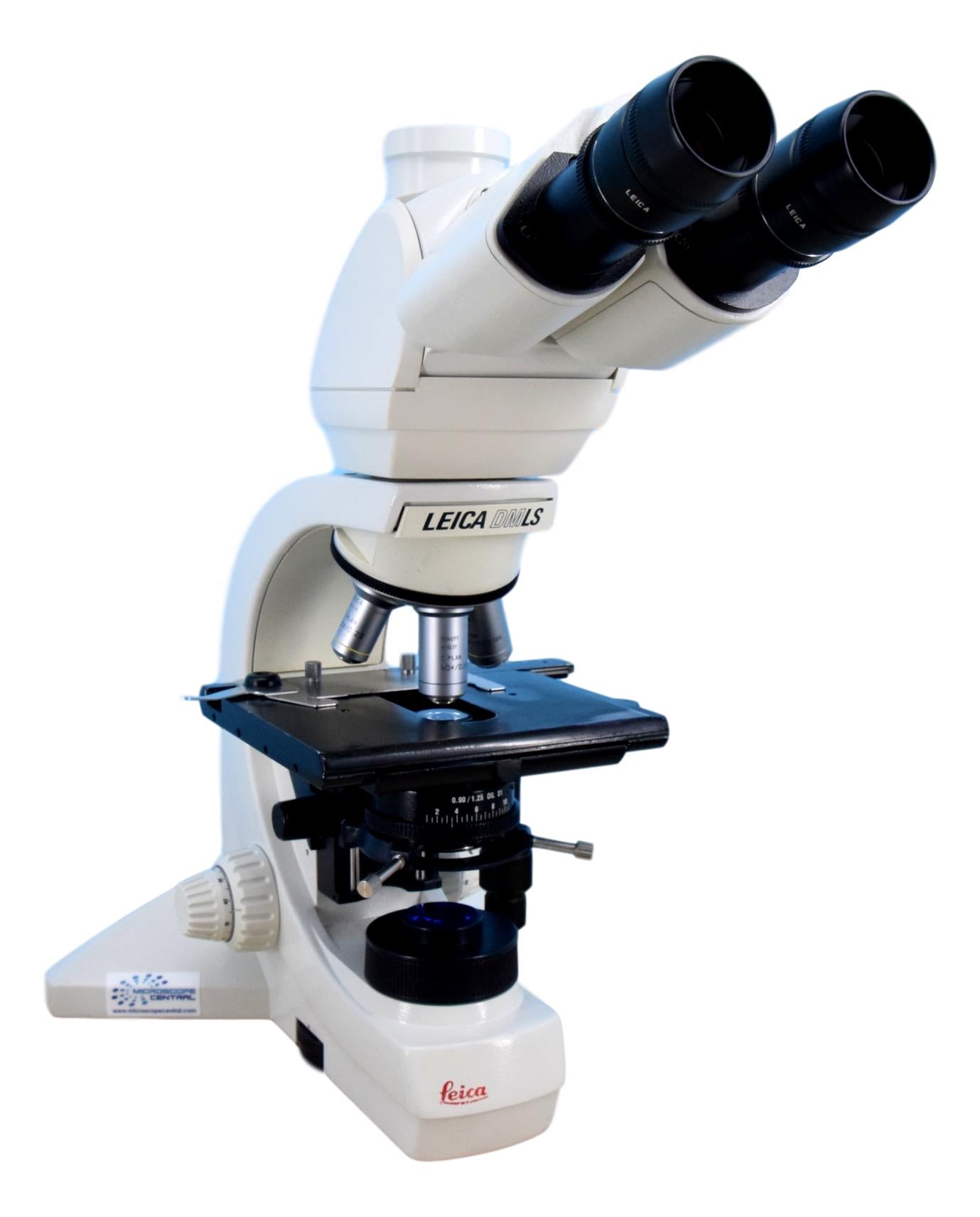

Leica DMLS Binocular Microscope

Leica DMLS Binocular Microscope

The Leica DMLS is a high quality laboratory brightfield microscope. The Leica DMLS binocular microscope has a Koehler illumination system with 12v/30w halogen bulb, field...

$1,200.00
Request Quote
Add to wishlist

The Leica DMLS is a high quality laboratory brightfield microscope. The Leica DMLS binocular microscope has a Koehler illumination system with 12v/30w halogen bulb, field iris, focusing and centering condenser carrier, condenser with iris diaphragm. Standard features include the X/Y mechanical stage with right hand controls, and 10x/22mm focusing eyepieces.

**Additional parts, accessories and configurations are available for this Leica binocular microscope - Please contact us**

Microscope Specifications
Head: Binocular viewing head
Eyepieces: 10x WF eyepieces - One focusing eyetube
Objectives:

C Plan 4x

C Plan 10x/0.22

C Plan 40x/0.65                       *OTHER OBJECTIVES AVAILABLE*

C Plan 100x/1.25 OIL

Stage:

Rackless Mechanical focusing XY Stage

Slide holder included

Condenser:

Abbe 0.90/1.25 OIL S1 condenser with diaphragm and diffusion disk

Height adjustable with thumb screws for Kohler illumination

Focus: Coaxial coarse/fine focus controls
Illumination: 12V-30W halogen lamp
Misc: Power cord included
Warranty: 1 year
