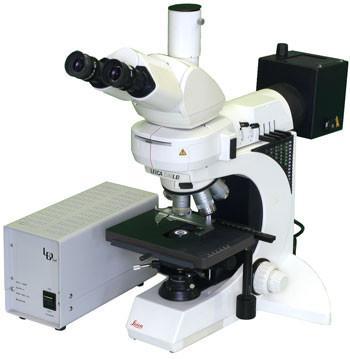

Leica DMLB Transmitted and Reflected Light Fluorescence Upright Microscope

Leica DMLB Transmitted and Reflected Light Fluorescence Upright Microscope

The LEICA DMLB offers exemplary stability as a research grade microscope, particularly for photomicrography or digital imaging. Recognized as a leading microscope for pathology, biology,...

$13,000.00
Request Quote
Add to wishlist

The LEICA DMLB offers exemplary stability as a research grade microscope, particularly for photomicrography or digital imaging. Recognized as a leading microscope for pathology, biology, bontany, neuroscience and aquatic studies the LEICA DM LB can be equipped to handle any imaging task.

Specifications
Head: Trinocular Viewing Head with 10x/20 Eyepieces
Eyepieces: HC Plan 10x/22mm Widefield Eyepieces
Objectives: 5x PL Fluotar Objective 0.12NA 13.1mm WD
10x PL Fluotar Objective 0.30NA 4.9mm WD
20x PL Fluotar Objective 0.50NA .50mm WD
40x PL Fluotar Objective 0.70NA .41mm WD
Condenser: 0.90/1.25NA Condenser
Fluorescence: UV Filter Cube - Other Cubes available, Please Contact Us
Stage: Right Hand XY Mechanical stage with slide holder
Illumination: - Reflected Light Illuminator with 100w Mercury Lamphouse and Power Supply
- 30w Halogen Transmitted Light
Focusing: Coaxial focusing system
Warranty: 1 Year Mechanical & Electrical
Please Note: Additional components for this microscope are available.  Please contact us for a formal quote or information on additional parts.
