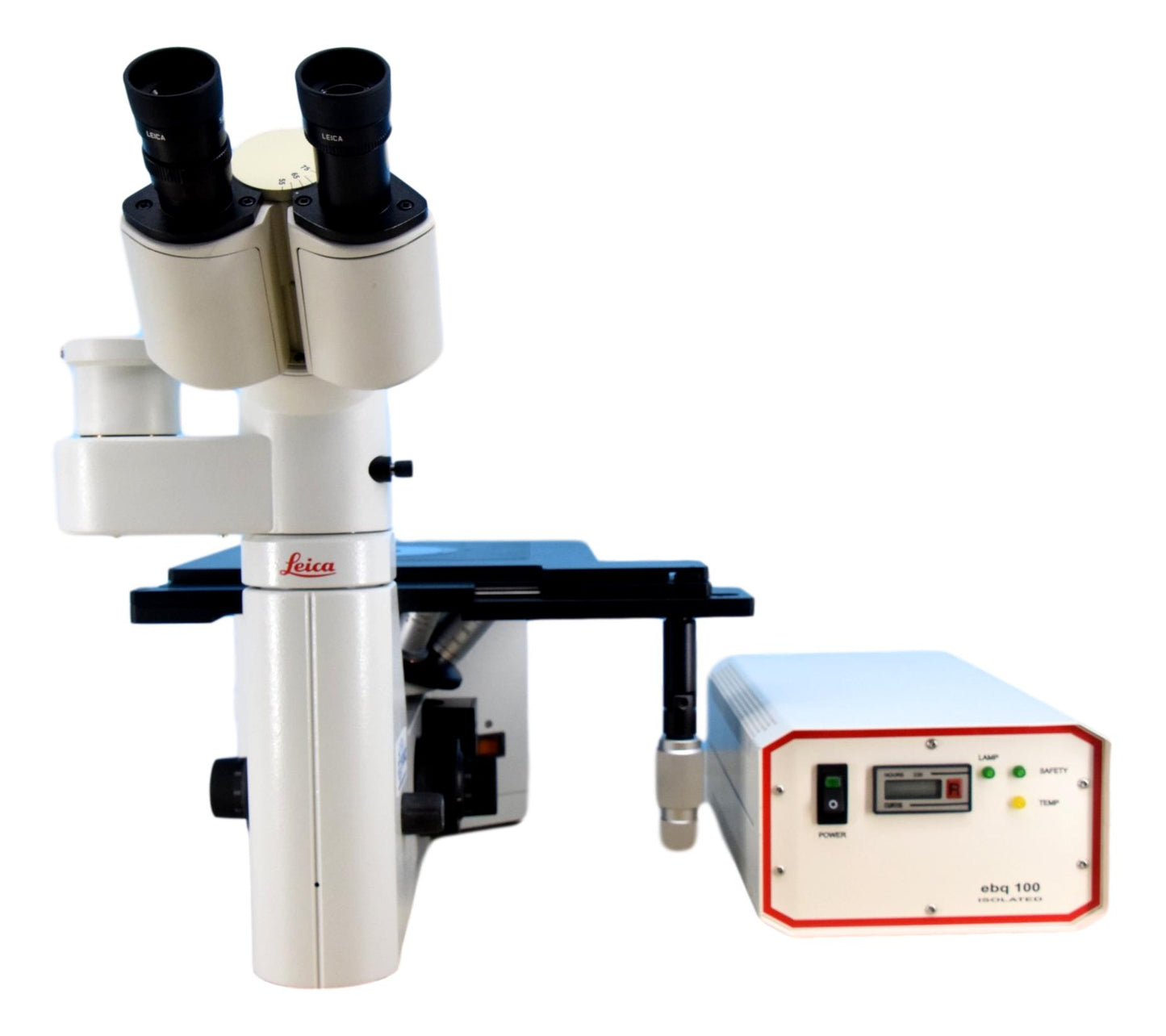

Leica DMIL Inverted Fluorescence Microscope
- SKU: DMILM-FL
- Binocular w/ Photo Port
- 3 Position Fluorescence
- Can Customize The Objectives
- Serviced By Experienced Techs
- With Warranty
The Leica DMIL inverted fluorescence microscope is for florescence only, this model does not have brightfield reflected light as it uses the Leica DMILM microscope stand. The comes with a binocular viewing head with a photo port so that you can add a camera to the microscope. The 10x eyepieces provide a 20mm field of view. The microscope comes with Hi Plan 4x,10x, and 20x objectives. We can upgrade or swap these out as needed. The XY mechanical stage makes it easy to move your sample around. This includes a mercury lamphouse and power supply with a 3 position fluorescence slider to accommodate up to 3 filters. Filters are not included and can be added as needed.
Specifications | |
---|---|
Head: | Binocular w/ photo port |
Eyepieces: | 10x/20mm |
Nosepiece: | 5 Place Nosepiece |
Objectives: | Hi Plan 4x, 10x, 20x |
Stage: | Mechanical XY |
Fluorescence: |
Mercury lamphouse & power supply 3 Position filter holder (filters not included, can be added) |
Focusing: | Coarse & Fine |
Illumination: | Mercury |
Warranty: | 2 Year |
The Leica DMIL inverted fluorescence microscope is for florescence only, this model does not have brightfield reflected light as it uses the Leica DMILM microscope stand. The comes with a binocular viewing head with a photo port so that you can add a camera to the microscope. The 10x eyepieces provide a 20mm field of view. The microscope comes with Hi Plan 4x,10x, and 20x objectives. We can upgrade or swap these out as needed. The XY mechanical stage makes it easy to move your sample around. This includes a mercury lamphouse and power supply with a 3 position fluorescence slider to accommodate up to 3 filters. Filters are not included and can be added as needed.
Specifications | |
---|---|
Head: | Binocular w/ photo port |
Eyepieces: | 10x/20mm |
Nosepiece: | 5 Place Nosepiece |
Objectives: | Hi Plan 4x, 10x, 20x |
Stage: | Mechanical XY |
Fluorescence: |
Mercury lamphouse & power supply 3 Position filter holder (filters not included, can be added) |
Focusing: | Coarse & Fine |
Illumination: | Mercury |
Warranty: | 2 Year |
