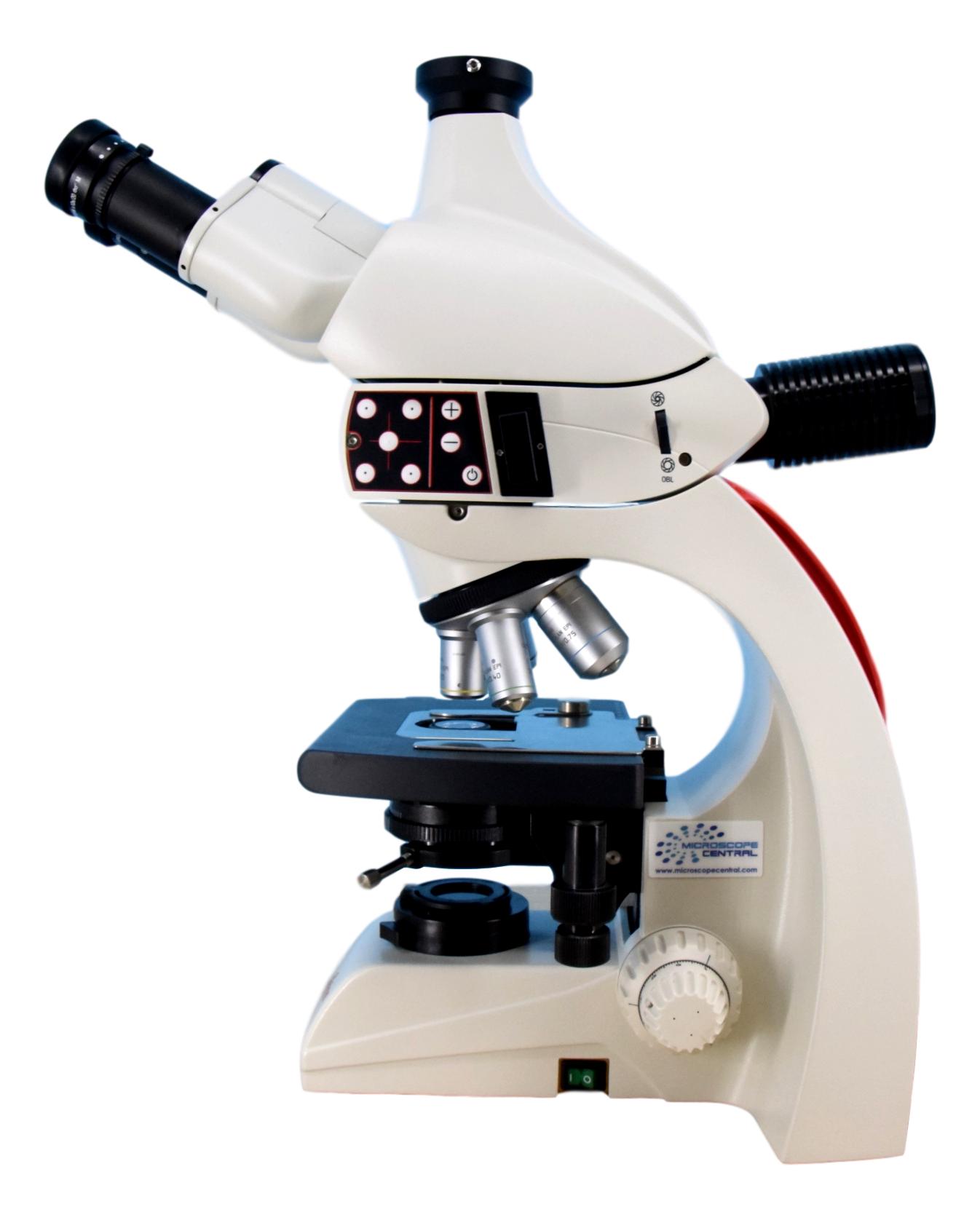

Leica DM750 M Metallurgical Microscope
Leica DM750 M Metallurgical Microscope

Leica DM750 M Metallurgical Microscope

  • SKU: 13613115
$7,250.00
  • Trinocular Head
  • Reflected & Transmitted Illumination
  • Polarized Light
  • Serviced By Experienced Techs
  • With Warranty
Quote Request

The Leica DM750 M upright metallurgical microscope offers both transmitted and reflected light illumination. It can accept  This metallurgical microscope uses an LED reflected light illuminator which has 4 light segments to provide for oblique illumination. The ability to control the reflect light illumination brings out characteristics and features you may not see under normal illumination. The microscope comes with a trinocular viewing head so that you can add a camera at anytime. The LED reflected light illuminator has a slot for an analyzer and comes with a 180 degree rotating analyzer. This microscope has both reflected light and transmitted light polarization This comes with Hi Plan EPI 5x, 10x, 20x, N Plan EPI 50x objectives. The XY mechanical stage comes with a sample holder to hold samples with a height of up to 30mm. The transmitted LED illumintion is koehler. This used microscope has been fully serviced by our factory trained technicians and comes with a warranty.



Specifications
Head: Trinocular
Eyepieces: 10x/20mm
Reflected Light:

LED reflected light illuminator w/ 4 segments, aperture diaphragm

180 degree rotatable analyzer and polarizer

Nosepiece: 5 Place Nosepiece
Objectives: Hi Plan EPI 5x, 10x,20x, N Plan EPI 50x
Stage: Mechanical XY w/ specimen holder
Focusing: Coarse & Fine
Illumination: LED transmitted koehler with polarizing capabilities
Warranty: 3 Year

The Leica DM750 M upright metallurgical microscope offers both transmitted and reflected light illumination. It can accept  This metallurgical microscope uses an LED reflected light illuminator which has 4 light segments to provide for oblique illumination. The ability to control the reflect light illumination brings out characteristics and features you may not see under normal illumination. The microscope comes with a trinocular viewing head so that you can add a camera at anytime. The LED reflected light illuminator has a slot for an analyzer and comes with a 180 degree rotating analyzer. This microscope has both reflected light and transmitted light polarization This comes with Hi Plan EPI 5x, 10x, 20x, N Plan EPI 50x objectives. The XY mechanical stage comes with a sample holder to hold samples with a height of up to 30mm. The transmitted LED illumintion is koehler. This used microscope has been fully serviced by our factory trained technicians and comes with a warranty.



Specifications
Head: Trinocular
Eyepieces: 10x/20mm
Reflected Light:

LED reflected light illuminator w/ 4 segments, aperture diaphragm

180 degree rotatable analyzer and polarizer

Nosepiece: 5 Place Nosepiece
Objectives: Hi Plan EPI 5x, 10x,20x, N Plan EPI 50x
Stage: Mechanical XY w/ specimen holder
Focusing: Coarse & Fine
Illumination: LED transmitted koehler with polarizing capabilities
Warranty: 3 Year
