Leica DM500 HD Digital Microscope Package

Recently viewed

Leica DM500 HD Digital Microscope Package
Leica DM500 HD Digital Microscope Package
Leica DM500 HD Digital Microscope Package

Leica DM500 HD Digital Microscope Package

  • SKU: DM500-300
$2,800.00
  • Complete Digital Package
  • With or Without Screen
  • Plan Achromat 4x, 10x, 40x, 100x Oil Objectives
  • LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Camera
Request Quote

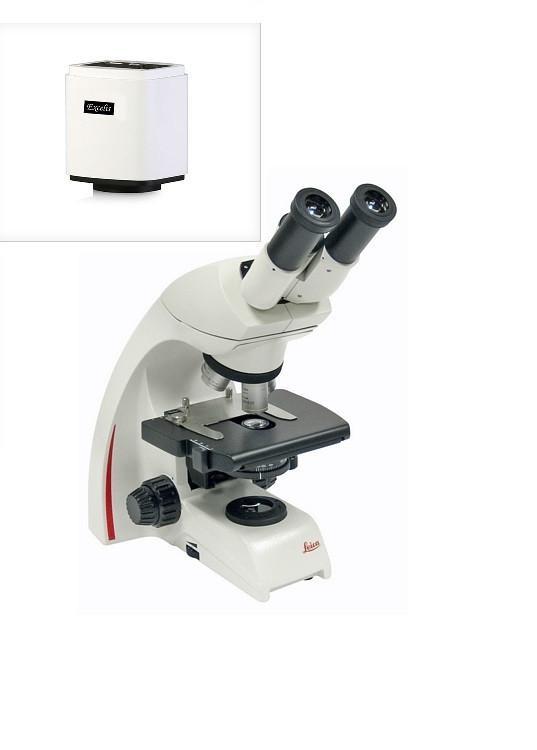

The Leica DM500 microscope is one of our best-selling all around microscopes. This is a complete digital package including the microscope with a trinocular head, c-mount adapter, and your choice of HD digital microscope camera. The microscope comes with Plan 4x, 10x, 40x, and 100x oil objectives. The rackless XY mechanical stage comes with an easy one handed slide holder. The stage has a scratch resistant surface. The condenser is fixed in position and has an iris which you can open or close for contrast. The LED illumination saves energy and you do not have to change the bulb! The microscope has a built in carry handle and cord wrap. The all brass gears make this microscope designed for years of use.

For the camera you can choose between the AU-300-HD, AU-600-HD, or the AU-600-HDS. All of these models are HDMI / USB output cameras. The AU-600-HDS comes with the screen so you have a live image right above your eyepieces.

Features:

  • Eyepieces are locked in and non-removable - Good for multi-user environment and students
  • Built in vertical handle - easy to pick up from high or low positions
  • Integrated cord wrap
  • Condenser is fixed - no need to center or align
  • Ag treat paint - Prevents the spread of disease
  • All BRASS gears
  • Durable & Dependable

Microscope Specifications:

Head: Trinocular 45° EZ Tube with pointer
Eyepieces: Integrated 10x/18mm 1 with pointer
Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination



Excelis HD Lite Specifications
Resolution (Live): 1920X1080   5 M.P.
Sensor: 1/2.5" (0.5x C-mount recommended); SONY MT9P006
Frame Rate: HDMI (30fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB) or USB to computer
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



Excelis AU-600-HD Specifications
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 Excelis AU-600-HDS Specifications
Screen: 11.6 Inch HD Retina Display Screen
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

The Leica DM500 microscope is one of our best-selling all around microscopes. This is a complete digital package including the microscope with a trinocular head, c-mount adapter, and your choice of HD digital microscope camera. The microscope comes with Plan 4x, 10x, 40x, and 100x oil objectives. The rackless XY mechanical stage comes with an easy one handed slide holder. The stage has a scratch resistant surface. The condenser is fixed in position and has an iris which you can open or close for contrast. The LED illumination saves energy and you do not have to change the bulb! The microscope has a built in carry handle and cord wrap. The all brass gears make this microscope designed for years of use.

For the camera you can choose between the AU-300-HD, AU-600-HD, or the AU-600-HDS. All of these models are HDMI / USB output cameras. The AU-600-HDS comes with the screen so you have a live image right above your eyepieces.

Features:

  • Eyepieces are locked in and non-removable - Good for multi-user environment and students
  • Built in vertical handle - easy to pick up from high or low positions
  • Integrated cord wrap
  • Condenser is fixed - no need to center or align
  • Ag treat paint - Prevents the spread of disease
  • All BRASS gears
  • Durable & Dependable

Microscope Specifications:

Head: Trinocular 45° EZ Tube with pointer
Eyepieces: Integrated 10x/18mm 1 with pointer
Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination



Excelis HD Lite Specifications
Resolution (Live): 1920X1080   5 M.P.
Sensor: 1/2.5" (0.5x C-mount recommended); SONY MT9P006
Frame Rate: HDMI (30fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB) or USB to computer
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



Excelis AU-600-HD Specifications
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 Excelis AU-600-HDS Specifications
Screen: 11.6 Inch HD Retina Display Screen
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
