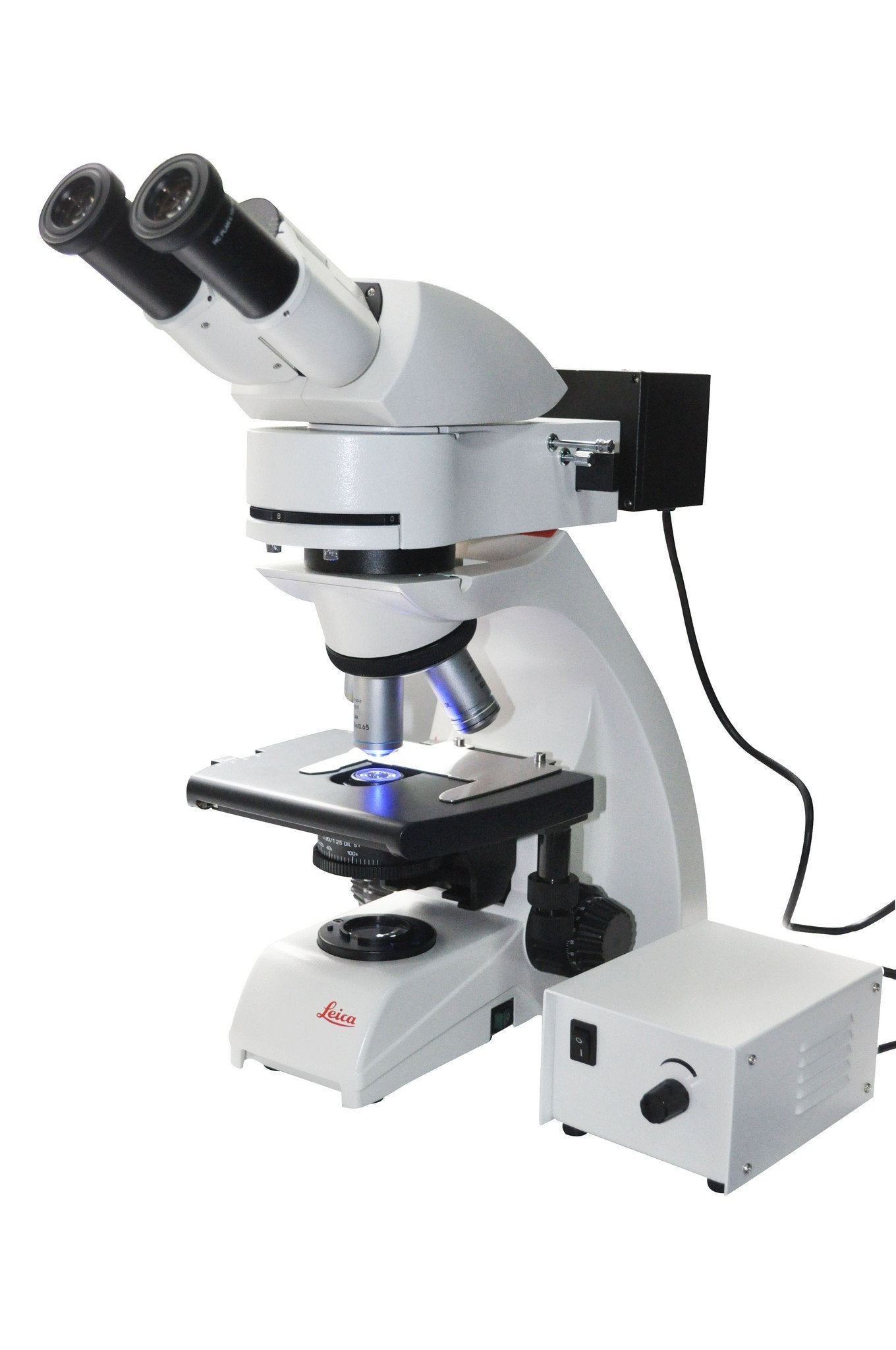

Leica DM500 Fluorescence Microscope

Leica DM500 Fluorescence Microscope

The Leica DM500 Fluorescence Microscope upgrades the Leica DM500 brightfield microscope to a single, dual, or three wavelength  LED fluorescence system. The LED fluorescence illumination...

$4,420.00
Request Quote
Add to wishlist

The Leica DM500 Fluorescence Microscope upgrades the Leica DM500 brightfield microscope to a single, dual, or three wavelength  LED fluorescence system. The LED fluorescence illumination eliminates the warm up/cool down period, bulb changes, and is pre-set with no centering necessary! All LED systems are 5 Watt with >50,000 hour lifespan. Includes 4x - 100x microscope objectives.

***For ordering single wavelength options please select single wavelength and specify the wavelength needed in the order notes sections before proceeding to checkout***

Leica Fluorescence Microscope Specifications:

Head: Binocular 45° EZ Tube with pointer or Trinocular
Eyepieces:

Binocualr Head Eyepieces: Integrated 10x/18mm with pointer

Trinocular Head Eyepieces: 10x/20mm with pointer

Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination
Warranty: 5 Year Mechanical 1 Year Electrical
Misc: Dust cover, power cord, oil, instruction cd



Single Wavelength Options:
Mode  LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength  Emission filter wavelength
FITC / GFP 475nm   460-490nm >500nm >510nm
Royal Blue 450nm 420-480nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm  510-550nm  >570nm >590nm
DAPI 365nm 330-380nm >400nm >420nm
Violet 405nm 395-415nm >420nm >440nm



Dual Wavelength Option 1:
Mode  LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength  Emission filter wavelength
FITC / GFP 475nm   460-490nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm  510-550nm  >570nm >590nm



Dual Wavelength Option 2:
Mode  LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength  Emission filter wavelength
Royal Blue 450nm 420-480nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm  510-550nm  >570nm >590nm



Three Wavelength Option:
Mode  LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength  Emission filter wavelength
FITC / GFP 475nm   460-490nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm  510-550nm  >570nm >590nm
DAPI 365nm 330-380nm >400 >420
