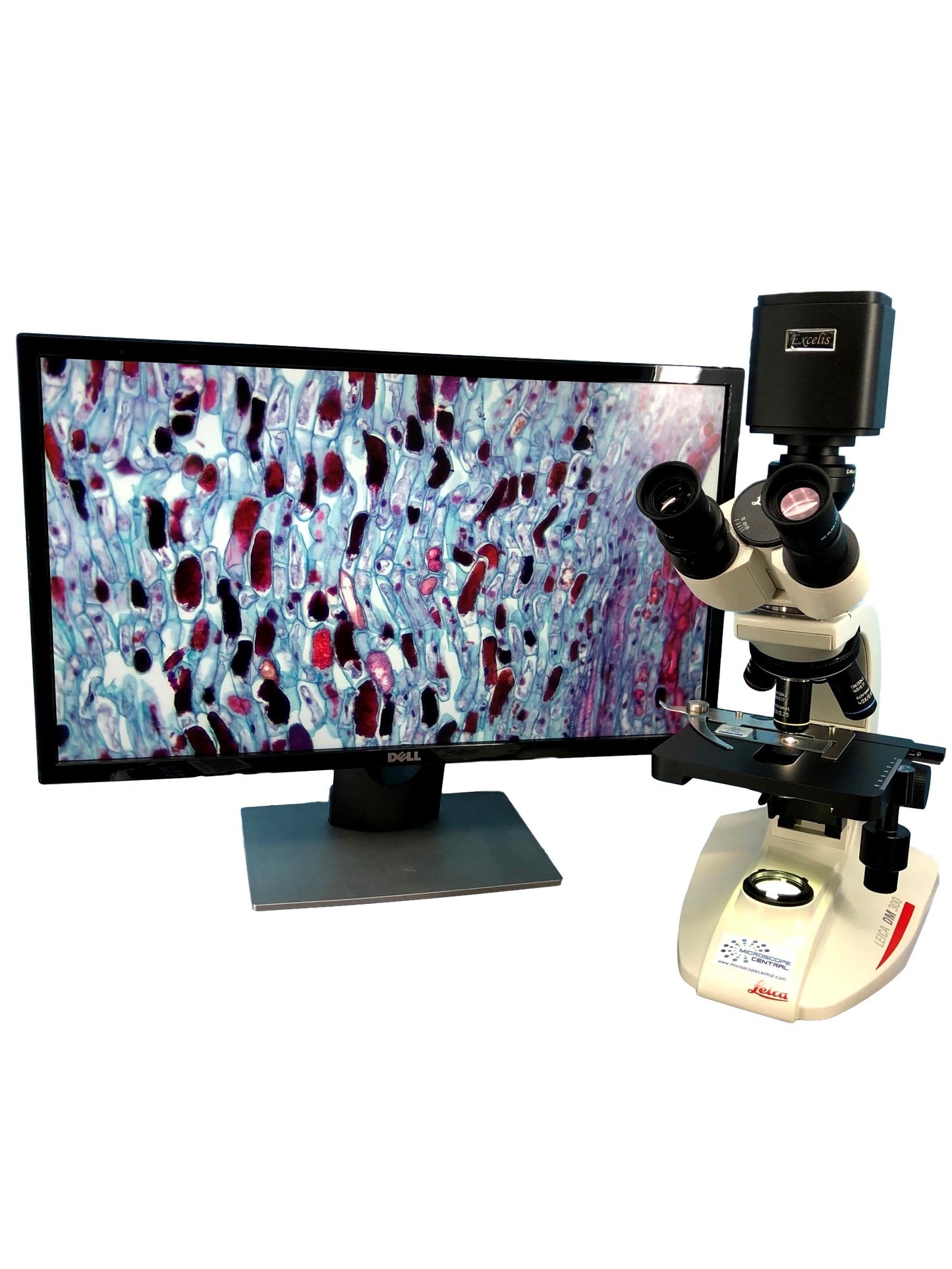

Leica DM300 HD Digital Microscope System

The Leica DM300 HD digital microscope system features an HDMI / USB output high definition camera. The microscope comes complete with trinocular head, c-mount adapter, and your HDMI camera of choice. The microscope head can rotate 360 degrees without having to loosen any thumbscrew. It comes with a pair of 10x/18mm FOV eyepieces. 4x, 10x, 40x, and 100x oil achromat objectives come with this microscope standard. The fixed condenser has an iris diaphragm which is marked for the optimal setting for each objective on the microscope, this provides optimal resolution. The XY mechanical stage provides smooth and precise movements. The LED illumination provides bright and even illumination.

There are two camera options for this package, both have the ability to ouput HDMI to a monitor or USB to a computer. When output HDMI to a monitor of your choice a mouse plugs into the top of the camera and on-board software will pop-up on your screen. It will give you the ability to adjust the camera settings and capture images / videos to a removable SD card. You can even play back captured images / videos and do a side-by-side live vs captured image. Furthermore you can add a grid and other overlays. Using the USB output method you can capture images / videos with the free software. The software also has measurement, focus stacking, and other features. The two camera options are the AU-300-HD or the AU-600-HD. The AU-300-HD has 5.0 M.P. and an APTINA sensor while the AU-600-HD has 6.0 M.P. and an SONY sensor. The AU-600-HD has the ability for live measurements when output via HDMI, while the AU-300-HD can only do measurements with USB output to a computer.

*Monitor not include, we can provide at an additional cost*
