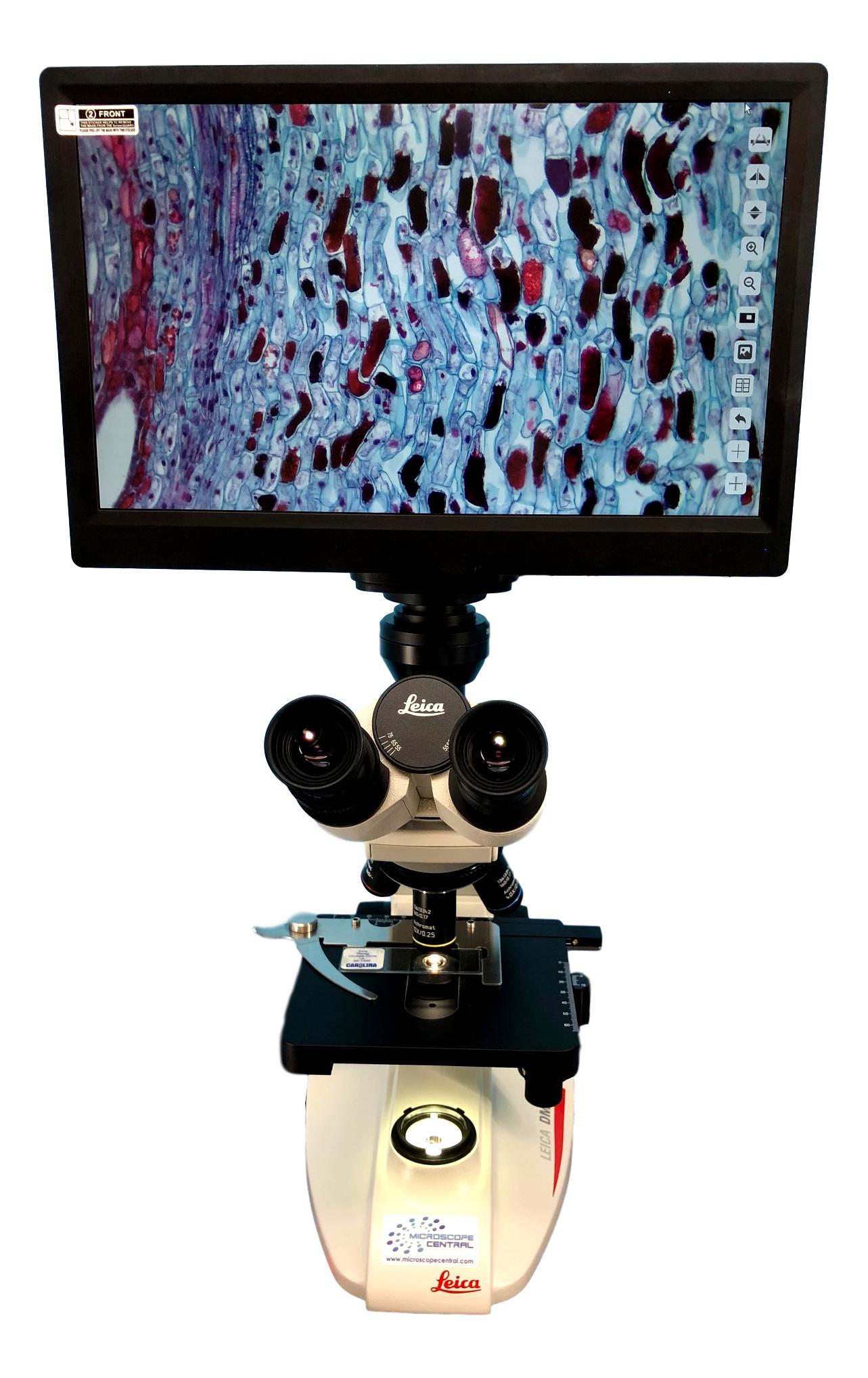

Leica DM300 Digital Microscope with Screen
Leica DM300 Digital Microscope with Screen
|
SKU: DM300-HDS-A
- 11.6" Retina Display HD Screen
- 4x, 10x, 40x, 100x Oil Objectives
- All Metal Gears
- LED Illumination
- 5 Year Mechanical & Electrical Warranty
Couldn't load pickup availability
Description
The Leica DM300 digital microscope comes complete with an HD screen to show a live image right above the eyepieces. The microscope comes with trinocular head, c-mount adapter, and camera with screen. The microscope head can rotate 360 degrees without having to loosen any thumbscrew. It comes with a pair of 10x/18mm FOV eyepieces. 4x, 10x, 40x, and 100x oil achromat or plan achromat objectives come with this microscope standard. The fixed condenser has an iris diaphragm which is marked for the optimal setting for each objective on the microscope, this provides optimal resolution. The XY mechanical stage provides smooth and precise movements. The LED illumination provides bright and even illumination.
The camera can be output to the screen included, HDMI to another screen, or USB to a computer. When output HDMI to a monitor of your choice a mouse plugs into the top of the camera and on-board software will pop-up on your screen. It will give you the ability to adjust the camera settings and capture images / videos to a removable SD card. You can even play back captured images / videos and do a side-by-side live vs captured image. Furthermore you can add a grid and other overlays. Using the USB output method you can capture images / videos with the free software. The software also has measurement, focus stacking, and other features.
|
Microscope Specifications |
|
|---|---|
| Head: | Trinocular w/ c-mount adapter |
| Eyepieces: | 10×/18 high eyepoint eyepieces |
| Objectives: | Achromat or Plan Achromat 4x, 10x, 40x, 100x Oil |
| Stage: | Mechanical Right handed Size: 13.5 cm (X) × 13.5 cm (Y) Travel: 7.8 cm (X) × 3.6 cm (Y) |
| Condenser: | NA = 0.9/1.25 oil – Adjustable diaphragm with magnification labels |
| Focus: | Coaxial focus controls, Self‑adjusting focus mechanism, 300 microns per fine focus rotation, Calibrated in 3 micron increments |
| Illumination: | LED illumination – 6000 K temp, 25,000 h life at full intensity |
| Misc: | Dust Cover, Power Cord, Manual, 5 Year Mechanical - 1 Year Electrical Warranty |
| Camera Specifications | |
|---|---|
| Resolution (Live): |
1920 x 1080 - Captured 5 M.P. 11.6" Retina Display Screen w/ Mouse |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
