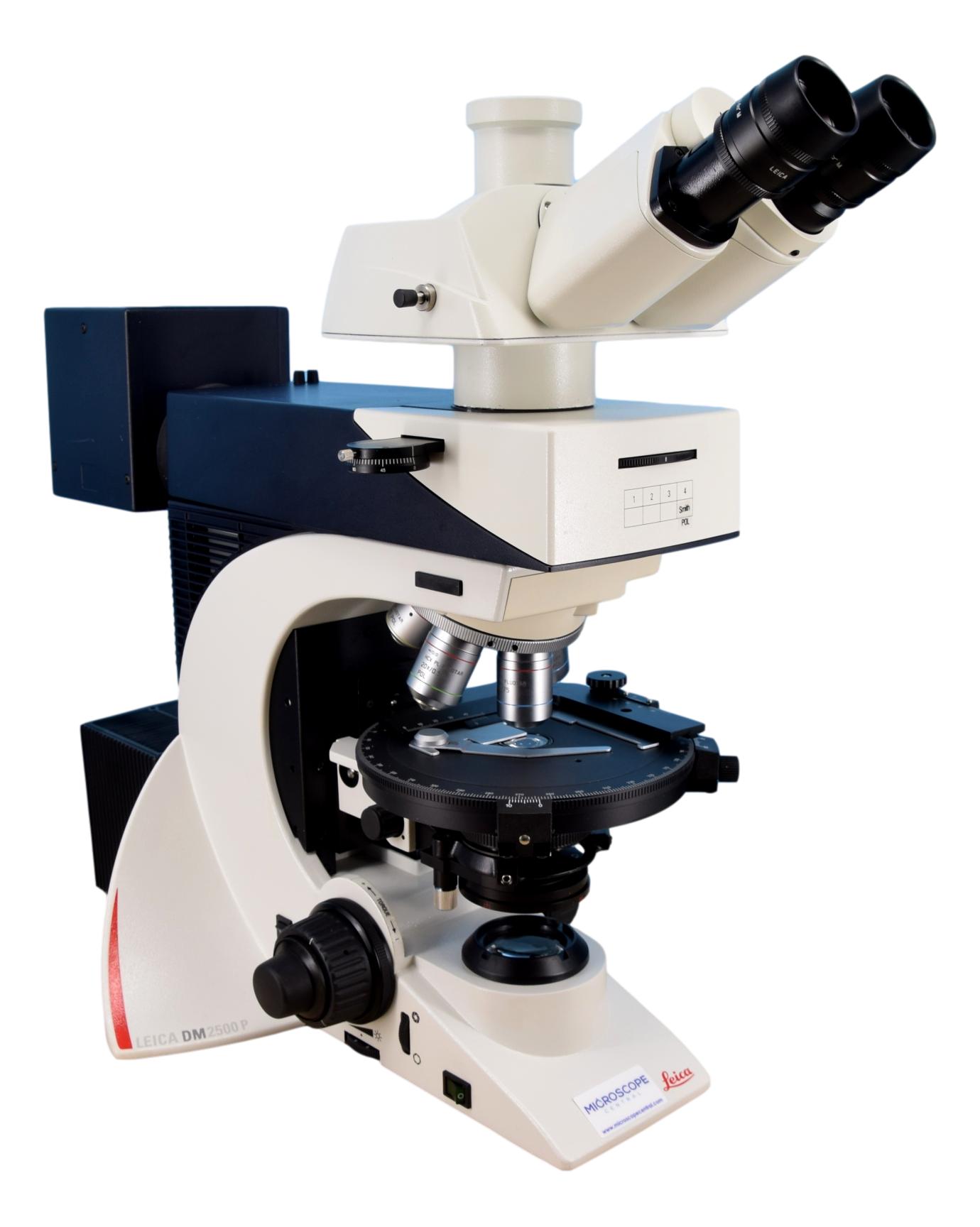

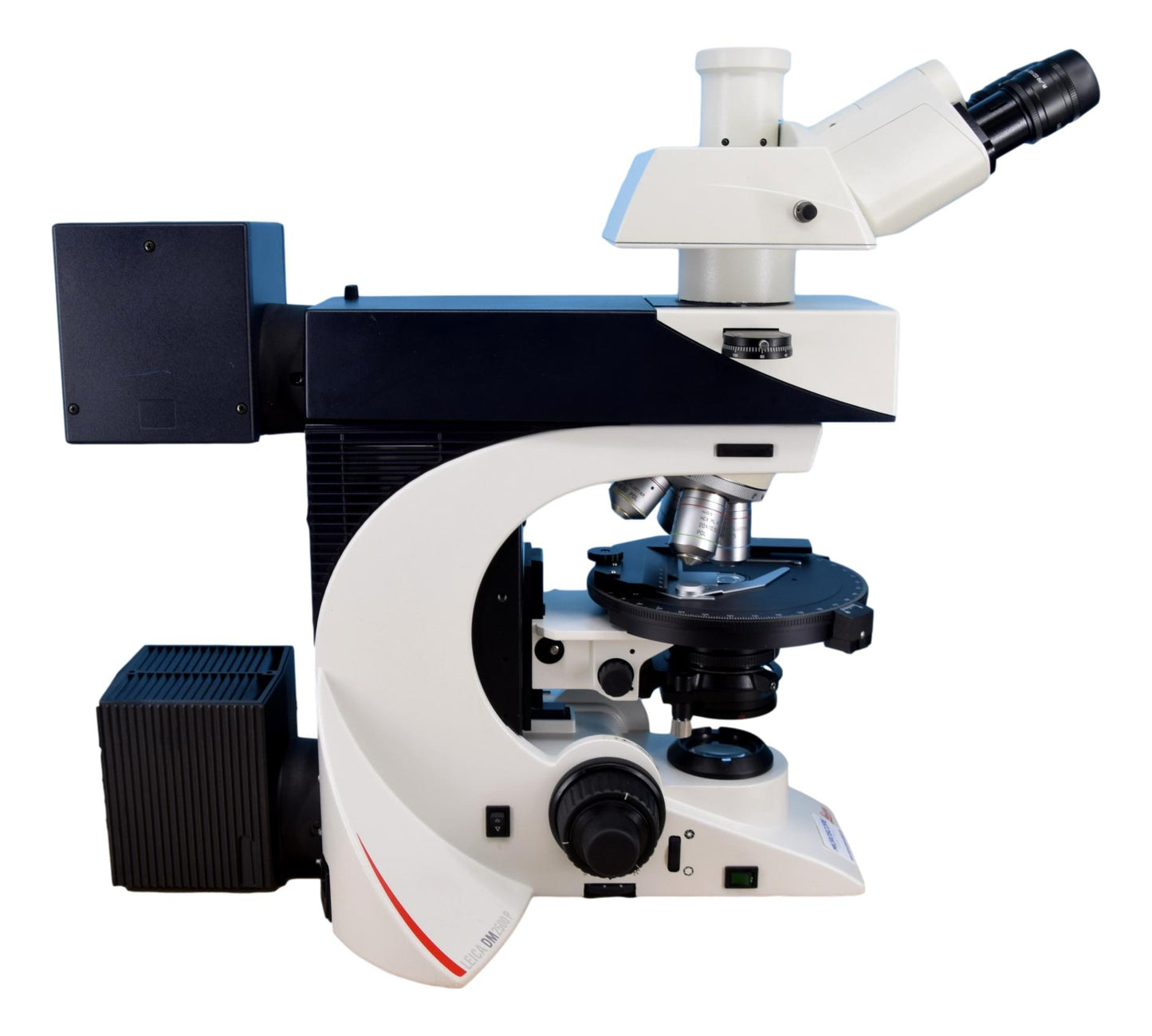

Leica DM2500 P Reflected & Transmitted Polarizing Light Microscope
- SKU: L-DM2500P
$18,950.00
- Fully Customizable
- Add A Camera
- Can Change The Stand, Head, Objectives
- Serviced By Experienced Techs
- With Warranty
This Leica DM2500 P is configured to provide reflected and transmitted light. The microscope comes with a trinocular viewing head and 10x/22mm FOV eyepieces. The trinocular viewing head is a 3-position head what has 100/0, 50/50, or 0/100 light split. The pol axis 4 position reflected light illuminator contains a built-in quartz wedge plate, revolving disc with 4 reflector positions (two fixed, and two variable), centerable aperture-and field diaphragm, filter magazine for 4 filters, and an analyzer slot. The reflected light illuminator houses the polarizer, rotatable analyzer, and smith cube. The 5 position centerable nosepiece comes equipped with HCX PL Fluotar 10x, 20x, 40x, 50x, and 100x objectives. The stage is fully rotating and comes with an object guide. The 0.85 N.A. strain free condenser has the swing out rotating polarizer directly below it. This high-quality polarizing light microscope can be fully customized to meet your needs. This used microscope comes serviced with a warranty.
| Leica DM2500 P Specifications | ||
|---|---|---|
| Head: | Trinocular Tube BDTP 25 100/50/0 | |
| Eyepieces: | HC Plan s 10x/22 Br. M | |
| Reflected Light |
Pol Axis 4 position reflected illuminator w/ built-in quartz wedge & smith cube Polarizer - 11555005 180 degree rotatable analyzer - 11555079 |
|
| Nosepiece: | 5 Position Centerable |
|
| Objectives: | HCX PL Fluotar 10x, 20x, 40x, 50x, 100x | |
| Stage: |
|
|
| Condenser | 0.85 N.A. Strain Free w/ swing out rotating polarizer | |
| Focusing: | Coarse/Fine Focus | |
| Illumination: | Halogen | |
| Warranty: | 2 Year Mechanical & Electrical | |
This Leica DM2500 P is configured to provide reflected and transmitted light. The microscope comes with a trinocular viewing head and 10x/22mm FOV eyepieces. The trinocular viewing head is a 3-position head what has 100/0, 50/50, or 0/100 light split. The pol axis 4 position reflected light illuminator contains a built-in quartz wedge plate, revolving disc with 4 reflector positions (two fixed, and two variable), centerable aperture-and field diaphragm, filter magazine for 4 filters, and an analyzer slot. The reflected light illuminator houses the polarizer, rotatable analyzer, and smith cube. The 5 position centerable nosepiece comes equipped with HCX PL Fluotar 10x, 20x, 40x, 50x, and 100x objectives. The stage is fully rotating and comes with an object guide. The 0.85 N.A. strain free condenser has the swing out rotating polarizer directly below it. This high-quality polarizing light microscope can be fully customized to meet your needs. This used microscope comes serviced with a warranty.
| Leica DM2500 P Specifications | ||
|---|---|---|
| Head: | Trinocular Tube BDTP 25 100/50/0 | |
| Eyepieces: | HC Plan s 10x/22 Br. M | |
| Reflected Light |
Pol Axis 4 position reflected illuminator w/ built-in quartz wedge & smith cube Polarizer - 11555005 180 degree rotatable analyzer - 11555079 |
|
| Nosepiece: | 5 Position Centerable |
|
| Objectives: | HCX PL Fluotar 10x, 20x, 40x, 50x, 100x | |
| Stage: |
|
|
| Condenser | 0.85 N.A. Strain Free w/ swing out rotating polarizer | |
| Focusing: | Coarse/Fine Focus | |
| Illumination: | Halogen | |
| Warranty: | 2 Year Mechanical & Electrical | |
