Leica DM1000 Hematology Microscope

Recently viewed

Leica DM1000 Hematology Microscope
Leica DM1000 Hematology Microscope
Leica DM1000 Hematology Microscope
Leica DM1000 Hematology Microscope

Leica DM1000 Hematology Microscope

  • SKU: DM1000-HEMA-B
$7,225.00 $7,606.00
  • Binocular, Ergonomic Binocular, or Trinocular Heads
  • 10x, 40x, 50x Oil, 100x Oil Objectives
  • Ergonomic Microscope
  • Koehler LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head
Quote Request

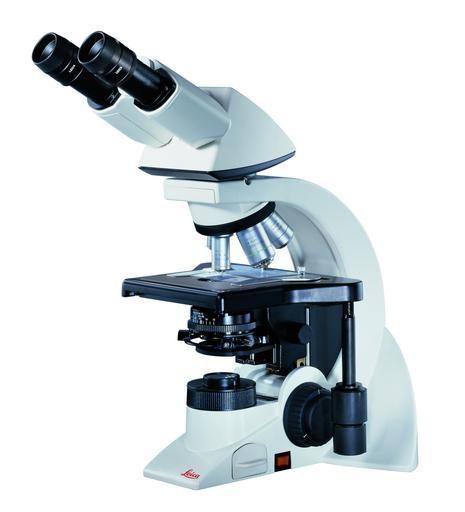

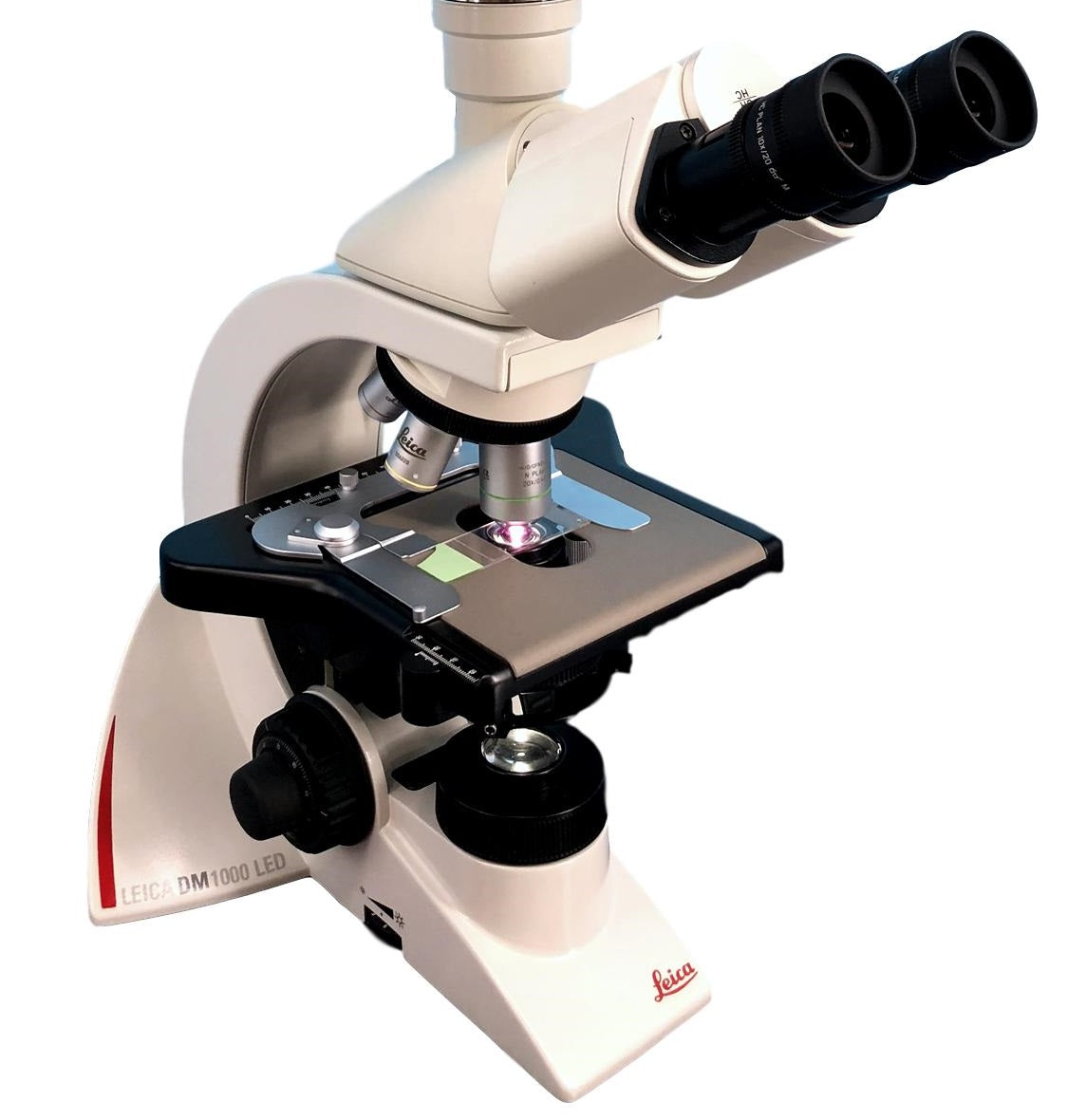

The Leica DM1000 hematology microscope comes with your choice of binocular, ergonomic tilting 0 - 35 degree binouclar, or trinocular head. The 10x eyepieces provide a large 22mm field of view. The Leica DM1000 LED is a high quality clinical grade microscope designed for high volume laboratories. It has ergonomic features and design so you can use the microscope for long periods of time.This comes with Hi Plan 10x, 40x, 50x oil (N Plan) and 100x oil objectives The XY mechanical stage provides smooth and precise movements and the ceramic stage insert ensures longevity. The koehler LED illumination eliminates the need for bulb changes.



Specifications
Head:

Choose:

Binocular, Ergonomic Tilting Binocular 0 - 35 degrees,  or Trinocular

Eyepieces: HC Plan 10x/22 Br. M Eyepieces
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 10x, 40x, 100x Oil - N Plan 50x Oil

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical

The Leica DM1000 hematology microscope comes with your choice of binocular, ergonomic tilting 0 - 35 degree binouclar, or trinocular head. The 10x eyepieces provide a large 22mm field of view. The Leica DM1000 LED is a high quality clinical grade microscope designed for high volume laboratories. It has ergonomic features and design so you can use the microscope for long periods of time.This comes with Hi Plan 10x, 40x, 50x oil (N Plan) and 100x oil objectives The XY mechanical stage provides smooth and precise movements and the ceramic stage insert ensures longevity. The koehler LED illumination eliminates the need for bulb changes.



Specifications
Head:

Choose:

Binocular, Ergonomic Tilting Binocular 0 - 35 degrees,  or Trinocular

Eyepieces: HC Plan 10x/22 Br. M Eyepieces
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 10x, 40x, 100x Oil - N Plan 50x Oil

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical

Leica DM1000 Brochure
