  • SKU: DM1000-DV-B-HI
$5,772.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Head
Objectives
Request Quote

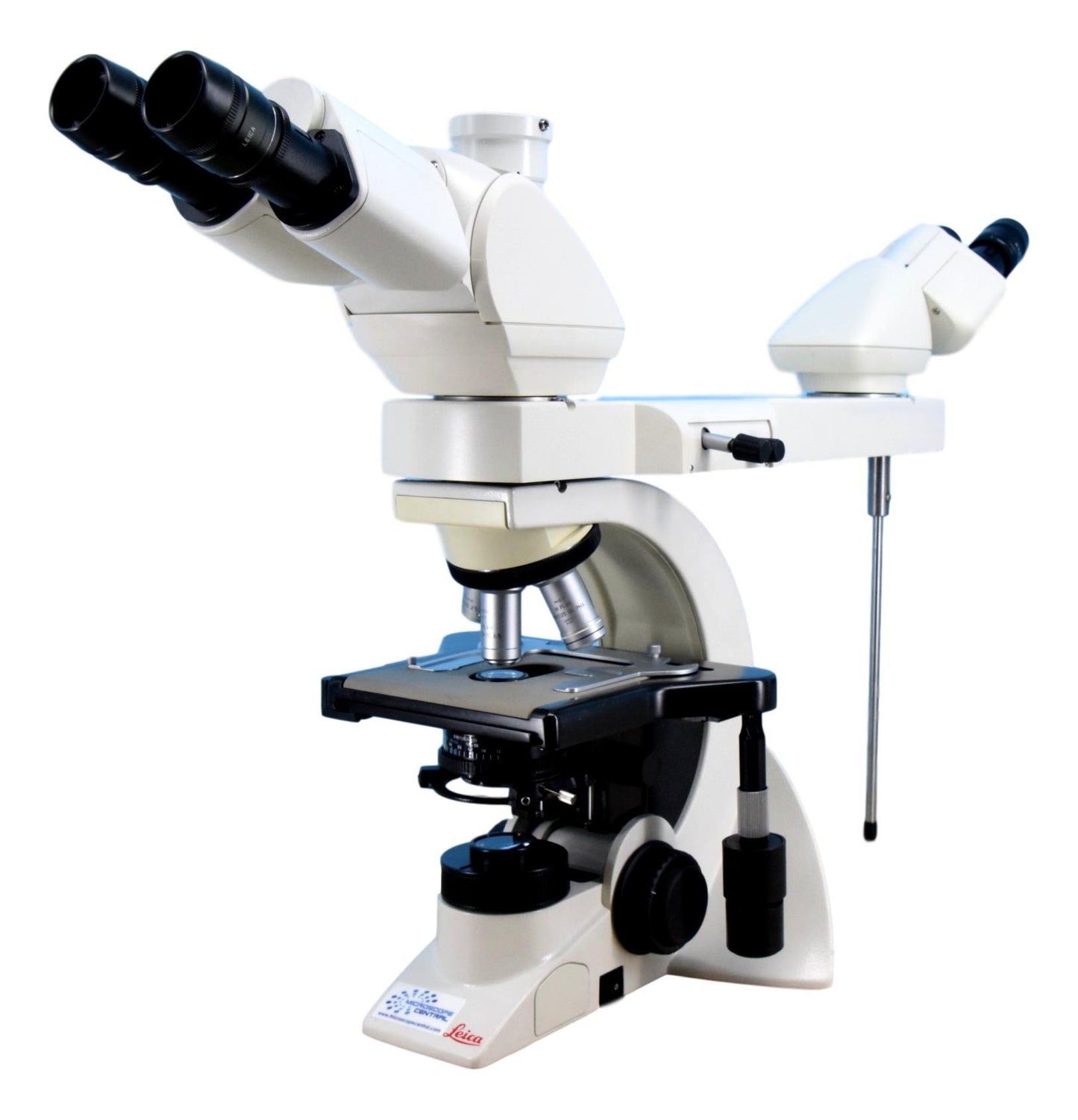

The Leica DM1000 dual viewing microscope can be positioned face-to-face, or side-by-side allowing two people to view through the microscope at the same time. The DM1000 is a high quality clinical / research grade microscope suitable for a wide range of applications from routine Biological work, Hematology, Urology, Cytology, and more. This microscope can be configured any way to meet your specific needs, but we have a few pre-configured options. You can choose from a binocular, ergo tilting binocular, trinocular, or ergo tilting trinocular main viewing head. A standard binocular viewing head will be provided for the secondary head, we can also upgrade this if needed.  All options will come with a Leica 10x/22mm FOV eyepieces, 20mm FOV eyepieces are provided for the secondary viewing head. The dual viewing bridge had a built-in LED pointer assembly. The microscope has a 6 position nosepiece and comes with your choice of Hi Plan 4x, 10x, 40x, 100x oil or N Plan 5x, 10x, 40x, 100x oil objectives. The mechanical stage platform has a ceramic insert for longevity and smooth slide movements. The XY stage stalk is telescoping to adjust the positioning incorporating ergonomics.



Leica DM1000 Specifications
Head:

Main: Binocular, Ergo Binocular, Trinocular, or Ergo Trinocular

Secondary: Binocular

Eyepieces:

Main: 10x/22mm FOV

Secondary: 10x/20mm FOV

Dual-Viewing:

Dual Viewing Bridge, Side-By-Side or Face-To-Face

LED Pointer

Nosepiece: 6 Position
Objectives:

Hi Plan 4x, 10x, 40x, 100x Oil

or

N Plan 5x, 10x, 40x, 100x Oil

Stage: Mechanical XY Stage w/ Ceramic Insert & Telescoping XY Stalk
Condenser 1.25 N.A.
Focusing: Coarse/Fine Focus
Illumination: Halogen w/ Blue Filter
Warranty: 2 Year Mechanical & Electrical
