Leica DM1000 Dual Viewing Digital Pathology Microscope - Face To Face
Leica DM1000 Dual Viewing Digital Pathology Microscope - Face To Face
Leica DM1000 Dual Viewing Digital Pathology Microscope - Face To Face

Leica DM1000 Dual Viewing Digital Pathology Microscope - Face To Face

  • SKU: DM1000-F2F-HD
$10,948.00 $11,525.00
  • HDMI / USB Output Camera With or Without Monitor
  • Face-To-Face Dual Bridge
  • 2.5x, 4x, 10x, 40x Objectives
  • Kohler LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Camera
Quote Request

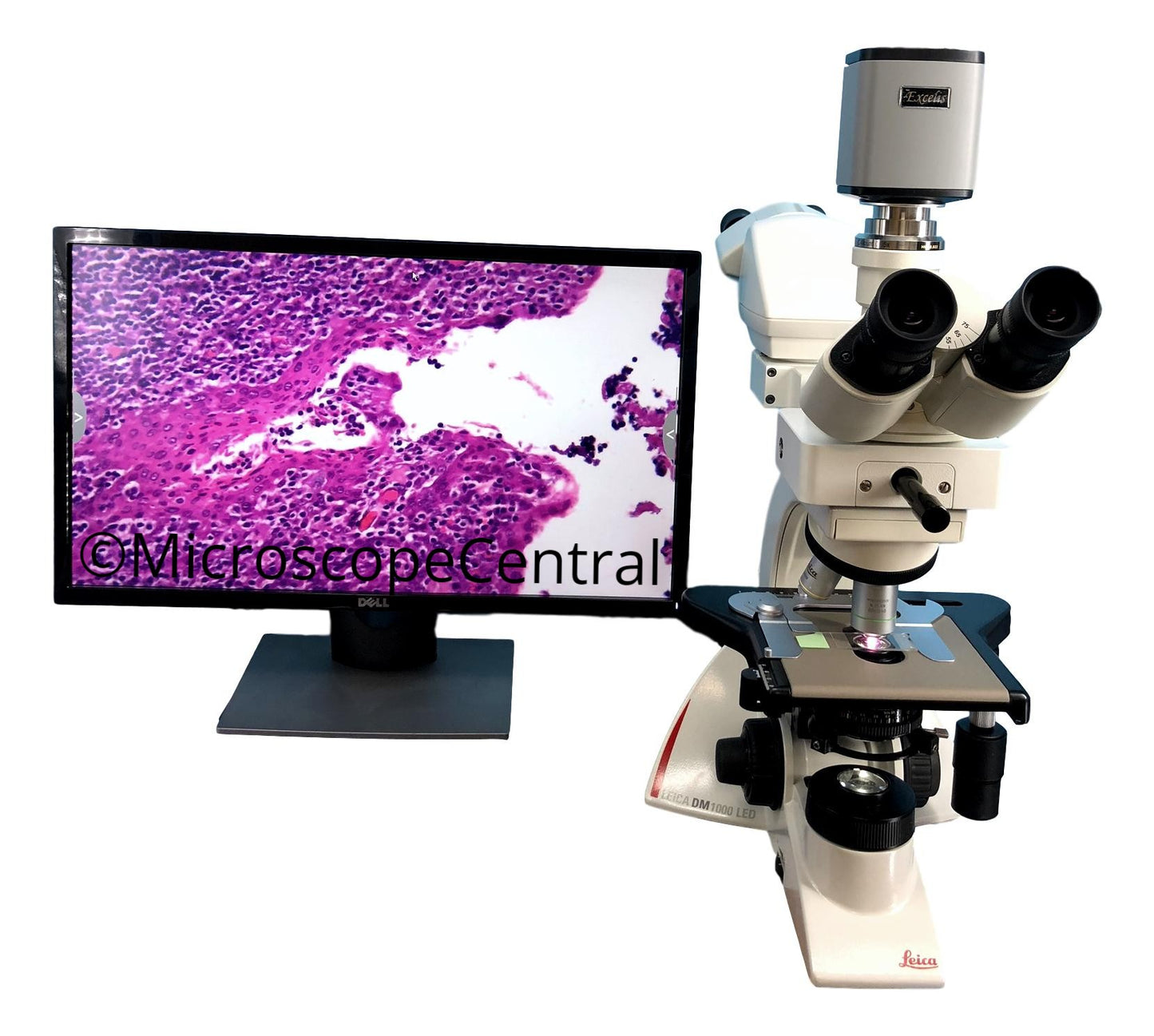

This Leica DM1000 Dual Viewing Digital Pathology Microscope is a complete digital microscope package. It comes with an HDMI / USB output camera, you can choose to have an 11.6" retina display screen right above the eyepieces. With or without this screen the camera outputs HDMI to a monitor, or USB to a computer. The dual bridge is a face-to-face bridge which allows a user sitting across from the main user to view through the microscope. We can fully customize this microscope to meet your specific needs. The dual viewing bridge had a built in LED pointer. The microscope comes with a trinocular main viewing head and a binocular secondary head.  A pair of 10x/22mm FOV eyepieces is provided for the main head, and a pair of 10x/20mm FOV eyepieces is provided for the secondary head. The nosepiece is a 5 position nosepiece and this comes configured with your choice of Hi Plan or N Plan 2.5x, 4x,10x, 40x objectives. The condenser has a diffusion slider for the 2x objective, no need to remember to flip the condenser head in and out! We can add a 20x objective if desired. The rackless mechanical stage provides smooth and precise movements. The ceramic insert on the stage is designed to withstand years of use. The microscope features ergonomic and easy to use controls for the focus, stage, and head. With the kohler LED illumination you never have to worry about changing the bulb!



Specifications
Head:

Primary Head: Trinocular w/ C-Mount

Secondary Head Options: Binocular (Ergo Head Pictured)

Dual Bridge: Face-To-Face w/ LED Pointer
Eyepieces:

HC Plan 10x/22 Br. M Eyepieces - Main Head

HC Plan 10x/20 Eyepieces - Secondary Head

Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 2.5x, 4x, 10x, 40x

Or

N Plan 2.5x, 5x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control
Condenser: Condenser 1.25 N.A. with condenser lens & diffusion slider for 2x
Focusing: Coarse & fine focus knobs
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
This Leica DM1000 Dual Viewing Digital Pathology Microscope is a complete digital microscope package. It comes with an HDMI / USB output camera, you can choose to have an 11.6" retina display screen right above the eyepieces. With or without this screen the camera outputs HDMI to a monitor, or USB to a computer. The dual bridge is a face-to-face bridge which allows a user sitting across from the main user to view through the microscope. We can fully customize this microscope to meet your specific needs. The dual viewing bridge had a built in LED pointer. The microscope comes with a trinocular main viewing head and a binocular secondary head.  A pair of 10x/22mm FOV eyepieces is provided for the main head, and a pair of 10x/20mm FOV eyepieces is provided for the secondary head. The nosepiece is a 5 position nosepiece and this comes configured with your choice of Hi Plan or N Plan 2.5x, 4x,10x, 40x objectives. The condenser has a diffusion slider for the 2x objective, no need to remember to flip the condenser head in and out! We can add a 20x objective if desired. The rackless mechanical stage provides smooth and precise movements. The ceramic insert on the stage is designed to withstand years of use. The microscope features ergonomic and easy to use controls for the focus, stage, and head. With the kohler LED illumination you never have to worry about changing the bulb!



Specifications
Head:

Primary Head: Trinocular w/ C-Mount

Secondary Head Options: Binocular (Ergo Head Pictured)

Dual Bridge: Face-To-Face w/ LED Pointer
Eyepieces:

HC Plan 10x/22 Br. M Eyepieces - Main Head

HC Plan 10x/20 Eyepieces - Secondary Head

Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 2.5x, 4x, 10x, 40x

Or

N Plan 2.5x, 5x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control
Condenser: Condenser 1.25 N.A. with condenser lens & diffusion slider for 2x
Focusing: Coarse & fine focus knobs
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
Camera Specifications
Screen Mountable 11.6" retina display screen (hardware included)
Resolution (Live): 1920X1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

Leica DM1000 Brochure
