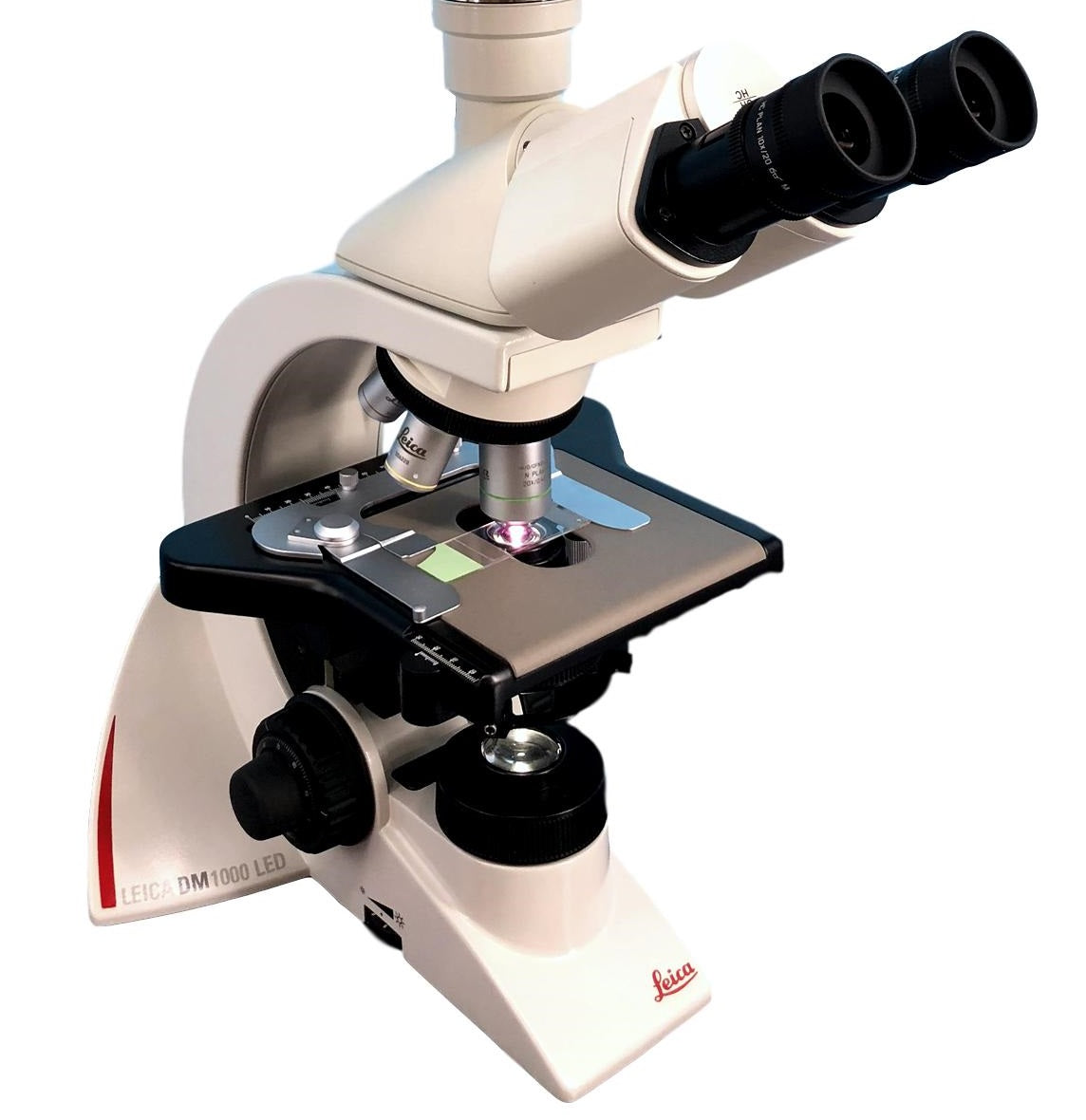

Leica DM1000 Cytology Microscope

Recently viewed

Leica DM1000 Cytology Microscope
Leica DM1000 Cytology Microscope
Leica DM1000 Cytology Microscope
Leica DM1000 Cytology Microscope

Leica DM1000 Cytology Microscope

  • SKU: DM1000-CY-B
$3,582.00 $3,981.00
  • Binocular, Ergonomic Binocular, or Trinocular
  • 4x, 10x, 40x Objectives For Cytology
  • Ergonomic Microscope
  • Koehler LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head Type
Request Quote
The Leica DM1000 Cytology Microscope package is a high quality reliable microscope for high volume laboratories. Featuring ergonomic features, high quality optics, the Leica DM1000 is a staple for many laboratories. You can choose between binocular, ergonomic binocular tilting, or trinocular heads. This comes configured with Hi Plan 4x, 10x, and 40x objectives which is standard for Cytology. The microscope ha an ergonomically positioned stage with a ceramic stage plate insert.  The LED illumination eliminates the need for bulb changes.

Specifications
Head:

Choose:

Binoclar, Tilting Biniocular 0 - 35 degrees, or Trinouclar



Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 4x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
The Leica DM1000 Cytology Microscope package is a high quality reliable microscope for high volume laboratories. Featuring ergonomic features, high quality optics, the Leica DM1000 is a staple for many laboratories. You can choose between binocular, ergonomic binocular tilting, or trinocular heads. This comes configured with Hi Plan 4x, 10x, and 40x objectives which is standard for Cytology. The microscope ha an ergonomically positioned stage with a ceramic stage plate insert.  The LED illumination eliminates the need for bulb changes.
Specifications
Head:

Choose:

Binoclar, Tilting Biniocular 0 - 35 degrees, or Trinouclar



Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 4x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
