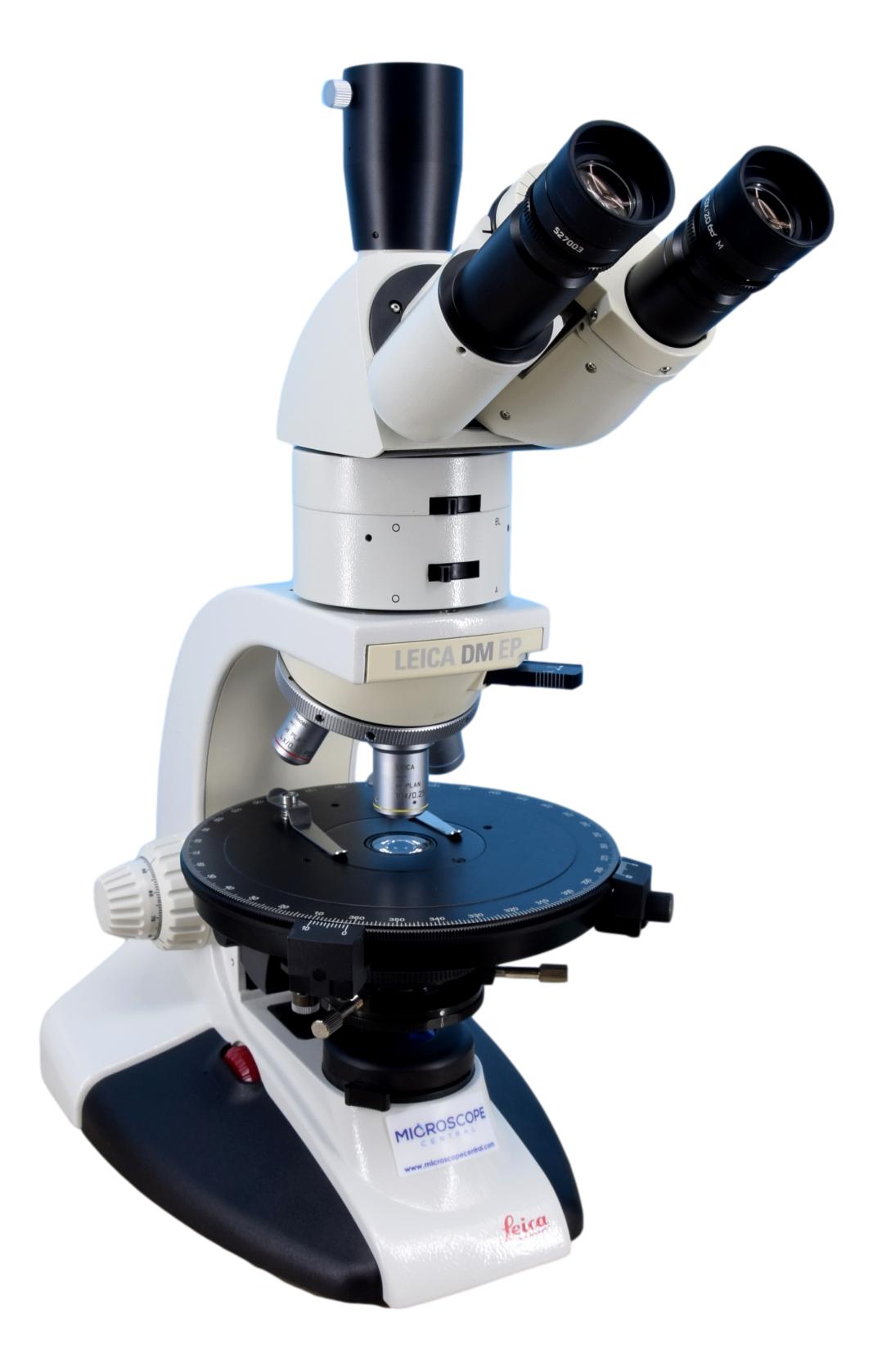

Leica DM EP Polarizing Light Microscope
- SKU: DMEP-B
- Fully Customizable
- Add A Camera
- Can Change The Stand, Head, Objectives
- Serviced By Experienced Techs
- With Warranty
This Leica DM EP Polarizing light microscope has been professionally refurbished and cleaned optically and mechanically by our factory trained technicians. The microscope comes with a binocular or trinocular viewing head. The microscope comes with a pair of 10x/20mm FOV eyepieces, one containing a crossline reticle. The bertrand / analyzer module is easy to use with clear in / out positions. The four position centerable nosepiece has strain free 4x, 10x, and 40x objective lenses. The stage rotates 360 degrees and comes with a pair of stage clips. The focusable condenser has a rotating polarizer.
Leica DM EP Specifications | |
---|---|
Head: | Binocular or Trinocular |
Eyepieces: | 10x/20mm Focusable Eyepieces - 1 w/ Crossline Reticle |
Bertand Lens: |
Flip-In / Flip-Out Bertand Lens & Analyzer First order red full wave plate |
Nosepiece: | 4 Position Centerable Nosepiece |
Objectives: | Hi / C Plan Strain Free POL 4x, 10x, 40x Objectives |
Stage: | 360 Degree Rotating Stage w/ Stage Clips |
Condenser: | Strain Free Condenser w/ rotating polarizer |
Focusing: | Coarse & Fine Focus |
Illumination: | Halogen Illumination w/ Blue Filter |
Warranty: | 1 Year Mechanical & Electrical |
