Leica DM500 WiFi Microscope System

Leica DM500 WiFi Microscope System


SKU: DM500-WiFi

Regular price $3,795.00
Regular price $3,895.00 Sale price $3,795.00
Sale Sold out
Quote Request
Leica DM500 WiFi Microscope System
Got Questions? Why Choose Us? View full details

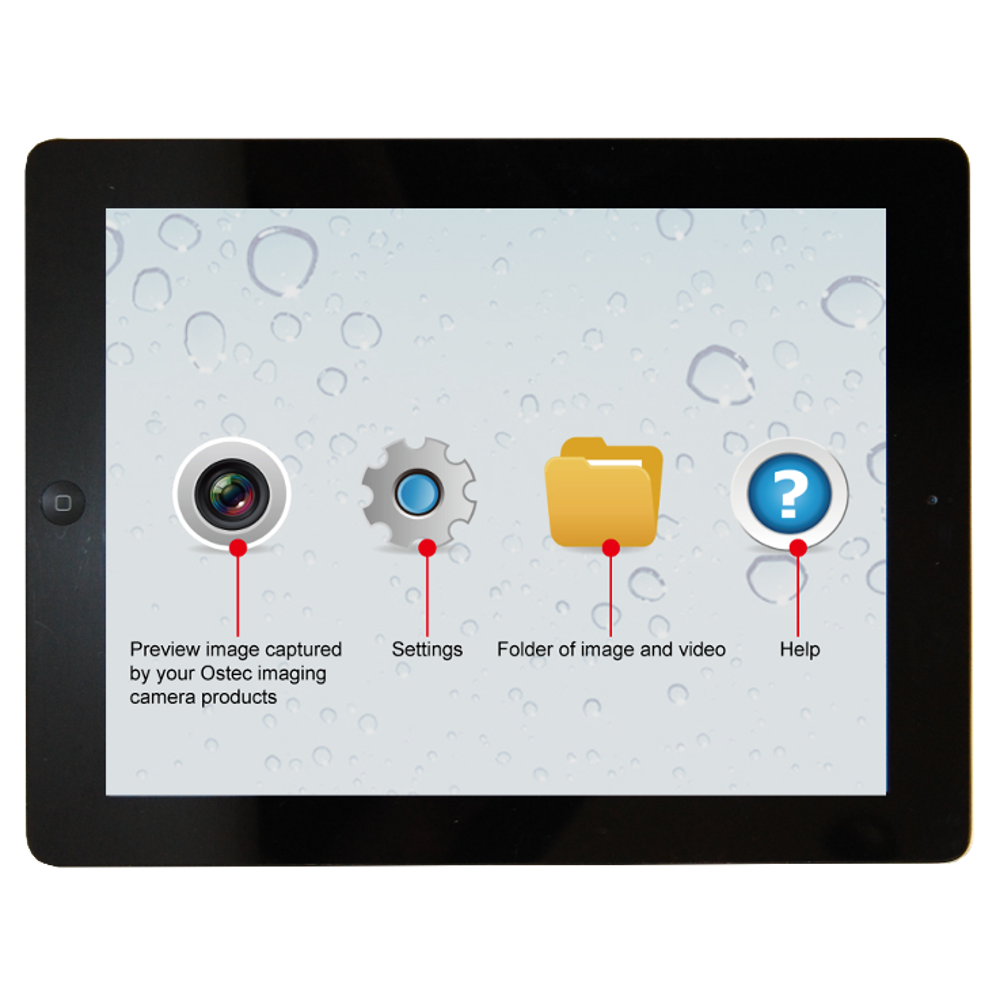

Our Leica DM500 WiFi microscope system combines the Leica DM500 microscope with our 5.0 M.P. WiFi camera. This system is perfect for educational settings, veterinary practices, or other laboratory settings. The camera can brodacast to up to 10 devices simultaneously allowing you to capture images/videos, play them back, and adjust the camera settings. A free app is downloadable from the app store on any iOS, Android, or Windows device. The included Leica DM500 mount can secure a smaller device to the camera to have a live image as pictured, or you can use a larger device off to the side. The camera can be used via USB cable to a computer with free software for more advanced functions and capabilities

Leica DM500 Microscope Specifications:

Head: Trinocular Head w/ c-mount adapter
Eyepieces: 10x/20mm F.O.V
Nosepiece: 4 Position
Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination
Misc: Dust cover, power cord, manual, oil
Warranty: 5 Year Mechanical 1 Year Electrical


Camera Specifications:
Max Resolution:
2592 x 1944
Sensor: APTINA MT9P001
Sensor Size: 1/2.5"
Frame Rate WiFi:

5 FPS @ 2592 x 1944

25FPS @ 1920 x 1080

30FPS @ 800 x 600, 640x 480

Frame Rate USB:

10FPS @ 2592 x 1944

15FPS @ 1920 x 1080

30FPS @ 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480

Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure: 3.9ms-320mx, Automatic and manual
White Balance: Automatic and manual
Capture Modes: Photos & Videos


WiFi Specifications:
Device Capacity

10 Devices @ 640 x 480

8 Devices @ 800 x 600

6 Devices @ 1024 x 760

5 Devices @ 1280 x 960

5 Devices @ 1920 x 1080

4 Devices @ 1920 x 1080

3 Devices @ 2592 x 1944

Built In Battery:
3.7v, 5000 mAh, 2650 rechargeable
Working Time:
About 8 hours
Charging Time: About 4 hours
Compatible Devices: Windows, iOS (6.0 and higher) , Android (3.0 and higher)


USB Specifications:

Windows XP, 7, 8, 8.1 (32 & 64 Bit)

CPU: equal or more than the second generation intel core 2.8 GHz

Memory 2g or more

Built In Battery:
3.7v, 5000 mAh, 2650 rechargeable
Working Time:
About 8 hours
Charging Time: About 4 hours
Compatible Devices: Windows, iOS , Android
***Wireless Device Not Included***
