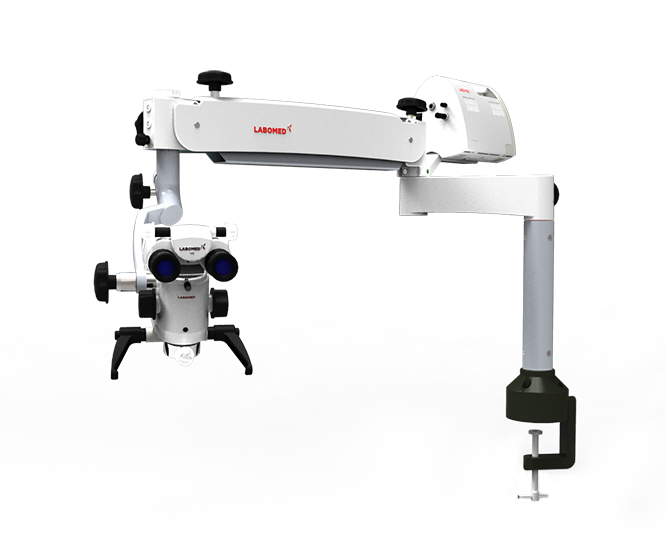

Labomed Prima DNT Trainer Instructional Dental Microscope
- Order within
The Prima DNT Trainer was designed to deliver training and educational facilities the best in performance, ergonomics, and utilization of space. A MaxLite™ coated apochromatic magnichanger promises superior image fidelity and light homogeneity. A compact design enables a lower center of gravity, ensuring a well balanced and vibration free dental microscope that won't monopolize workstations.
A super bright 50W LED produces a powerful yet cool field of illumination, with color temperature range closest to natural daylight. With a run time of 60,000 hours of bulb service life, bulb changes and storing spares are no longer a matter of concern. Electronics built directly into the swivel arm make the Prima DNT Trainer a compact solution.
An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics. Fine focusing control is provided through a range of long working distance CMOs.
The adjustable working distance NuVar™ objective is an optional accessory that provides fluid continuous working distance articulation from f300-400mm. The NuVar™ is the first objective of its kind to nearly eliminate light flares and artifacts while providing a working distance range, yielding a pristine image at all focal depths.
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™ in addition to LABOMED's proprietary iVu S5 streamlined documentation solution.
An ergonomic Rotoplate and Extender Kit eliminates neck craning, making it comfortable to view hard-to-see regions of the mouth from a 9 and 3 o'clock seated position.
Specifications | |
---|---|
Head: | 0° - 210° tilting binocular head, IPD 55-75mm |
Eyepieces: | WF 10x/18mm eyepieces with diopter lock and retractable eyeguard |
Apochromatic Mag changer |
MaxLite(TM) optics, 5 step magnification: 0.4x, 0.6x, 1.0x, 1.6x, 2.5x |
Objective: | f=250mm CMO with manual fine focus knob and sterilizable cap |
Light Source: |
50W LED coaxial illumination (cold light), 100V-240V AC universal power supply |
FIlters: | Green & Yellow |
Movement: | Short swivel arm (265mm, 360° rotation) and suspension arm (600mm, 320° rotation) with locking/tension control knobs and LED shut-off in park positio |
Vertical Movement: |
550mm |
Carrier: | Carrier arm and 120° coupling with tension adjustment locks |
Mount: | Table mount |
Accessories: | Objective protector lens, dust cover, and sterilizable knob caps |
Warranty: | 5 Year Mechanical & 1 Year Electrical |

The Premier Training Microscope
PRIMA DNT Trainer Advantages:
A super bright 50W LED produces a powerful yet cool field of illumination, with color temperature range closest to natural daylight. With a run time of 60,000 hours of bulb service life, bulb changes and storing spares are no longer a matter of concern. Electronics built directly into the swivel arm make the Prima DNT Trainer a compact solution.
|
![]() An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics. Fine focusing control is provided through a range of long working distance CMOs.
|
![]()
The adjustable working distance NuVar™ objective is an optional accessory that provides fluid continuous working distance articulation from f300-400mm. The NuVar™ is the first objective of its kind to nearly eliminate light flares and artifacts while providing a working distance range, yielding a pristine image at all focal depths.
|
![]()
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™ in addition to LABOMED's proprietary iVu S5 streamlined documentation solution.
|
![]() |
The Prima DNT Trainer was designed to deliver training and educational facilities the best in performance, ergonomics, and utilization of space. A MaxLite™ coated apochromatic magnichanger promises superior image fidelity and light homogeneity. A compact design enables a lower center of gravity, ensuring a well balanced and vibration free dental microscope that won't monopolize workstations.
A super bright 50W LED produces a powerful yet cool field of illumination, with color temperature range closest to natural daylight. With a run time of 60,000 hours of bulb service life, bulb changes and storing spares are no longer a matter of concern. Electronics built directly into the swivel arm make the Prima DNT Trainer a compact solution.
An Apochromatic Galilean optical system produces sharp contrast and resolution at every step. Proprietary MaxLite™ sputtered coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics. Fine focusing control is provided through a range of long working distance CMOs.
The adjustable working distance NuVar™ objective is an optional accessory that provides fluid continuous working distance articulation from f300-400mm. The NuVar™ is the first objective of its kind to nearly eliminate light flares and artifacts while providing a working distance range, yielding a pristine image at all focal depths.
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™ in addition to LABOMED's proprietary iVu S5 streamlined documentation solution.
An ergonomic Rotoplate and Extender Kit eliminates neck craning, making it comfortable to view hard-to-see regions of the mouth from a 9 and 3 o'clock seated position.
Specifications | |
---|---|
Head: | 0° - 210° tilting binocular head, IPD 55-75mm |
Eyepieces: | WF 10x/18mm eyepieces with diopter lock and retractable eyeguard |
Apochromatic Mag changer |
MaxLite(TM) optics, 5 step magnification: 0.4x, 0.6x, 1.0x, 1.6x, 2.5x |
Objective: | f=250mm CMO with manual fine focus knob and sterilizable cap |
Light Source: |
50W LED coaxial illumination (cold light), 100V-240V AC universal power supply |
FIlters: | Green & Yellow |
Movement: | Short swivel arm (265mm, 360° rotation) and suspension arm (600mm, 320° rotation) with locking/tension control knobs and LED shut-off in park positio |
Vertical Movement: |
550mm |
Carrier: | Carrier arm and 120° coupling with tension adjustment locks |
Mount: | Table mount |
Accessories: | Objective protector lens, dust cover, and sterilizable knob caps |
Warranty: | 5 Year Mechanical & 1 Year Electrical |

The Premier Training Microscope
The Prima DNT Trainer was designed to deliver training and educational facilities the best in performance, ergonomics, and utilization of space. A MaxLite™ coated apochromatic magnichanger promises superior image fidelity and light homogeneity. A compact design enables a lower center of gravity, ensuring a well balanced and vibration free dental microscope that won't monopolize workstations.PRIMA DNT Trainer Advantages:
|
![]() |
![]() |
![]() |
![]() |
