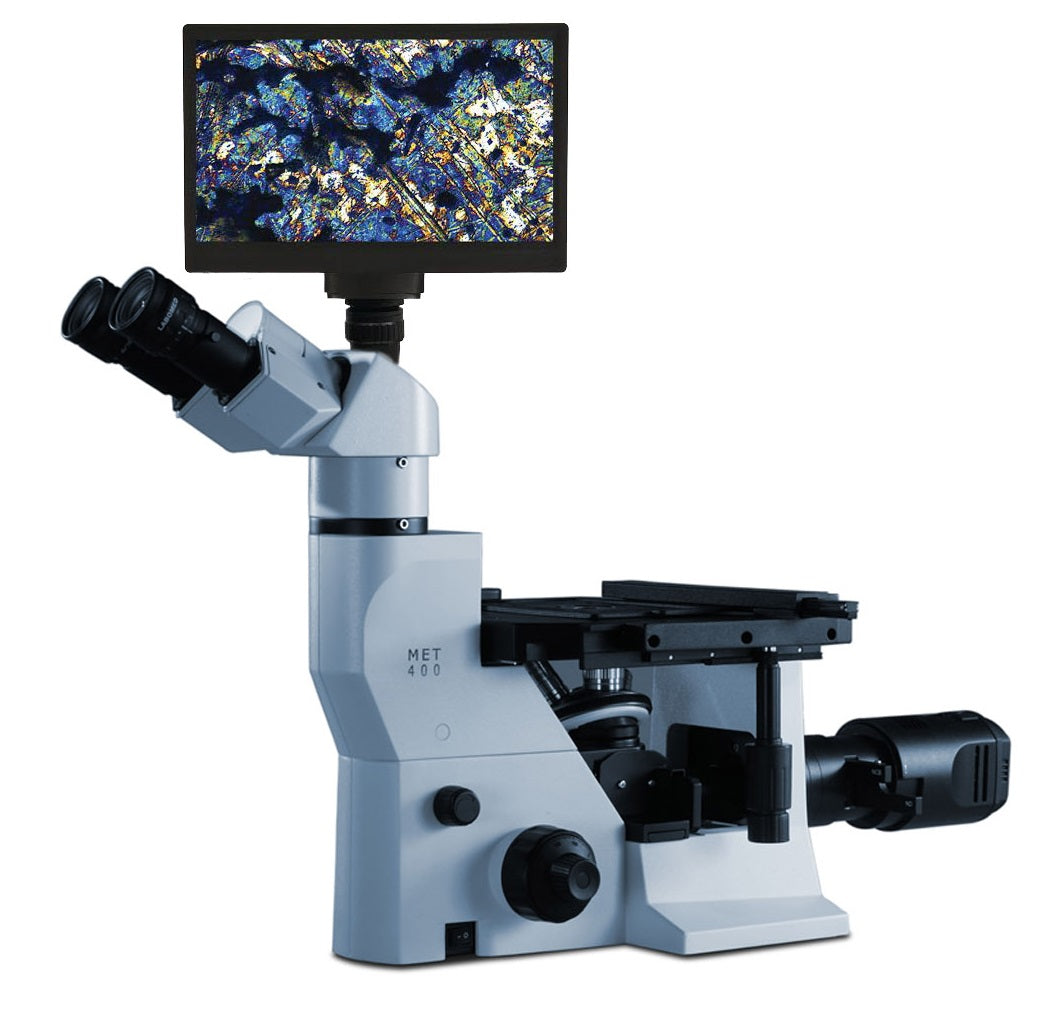

Labomed MET 400 Inverted HD Digital Metallurgical Microscope

Labomed MET 400 Inverted HD Digital Metallurgical Microscope

|

SKU: 7129100-HD

Regular price $5,835.00
Regular price $6,484.00 Sale price $5,835.00
Sale Sold out
  • Choose With or Without Screen
  • Long Working Distance 5x, 10x, 20x, 50x Objectives
  • Mechanical Stage
  • Halogen Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty

Camera
Quote Request
Labomed MET 400 Inverted HD Digital Metallurgical Microscope
Got Questions? Why Choose Us? View full details

Description

This complete Labomed MET 400 metallurgical phase contrast digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The LABOMED MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs.  Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!



Specifications
Stand: Single mold sturdy stand with anti rust materials.
Viewing Head: Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm
Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: MaxLite™ Infinity corrected ML series (long working distance) Plan Achromatic objectives: 5x, 10x, 20x, 50x
Stage: Fixed stage with specimen holder of 3 sizes (38mm/53mm/65mm)
Condenser: 0.9 NA centerable strain free condenser
Focusing: Feather touch attrition -free coaxial coarse and fine focus adjustment with auto tension adjustment for longer life and ultra smooth movement. Weighted fine focus
Illumination: Halogen (30W) illumination with intensity control and iris diaphragm, 100V ‐ 240V AC universal power supply
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.  Neutral color balancing filter and neutral density filter for color balancing & brightness control



Advantages

prima-1

The ML series of objectives promise image fidelity. They are treated with LABOMED's proprietary MaxLite™ coatings for superior light transmission and scratch resistant properties. Long working distance and tight design control on chromatic aberrations help the MET 400 deliver accurate renditions at all magnifications.  Adry 100x objective is optional.

PrimaA slide-in polarizing kit with built-in polarizer/analyzer can fit seamlessly beneath the objective turret for user convenience.  Kit comes equipped with a rotating polarizer for 360 degrees of light extinction.

prima An ultra bright 6V-30W light source with a high color rendition index faithfully reproduces colors for a broad range of materials, particularly those used in color sensitive applications such as photomicrography.
