Labomed Lx500 Microscope Series
Labomed Lx500 Microscope Series
Labomed Lx500 Microscope Series

Labomed Lx500 Microscope Series

  • SKU: 9144200
$1,663.00 $1,751.00
  • Binocular, Trinocular, or Ergonomic Tilting Head
  • Plan Achromat Objectives
  • Ceramic Stage
  • Kohler LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head Type
Illumination
Request Quote

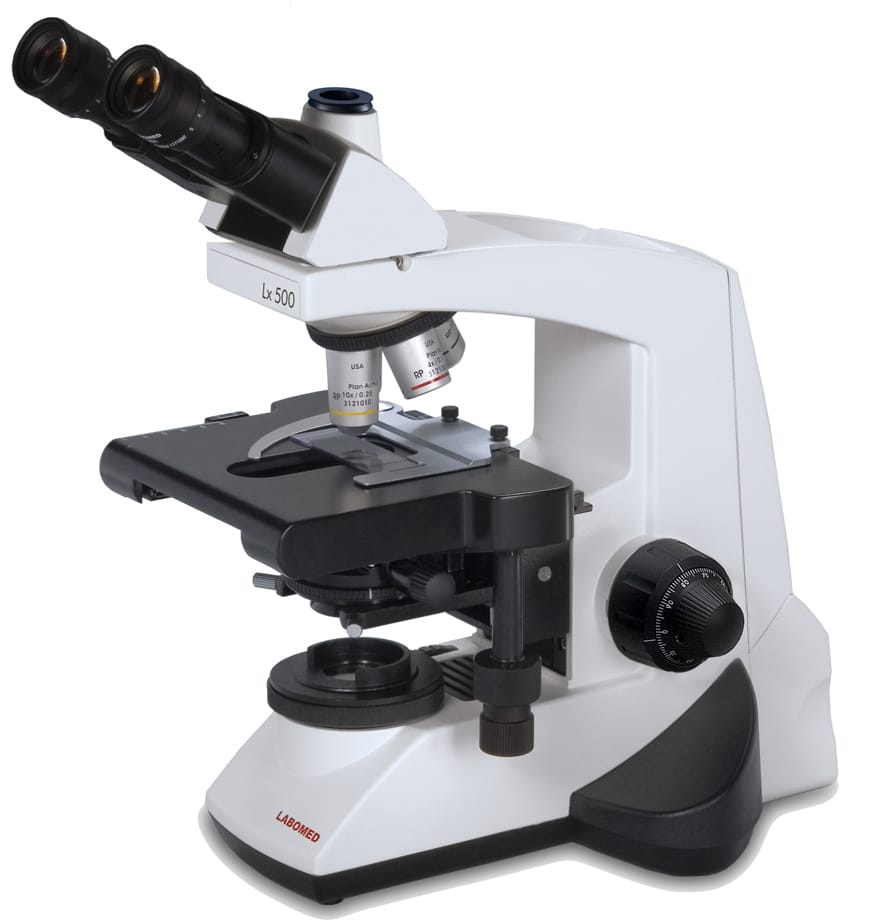

The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. You can choose between a standard binocular head, trinocular head, or ergonomic tilting binouclar head. This microscope offers a wide field of view with the 10x/22mm eyepieces. The nosepiece is a reversed quintuple nosepiece with ball bearings. The RP2 Infinity Plan Achromat objectives provide clear and high resolution images. The microscope comes standard with 4x, 10x, 40x, and 100x oil objectives however others can be added. The rackless XY mechanical stage has a ceramic insert which ensures durability. A fully focusable flip top condenser is standard with this microscope. Featuring kohler illumination you can choose between halogen or rechargeable LED. This microscope is ideal for laboratory use and can be upgraded to fluorescence, multiple viewing, or specially configured with other objectives.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination:

True Köhler illumination with halogen 6V-30W lamp with variable illumination control

LED Illumination with Rechargeable Batteries

Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.

The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. You can choose between a standard binocular head, trinocular head, or ergonomic tilting binouclar head. This microscope offers a wide field of view with the 10x/22mm eyepieces. The nosepiece is a reversed quintuple nosepiece with ball bearings. The RP2 Infinity Plan Achromat objectives provide clear and high resolution images. The microscope comes standard with 4x, 10x, 40x, and 100x oil objectives however others can be added. The rackless XY mechanical stage has a ceramic insert which ensures durability. A fully focusable flip top condenser is standard with this microscope. Featuring kohler illumination you can choose between halogen or rechargeable LED. This microscope is ideal for laboratory use and can be upgraded to fluorescence, multiple viewing, or specially configured with other objectives.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination:

True Köhler illumination with halogen 6V-30W lamp with variable illumination control

LED Illumination with Rechargeable Batteries

Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.

Lx 500 Advantages:

RP2 series infinity corrected Super Plan optics RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity.  Proprietary MaxLite coatings further enhance optical performance.   Ergonomic head With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.   rackless stage A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.   True Kohler illumination with a flip-top condenser True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Lighting options include 30W Halogen (approx. 500 hours) and LED (approx. 100,000 hours).
