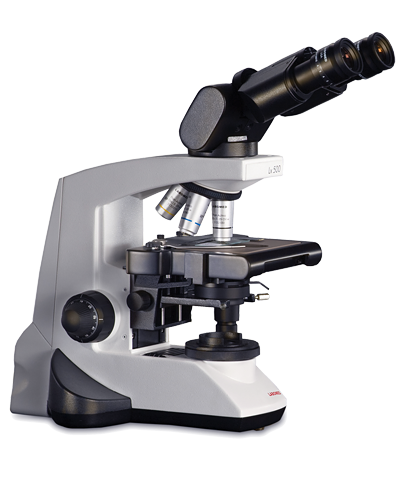

Labomed Lx500 Hematology Microscope
The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. This microscope comes standard with a rackless stage, ceramic mechanical stage,...
The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. This microscope comes standard with a rackless stage, ceramic mechanical stage, and infinity corrected plan objectives.
The Hematology package includes 10x, 40x, 50x Oil, and 100x Oil objectives.
|Viewing Head:||Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment|
|Eyepiece:||Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated|
|Nosepiece:||Reverse angle quadruple nosepiece (Ball bearing type)|
|Objectives:||RP2 series Infinity Corrected DIN Plan Achromatic objectives 10x, 40x (spring loaded), 50x Oil (spring loaded) 100x Oil (spring loaded), antifungal coated|
|Stage:||Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder|
|Condenser:||Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides|
|Focusing:||Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation|
True Köhler illumination with halogen 6V-30W lamp with variable illumination control
LED Illumination with Rechargeable Batteries
|Electrical:||Universal input 100V - 240V AC, 50/60Hz|
|Accessories:||Immersion oil, dust cover, and cleaning cloth.|
|Warranty:||5 Year Mechanical 1 Year Electrical|
Please Contact Us for all additional parts and accessories
Lx 500 Advantages:
