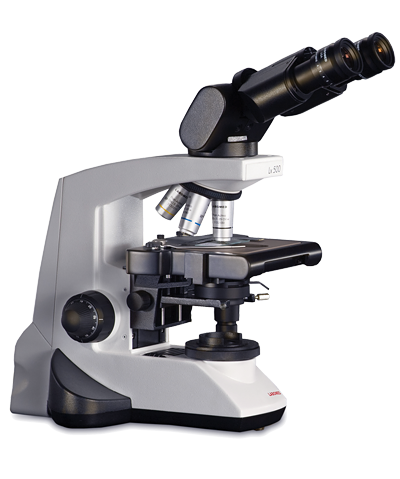

Labomed Lx500 Fine Needle Aspiration Microscope

Labomed Microscopes


Request Quote

The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope. This microscope comes standard with a rackless stage, ceramic mechanical stage, and infinity corrected plan objectives.

The Fine Needle Aspiration package includes 4x, 10x, 40x, and 60x objectives.

Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type)
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x, 60x, antifungal coated
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation

True Köhler illumination with halogen 6V-30W lamp with variable illumination control

LED Illumination with Rechargeable Batteries

Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year Mechanical 1 Year Electrical


 Please Contact Us for all additional parts and accessories

Lx 500 Advantages:

RP2 series infinity corrected Super Plan optics RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity.  Proprietary MaxLite coatings further enhance optical performance.   Ergonomic head With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.   rackless stage A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.   True Kohler illumination with a flip-top condenser True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Lighting options include 30W Halogen (approx. 500 hours) and LED (approx. 100,000 hours).
