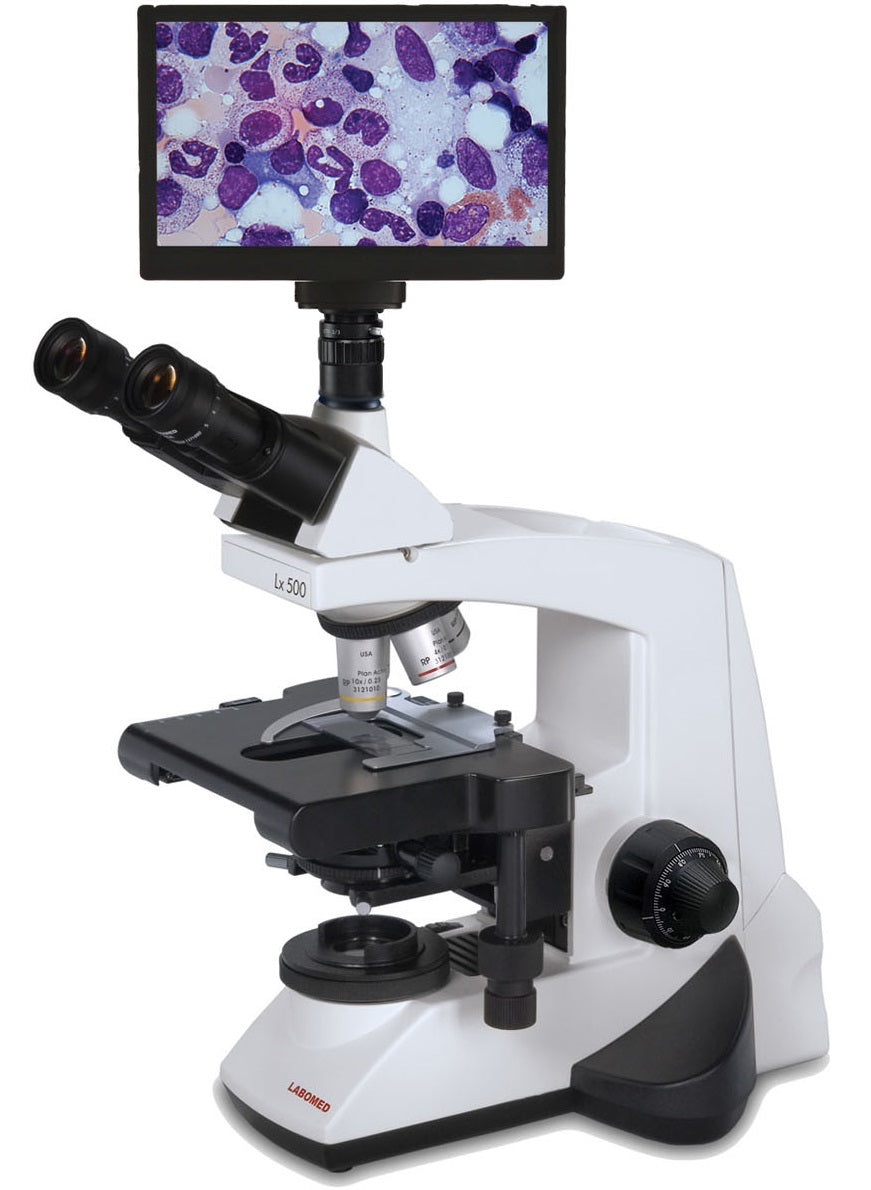

Labomed Lx500 Digital HD Microscope Package

Labomed Lx500 Digital HD Microscope Package

Available: In Stock
  • Choose With or Without Screen
  • Plan Achromat Objectives
  • Clinical Laboratory Grade
  • Rechargeable LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Wishlist
  • Product SKU: LX500-300-HD
$2,575.00 $2,849.00
Request Quote

The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope.This complete digital package includes your choice of camera, with or without the 11.6" retina display pictured. This includes the trinocular viewing and and c-mount adapter.  This microscope offers a wide field of view with the 10x/22mm eyepieces. The nosepiece is a reversed quintuple nosepiece with ball bearings. The RP2 Infinity Plan Achromat objectives provide clear and high resolution images. The microscope comes standard with 4x, 10x, 40x, and 100x oil objectives however others can be added. The rackless XY mechanical stage has a ceramic insert which ensures durability and relibiligy. A fully focusable flip top condenser is standard with this microscope. Featuring kohler illumination this microscope uses and LED bulb so there are no bulb changes required. This microscope is ideal for laboratory use and can be upgraded to fluorescence, multiple viewing, or specially configured with other objectives.

You have the option to purchase this with or without the 11.6" HD retina display screen as pictured. The camera included in this system can output HDMI to a screen or USB to a computer. Purchasing this with the screen makes it an all-in-one streamlined solution. You can use your own screen or computer off to the side. Even if purchased with a screen you can output to your own screen, or USB to a computer. When using the camera in HDMI output mode a mouse is included and on-board software will pop up on the screen allowing you to adjust the camera settings, capture images / videos, replay them, and more. If you take advantage of the free software in USB mode you can capture images / videos, do annotations, measurements, extended depth of focus, stitching, and more!

Microscope Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination: Kohler LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

The Labomed Lx500 is a beautifully designed, ergonomic, expandable, and reliable laboratory grade microscope.This complete digital package includes your choice of camera, with or without the 11.6" retina display pictured. This includes the trinocular viewing and and c-mount adapter.  This microscope offers a wide field of view with the 10x/22mm eyepieces. The nosepiece is a reversed quintuple nosepiece with ball bearings. The RP2 Infinity Plan Achromat objectives provide clear and high resolution images. The microscope comes standard with 4x, 10x, 40x, and 100x oil objectives however others can be added. The rackless XY mechanical stage has a ceramic insert which ensures durability and relibiligy. A fully focusable flip top condenser is standard with this microscope. Featuring kohler illumination this microscope uses and LED bulb so there are no bulb changes required. This microscope is ideal for laboratory use and can be upgraded to fluorescence, multiple viewing, or specially configured with other objectives.

You have the option to purchase this with or without the 11.6" HD retina display screen as pictured. The camera included in this system can output HDMI to a screen or USB to a computer. Purchasing this with the screen makes it an all-in-one streamlined solution. You can use your own screen or computer off to the side. Even if purchased with a screen you can output to your own screen, or USB to a computer. When using the camera in HDMI output mode a mouse is included and on-board software will pop up on the screen allowing you to adjust the camera settings, capture images / videos, replay them, and more. If you take advantage of the free software in USB mode you can capture images / videos, do annotations, measurements, extended depth of focus, stitching, and more!

Microscope Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination: Kohler LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

Lx 500 Advantages:

RP2 series infinity corrected Super Plan optics RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity.  Proprietary MaxLite coatings further enhance optical performance.   Ergonomic head With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.   rackless stage A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.   True Kohler illumination with a flip-top condenser True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Lighting options include 30W Halogen (approx. 500 hours) and LED (approx. 100,000 hours).
