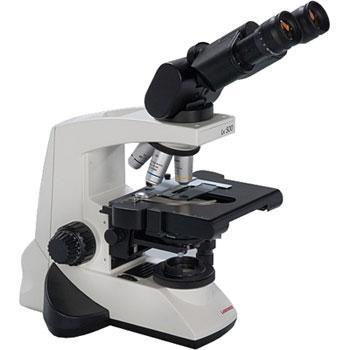

Labomed Lx500 Dermatology Mohs Microscope

Recently viewed

Labomed Lx500 Dermatology Mohs Microscope
Labomed Lx500 Dermatology Mohs Microscope

Labomed Lx500 Dermatology Mohs Microscope

  • SKU: LX500-DERM-B
$1,630.00 $1,876.00
  • Binocular, Trinocular, or Ergo Head
  • 2x Objective Included
  • Ceramic Coated Stage
  • Köhler Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head Type
Request Quote

The Labomed Lx500 dermatology microscope can come with your choice of binocular, trinocular, or ergonomic tilting binocular heads. This scope comes with foucsable wide field 10x/22mm FOV eyepieces with foldable eye-guards. The five position nosepiece comes with plan achromat 2.5x, 10x, 20x, and 40x objectives and provide high resolution images. The rackless ceramic stage ensures minimal wear and tear on the microscope. A flip out condenser is provided for use with the low power objective lenses. With LED koeher illumination there is no need to change the bulb.

Head:

Siedentopf Binocular, 30°, IPD 48-75 mm with height adjustment


Siedentopf Trinocular, 30°, IPD 48-75 mm with height adjustment

or

Ergonomic Tilting Binocular

Eyepieces: Focusable wide field eyepiece 10x/22mm with foldable eye guard
Nosepiece: Reverse angle quintuple nosepiece
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 2.5x, 10x, 20x, 40x (spring loaded) anti fungus
Mechanical stage: Rackless X axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 40mm. Single specimen holder
Condenser: Flip top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation.
Illumination: True Köhler illumination with LED variable illumination control

The Labomed Lx500 dermatology microscope can come with your choice of binocular, trinocular, or ergonomic tilting binocular heads. This scope comes with foucsable wide field 10x/22mm FOV eyepieces with foldable eye-guards. The five position nosepiece comes with plan achromat 2.5x, 10x, 20x, and 40x objectives and provide high resolution images. The rackless ceramic stage ensures minimal wear and tear on the microscope. A flip out condenser is provided for use with the low power objective lenses. With LED koeher illumination there is no need to change the bulb.

Head:

Siedentopf Binocular, 30°, IPD 48-75 mm with height adjustment


Siedentopf Trinocular, 30°, IPD 48-75 mm with height adjustment

or

Ergonomic Tilting Binocular

Eyepieces: Focusable wide field eyepiece 10x/22mm with foldable eye guard
Nosepiece: Reverse angle quintuple nosepiece
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 2.5x, 10x, 20x, 40x (spring loaded) anti fungus
Mechanical stage: Rackless X axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 40mm. Single specimen holder
Condenser: Flip top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation.
Illumination: True Köhler illumination with LED variable illumination control
