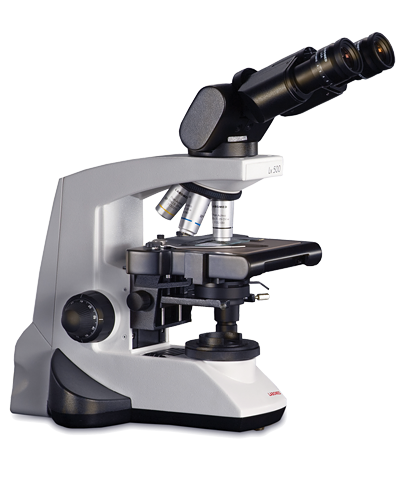

Labomed Lx500 Cytology Microscope
Labomed Lx500 Cytology Microscope

Labomed Lx500 Cytology Microscope

$1,717.00 $1,808.00
  • Binocular or Trinocular Head
  • Plan Achromat Objectives
  • 4x, 10x, 40x Objectives
  • LED Illumination
  • 5 Year Mechanical Warranty
Head Type
Illumination
Request Quote

Configured for Cytology applications this Labomed Lx500 comes with Plan Achromat 4x, 10x, and 40x objective lenses. You can choose from a binocular, ergo binocular or trinocular viewing head. The 10x eyepieces provide a large 22mm FOV. This microscope features a rackless ceramic coated mechanical stage. The LED illumination provides even cool light.

Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded)
Stage: Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder
Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination: LED Illumination Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year mechanical, 1 year electrical
