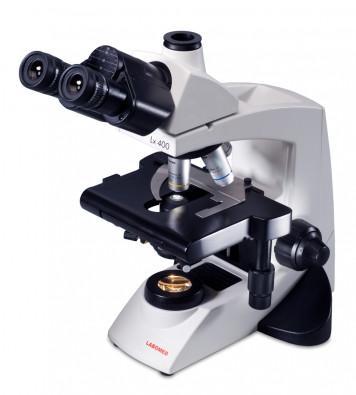

Labomed Lx400 Phase Contrast Microscope
Labomed Lx400 Phase Contrast Microscope

Labomed Lx400 Phase Contrast Microscope

  • SKU: 9126005
$1,518.00 $1,598.00
  • Binocular or Trinocular
  • Phase 10x, 20x, 40x, 100x Oil Objectives
  • Phase Turret Condenser & Rackless XY Stage
  • LED or Halogen Illumination
  • 5 Year Mechanical & Electrical Warranty
Head
Illumination
Request Quote

The Lx400 phase contrast microscope is a high quality phase microscope which uses a phase contrast turret condenser. It is offered in binocular or trinocular configurations. It comes with a pair of 10x eyepieces that provide a large 20mm field of view. It comes with phase contrast DIN Infinity corrected 10x, 20x, 40x, and 100x oil objectives. The XY stage is rackless, so no moving parts stick out the side. The condenser is a phase turret type which offers brightfield, phase, and darkfield settings. We offer this in halogen or LED rechargeable illumination.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm
Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series DIN Infinity Corrected Phase objectives: 10x, 20x, 40x, 100x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Phase Turret Condenser
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:

6v 30w Halogen Illumination

or

LED Rechargeable

Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Phase centering telescope, green filter

The Lx400 phase contrast microscope is a high quality phase microscope which uses a phase contrast turret condenser. It is offered in binocular or trinocular configurations. It comes with a pair of 10x eyepieces that provide a large 20mm field of view. It comes with phase contrast DIN Infinity corrected 10x, 20x, 40x, and 100x oil objectives. The XY stage is rackless, so no moving parts stick out the side. The condenser is a phase turret type which offers brightfield, phase, and darkfield settings. We offer this in halogen or LED rechargeable illumination.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head: Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm
Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series DIN Infinity Corrected Phase objectives: 10x, 20x, 40x, 100x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Phase Turret Condenser
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:

6v 30w Halogen Illumination

or

LED Rechargeable

Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Phase centering telescope, green filter

  Please Contact Us for all additional parts and accessories
