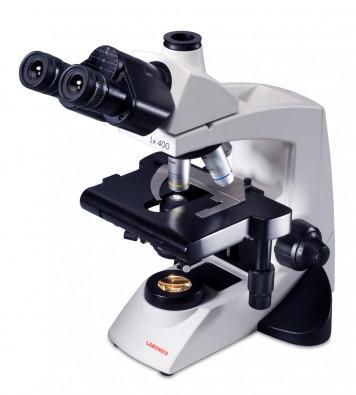

Labomed Lx400 Hematology Microscope

Labomed Lx400 Hematology Microscope

Designed for scaleability, the Lx 400 can take on applications and curriculum requirements ranging from the most basic to the more complex.  Reflecting innovations in...

$1,186.00
Request Quote
Add to wishlist

Designed for scaleability, the Lx 400 can take on applications and curriculum requirements ranging from the most basic to the more complex.  Reflecting innovations in optical design, mechanical engineering, and illumination concepts, the Lx 400 delivers evolved performance features to a growing list of happy users.

Specifications
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type)
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 10x, 40x (spring loaded), 50x Oil (spring loaded), 100x Oil (spring loaded), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:
Options:
  • 6v 20w Halogen Up to 2,000 hours of Halogen lamp life
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year Mechanical 1 Year Electrical

*Please contact us for additional accessories or custom configurations*

Designed for scaleability, the Lx 400 can take on applications and curriculum requirements ranging from the most basic to the more complex.  Reflecting innovations in optical design, mechanical engineering, and illumination concepts, the Lx 400 delivers evolved performance features to a growing list of happy users.

Specifications
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type)
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 10x, 40x (spring loaded), 50x Oil (spring loaded), 100x Oil (spring loaded), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: Options:
  • 6v 20w Halogen Up to 2,000 hours of Halogen lamp life
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year Mechanical 1 Year Electrical

*Please contact us for additional accessories or custom configurations*

  Please Contact Us for all additional parts and accessories
