Labomed Lx400 Fine Needle Aspiration Microscope
Labomed Lx400 Fine Needle Aspiration Microscope

Labomed Lx400 Fine Needle Aspiration Microscope

  • SKU: LX400-FNA-B
$1,282.00 $1,349.00
  • Binocular or Trinocular Head
  • Plan Achromat Objectives
  • 4x, 10x, 40x, 60x Objectives
  • LED Illumination
  • 5 Year Mechanical Warranty
Head
Illumination
Request Quote

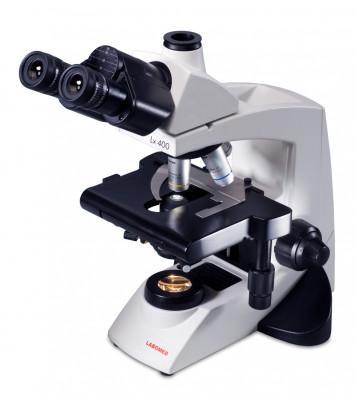

The Labomed Lx400 Fine Needle Aspiration Microscope is designed for ease of use and durability. The microscope comes with 4x, 10x, 40x, and 60x objectives.

Specifications
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type)
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x, 60x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year Mechanical 1 Year Electrical


The Labomed Lx400 Fine Needle Aspiration Microscope is designed for ease of use and durability. The microscope comes with 4x, 10x, 40x, and 60x objectives.

Specifications
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type)
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x, 60x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.
Warranty: 5 Year Mechanical 1 Year Electrical


  Please Contact Us for all additional parts and accessories
