Labomed Lx400 Dual Viewing Microscope

Recently viewed

Labomed Lx400 Dual Viewing Microscope

Labomed Lx400 Dual Viewing Microscope

  • SKU: 9126012-D
$3,335.64 $3,511.20
  • Binocular or Trinocular Main Head
  • Dual Viewing System w/ Pointer
  • Plan Achromat 4x, 10x, 40x, 100x Objectives
  • LED Illumination
  • 5 Year Mechanical Warranty
Main Head
Illumination
Request Quote

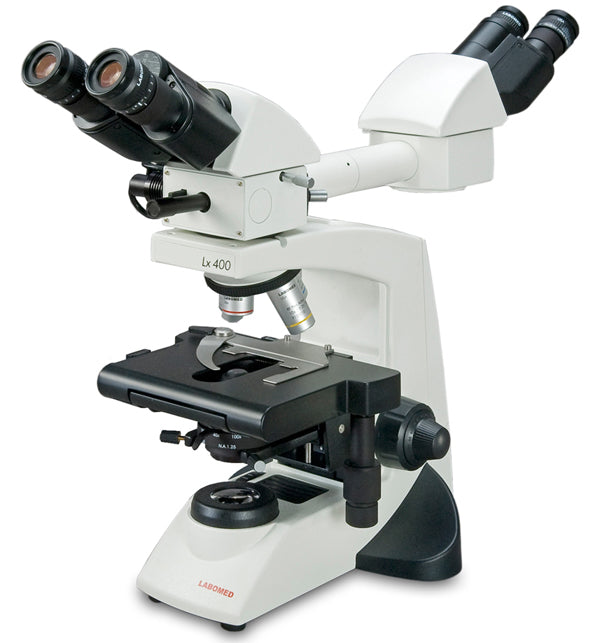

This Labomed Lx400 microscope is equipped with a dual viewing optical bridge which can be positioned side-by-side, or face-to-face. You can choose from a binocular or trinocular main head. The secondary head will be a binocular viewing head. 10x eyepieces with a 20mm wide field of view are provided for both viewing heads. The 4x, 10x, 40x, and 100x oil plan achromatic objectives provide high quality crisp images. The microscope features an LED rechargeable illumination system.

Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Binocular or Trinocular Main Head

Binocular Secondary Head

Dual Bridge:

Dual Viewing Bridge w/ Illuminated Pointer

Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards(x4)
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.

This Labomed Lx400 microscope is equipped with a dual viewing optical bridge which can be positioned side-by-side, or face-to-face. You can choose from a binocular or trinocular main head. The secondary head will be a binocular viewing head. 10x eyepieces with a 20mm wide field of view are provided for both viewing heads. The 4x, 10x, 40x, and 100x oil plan achromatic objectives provide high quality crisp images. The microscope features an LED rechargeable illumination system.

Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Binocular or Trinocular Main Head

Binocular Secondary Head

Dual Bridge:

Dual Viewing Bridge w/ Illuminated Pointer

Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards(x4)
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.

  Please Contact Us for all additional parts and accessories
