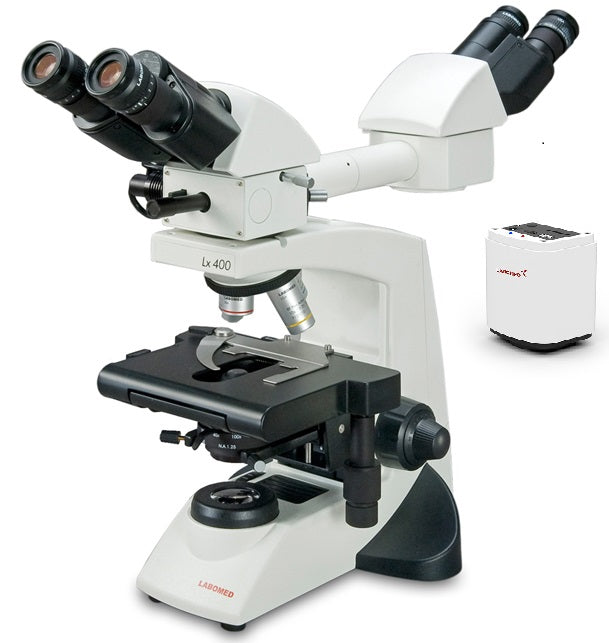

Labomed Lx400 Dual Viewing Digital Microscope
Labomed Lx400 Dual Viewing Digital Microscope
|
SKU: 9126012-DV-D
- Complete With USB / HDMI Camera
- Dual Viewing System w/ Pointer
- Plan Achromat 4x, 10x, 40x, 100x Objectives
- LED Illumination
- 5 Year Mechanical Warranty
Couldn't load pickup availability
Description
This Labomed Lx400 microscope is equipped with a dual viewing optical bridge which can be positioned side-by-side, or face-to-face. You can choose from a binocular or trinocular main head. The secondary head will be a binocular viewing head. 10x eyepieces with a 20mm wide field of view are provided for both viewing heads. The 4x, 10x, 40x, and 100x oil plan achromatic objectives provide high quality crisp images. You can choose from a halogen 30w illumination system or and LED rechargeable illumination system.
| Specifications | |
|---|---|
| Stand: | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Viewing Head: |
Binocular or Trinocular Main Head Binocular Secondary Head |
| Dual Bridge: |
Dual Viewing Bridge w/ Illuminated Pointer |
| Eyepiece: | Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards(x4) |
| Nosepiece: | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives: | RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus |
| Stage: |
Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder |
| Condenser: | Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides |
| Focusing: | Coaxial coarse and fine focusing on ball drive system for smooth operation |
| Illumination: | LED Rechargeable |
| Electrical: | Universal input 100V - 240V AC, 50/60Hz |
| Accessories: | Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth. |
Camera Specifications:
| Sensor | 1/2.8” 6.0 MP Color CMOS |
| Active area | 5.70mm x 4.28mm |
| Sensor resolution | Dynamic 1920x1080 pixels Static 3264x1836 pixels |
| Pixel Size | 2.7μm x 2.7μm |
| A/D conversion | 24 Bit RGB |
| Pixel clock | 48 MHz |
| Dynamic range | 65 dB |
| Max. Exposure | 1ms-10s auto/manual, white balancing |
| Frame rate | 30 fps (@1080p) |
| Image processing |
High speed dual FPGA, progressive scan, advanced noise reduction |
| Interface | USB 3.0, HDMI, SD card, mouse control |
| Optical connection | C- Mount |
| Voltage supply | AC power (universal) |
| Power indication | Green LED indicating power on and ready for capture |
| Measurement | Geometric and axial, calibration |
| Ambient conditions |
Operating Temperature: 0-60˚C |
| Software Requirments | Microsoft Windows (XP and later versions) / Linux / Mac |
