Labomed Lx400 Digital HD Microscope Package

Labomed Lx400 Digital HD Microscope Package

Available: In Stock
  • Choose With or Without Screen
  • Plan Achromat Objectives
  • Rackless Mechanical Stage
  • Rechargeable LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Wishlist
  • Product SKU: LX400-300-HD
$1,999.00 $2,849.00
Request Quote

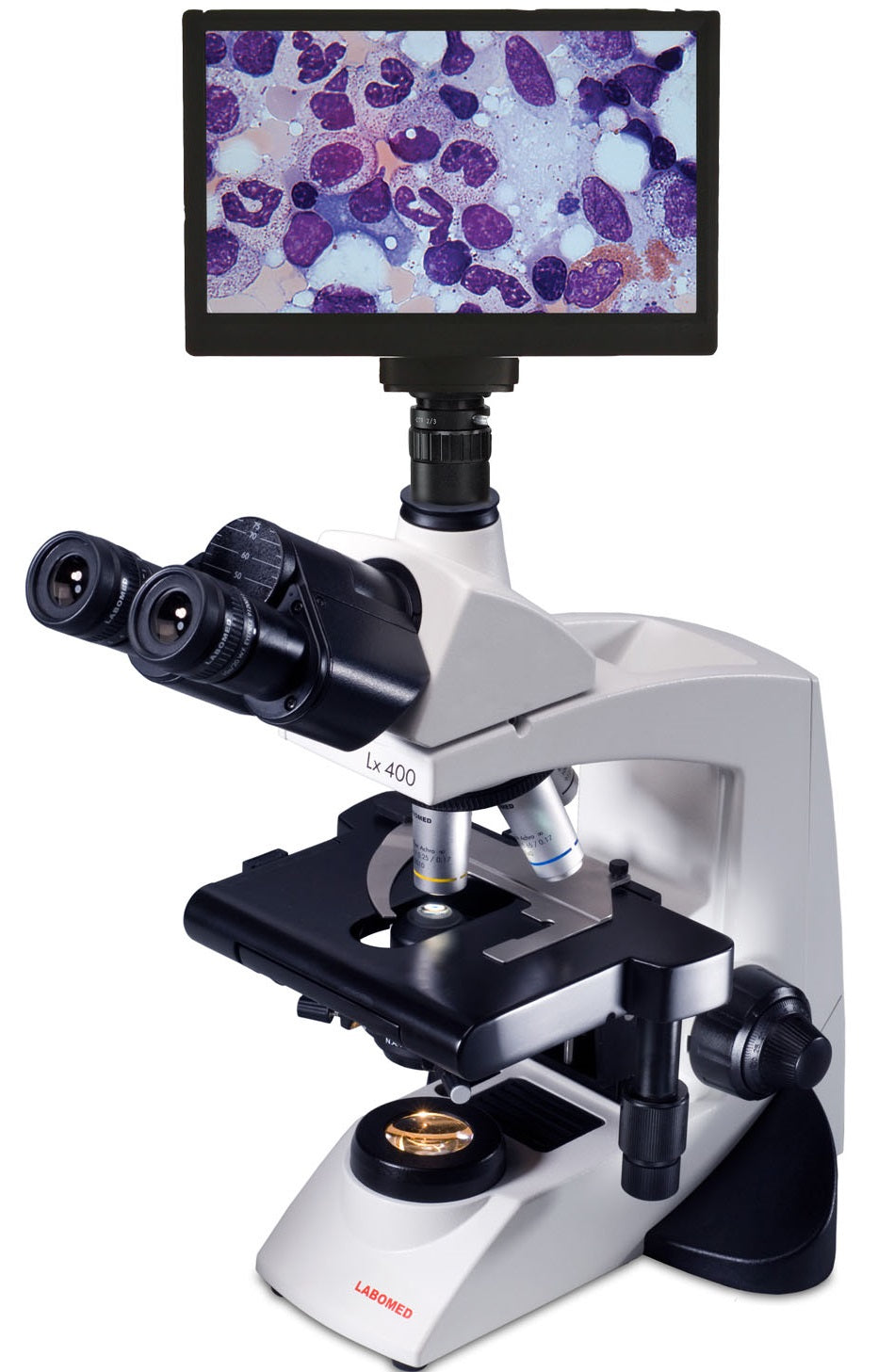

This Labomed Lx400 digital HD microscope package is a complete system ideal for clinical or educational purposes. It includes the Labomed Lx400 microscope, c-mount adapter, and HD camera with or without the 11.6" HD retina display screen. The microscope has a trinocular head with a pair of 10x eyepieces which provide a large 20mm field of view. The quadruple reversed nosepiece comes equipped with RP infinity corrected DIN Plan Achromatic 4x, 10x, 40x, and 100 oil objectives. The mechanical stage is rackless so there are no parts that stick out! The condenser is a 1.25 N.A. fully focusable condenser with iris diaphragm. The rechargeable LED illumination eliminates the need to change the bulb!

You have the option to purchase this with or without the 11.6" HD retina display screen as pictured. The camera included in this system can output HDMI to a screen or USB to a computer. Purchasing this with the screen makes it an all-in-one streamlined solution. You can use your own screen or computer off to the side. Even if purchased with a screen you can output to your own screen, or USB to a computer. When using the camera in HDMI output mode a mouse is included and on-board software will pop up on the screen allowing you to adjust the camera settings, capture images / videos, replay them, and more. If you take advantage of the free software in USB mode you can capture images / videos, do annotations, measurements, extended depth of focus, stitching, and more!



Microscope Specifications
Head: Siedentopf Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm & c-mount adapter
Eyepieces: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Mechanical stage: Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder
Condenser: Sub stage Abbe condenser NA 1.25. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination

Rechargeable LED Illumination

Warranty: 5 Year Mechanical 1 Year Electrical
 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

This Labomed Lx400 digital HD microscope package is a complete system ideal for clinical or educational purposes. It includes the Labomed Lx400 microscope, c-mount adapter, and HD camera with or without the 11.6" HD retina display screen. The microscope has a trinocular head with a pair of 10x eyepieces which provide a large 20mm field of view. The quadruple reversed nosepiece comes equipped with RP infinity corrected DIN Plan Achromatic 4x, 10x, 40x, and 100 oil objectives. The mechanical stage is rackless so there are no parts that stick out! The condenser is a 1.25 N.A. fully focusable condenser with iris diaphragm. The rechargeable LED illumination eliminates the need to change the bulb!

You have the option to purchase this with or without the 11.6" HD retina display screen as pictured. The camera included in this system can output HDMI to a screen or USB to a computer. Purchasing this with the screen makes it an all-in-one streamlined solution. You can use your own screen or computer off to the side. Even if purchased with a screen you can output to your own screen, or USB to a computer. When using the camera in HDMI output mode a mouse is included and on-board software will pop up on the screen allowing you to adjust the camera settings, capture images / videos, replay them, and more. If you take advantage of the free software in USB mode you can capture images / videos, do annotations, measurements, extended depth of focus, stitching, and more!



Microscope Specifications
Head: Siedentopf Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm & c-mount adapter
Eyepieces: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Mechanical stage: Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder
Condenser: Sub stage Abbe condenser NA 1.25. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination

Rechargeable LED Illumination

Warranty: 5 Year Mechanical 1 Year Electrical
 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
Labomed Lx400 Brochure
